13

Base Station ES-600

リアパネル

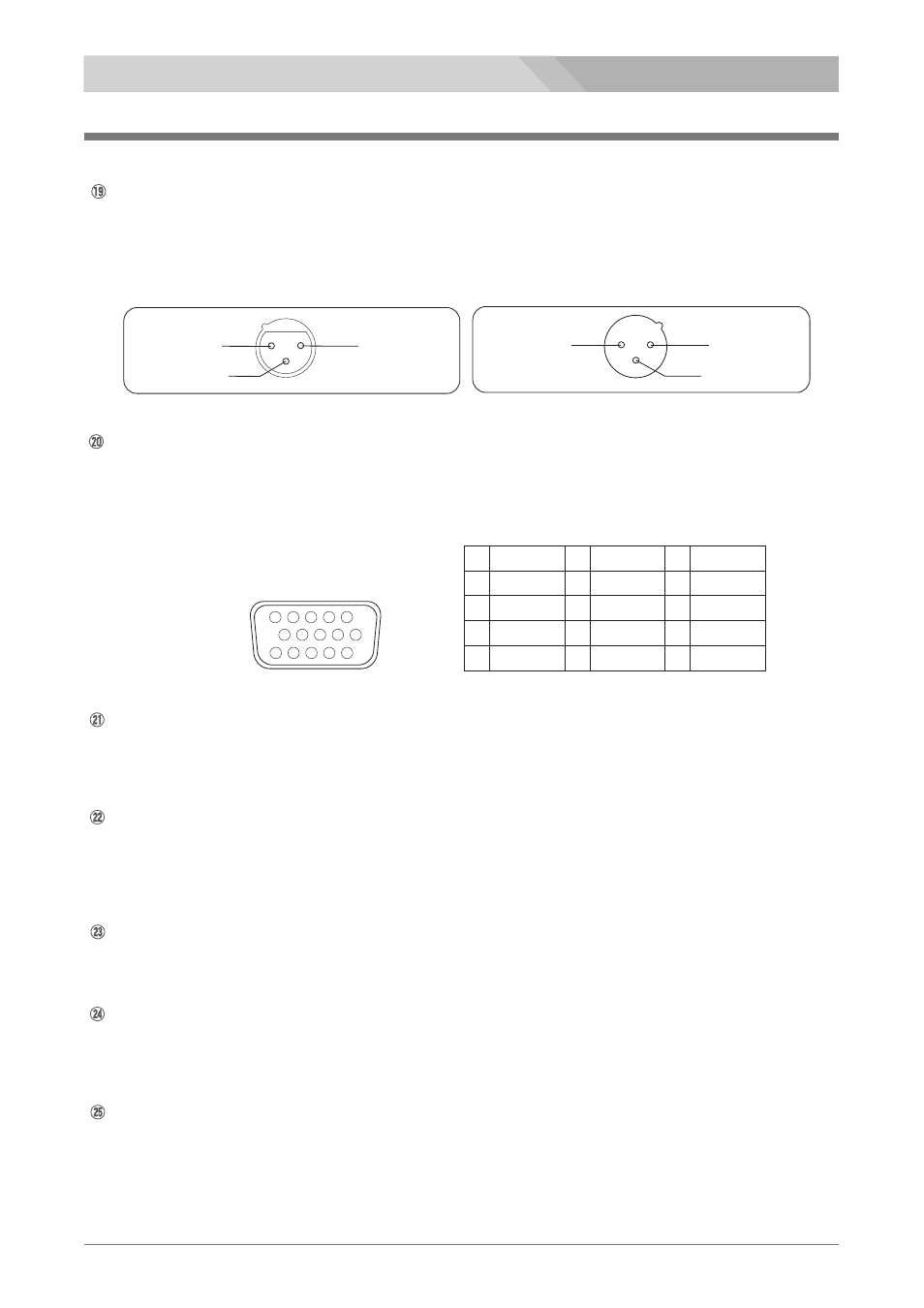

Rear panel

EXT LINE (2W I/O) connectors (XLR 3-pin, female and male)

TALLY EXT LINE (4W I/O) IN/OUT connectors (D-sub 15-pin, female)

LANC connector (φ2.5 mini-jack)

REMOTE connector (8-pin)

AC IN connector

FAN

EXT. AUDIO IN connector (φ3.5 mini-jack)

Connect to an external 2-wire intercom line.

2Wインターカムラインに接続します。

XLR 3-pin,male

1PIN : GND

2PIN : HOT

3PIN : COLD

Pin assignment XLR 3-pin,female

1PIN : GND

2PIN : HOT

3PIN : COLD

Used for the tally signal input/output and for the connection to an external 4-wire intercom line.

タリー信号の入出力、4Wインターカムラインへの接続に使用します。

1

2

3

4

5

6

7

8

9

TALLY 1

TALLY 2

TALLY 3

TALLY 4

TALLY 5

10 GND

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

15 14 13 12 11

D-sub 15-pin connector

(female)

pin assignment

Connect to an LANC remote controller with the cable supplied with the remote controller.

LANC リモコンに接続します。

Connect to the Sony remote controller RM-B750, B150 with the cable supplied with the remote controller.

Sony 製リモコン RM-B750,B150 にリモコン付属のケーブルで接続します。

Connect to the AC 100V power supply with the supplied AC power cable.

AC 100V 電源に接続します。

Works when the POWER switch is on.

電源スイッチ on のとき動作します。

Input an external audio signal. It can be output from the EXT. AUDIO OUT connector of the Camera

Adaptor ES­300.

外部オーディオ信号を入力します。この信号はカメラアダプタ DS-260 の EXT. AUDIO OUT コネクタから出力できます。

4W OUT H

4W OUT L

4W IN H

4W IN L

GND
