電源の接続
POWER supply connection

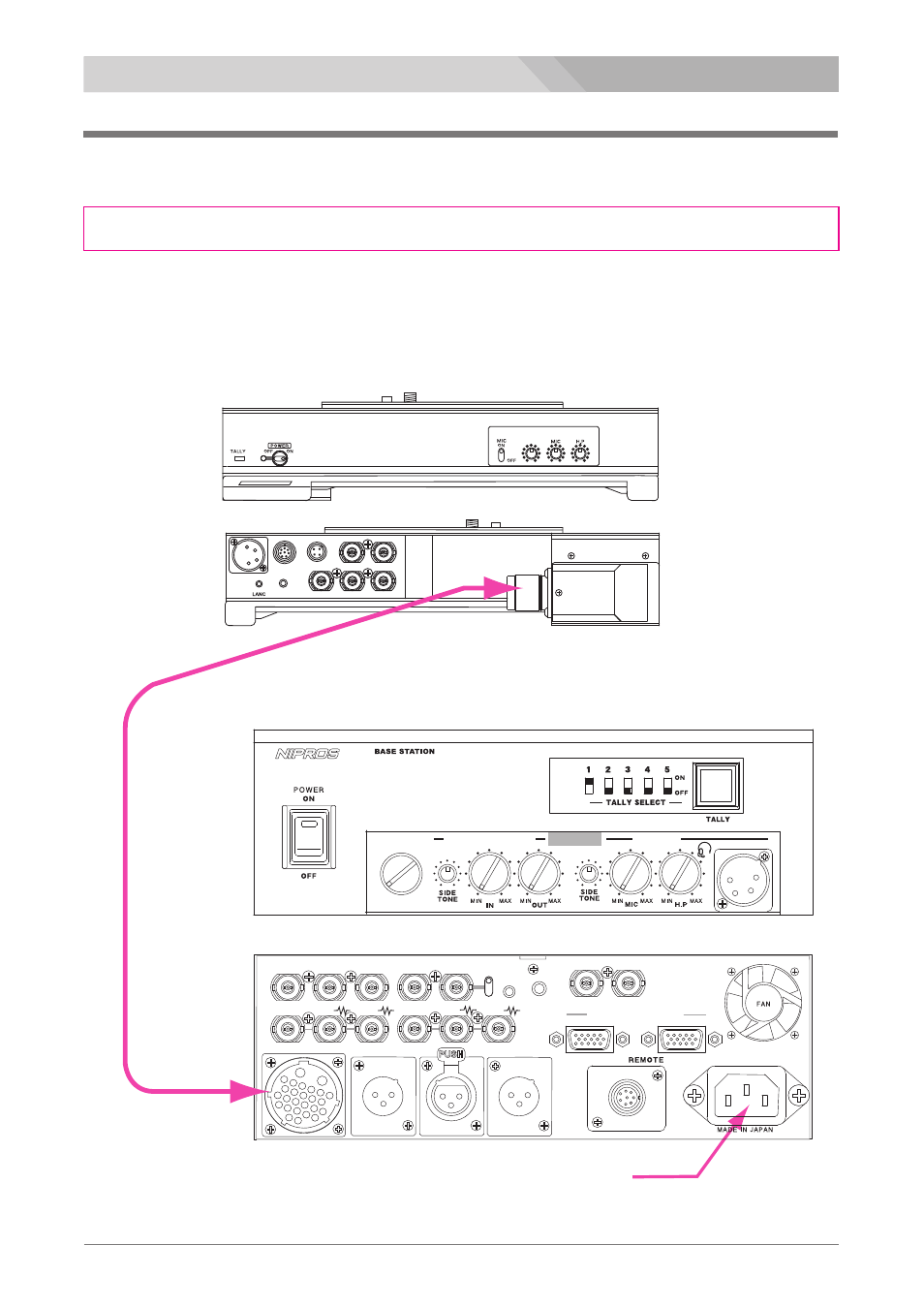

26 ピンケーブルで DS-260 と DS-560 を接続し、DS-560 を AC 電源へ接続します。
Connect both the CAMERA connectors of ESS-300 and ES600 with the 26-pin multi cable, and connect
the AC IN connector of the base station ES600.
1
(26-pin)
(26-pin)
25
50
75
100
EXT LINE (4W I/O)
INTERCOM
HEADSET
DS-560
(AC IN)
AC 100V
CAMERA
AUDIO OUT
EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT
VIDEO OUT
VIDEO IN
AUX
LANC
TC OUT
EXT.
AUDIO IN
SDI IN
OUT 1
OUT 2
OUT 1
OUT 2
SDI RET IN
TC IN
RET IN
TALLY EXT LINE (4W I/O)
IN
OUT
Y
Pb
Pr
AC IN
INTERCOM
SIDE
TONE
CAMERA ADAPTOR
DS-260
The DC power to ES300 is supplied from the base station ES-600 via the 26-pin multi-cable.
Multi−core Studio System NIPROS ES−300 & ES−600
ES-300
ES-600
DC power supply to ES-300 :
