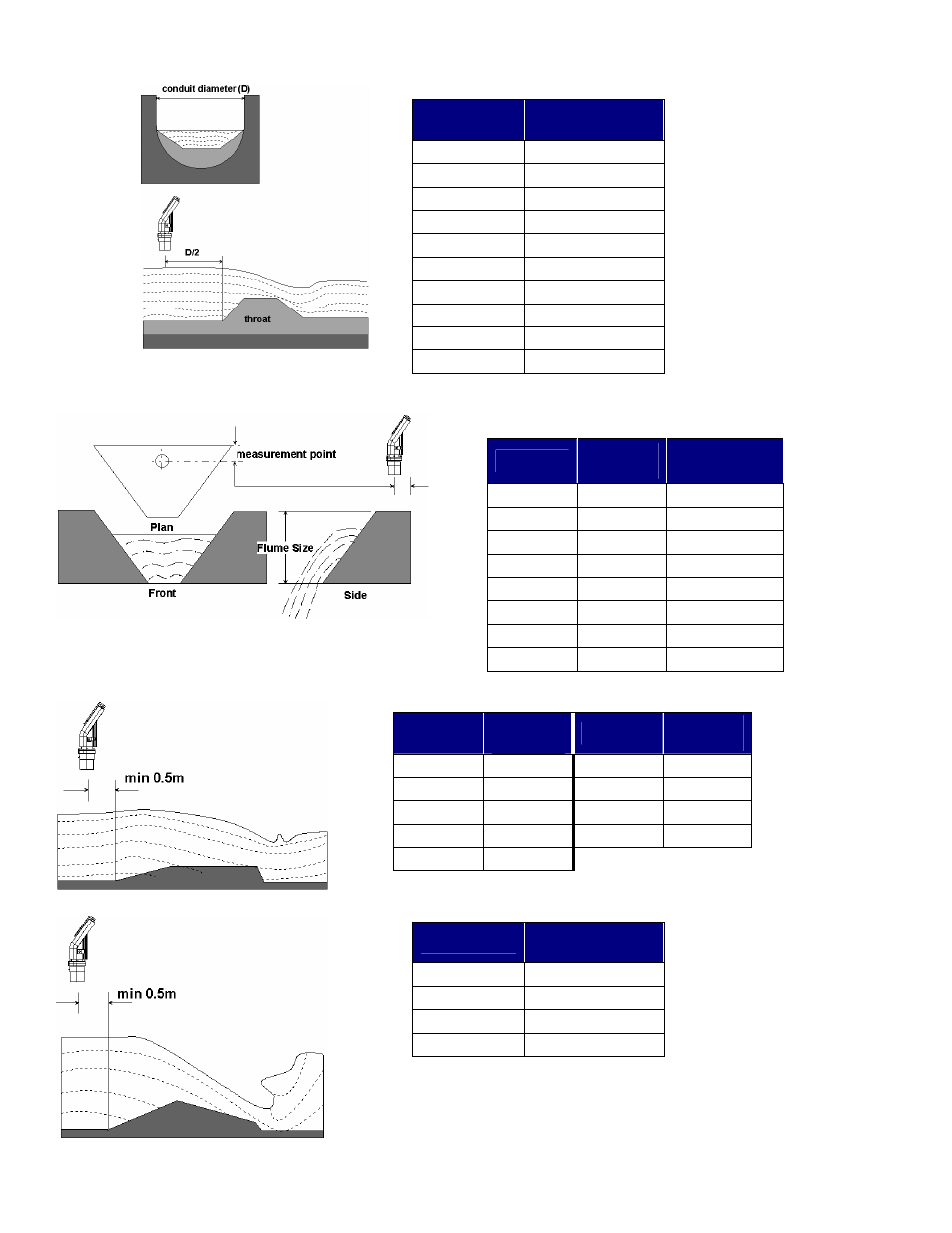

Type 7 (X) – Palmer-Bowlus Flume

Type 8 (X) – H-Flume

Type 9 (X) – Neyrpic-Venturi Flume / Long Base Weir

Code (FF)

Conduit

Diameter (in)

01

6

02

8

03

10

04

12

05

15

06

18

07

21

08

24

09

27

10

30

Code (FF)

Flume

Size (in)

Measurement

Point (cm)

01

6

5

02

9

7

03

12

9

04

18

14

05

24

18

06

30

23

07

36

28

08

54

41

Code (FF)

Flume

Type

Code (FF)

Flume

Type

01

1253AX

06

1253C

02

1253AY

07

1253D

03

1253AZ

08

1253E

04

1253A

09

1253F

05

1253B

Code (FF)

Conduit

Diameter (in)

10

1245A

11

1245B

12

1245C

13

1245D
