Function 00.16 (22mA Error Signal)
This function allows you to define if “Near Zone” and “Lost Echo” are allowable errors, and if the result is a 22mA output.
The default has the display and 22mA turned on for these errors:

Near Zone – Whenever the fluid level is within the Dead Zone. The display will show

F.F.F.F

Lost Echo – Whenever the echo is lost, or the measurement results exceed the tank height, or when a returned

echo is not received. The display will show

E.E.E.E

You can choose to enable or disable the 22mA current output as follows:

d000 – Disable

E000 – Enable (default)

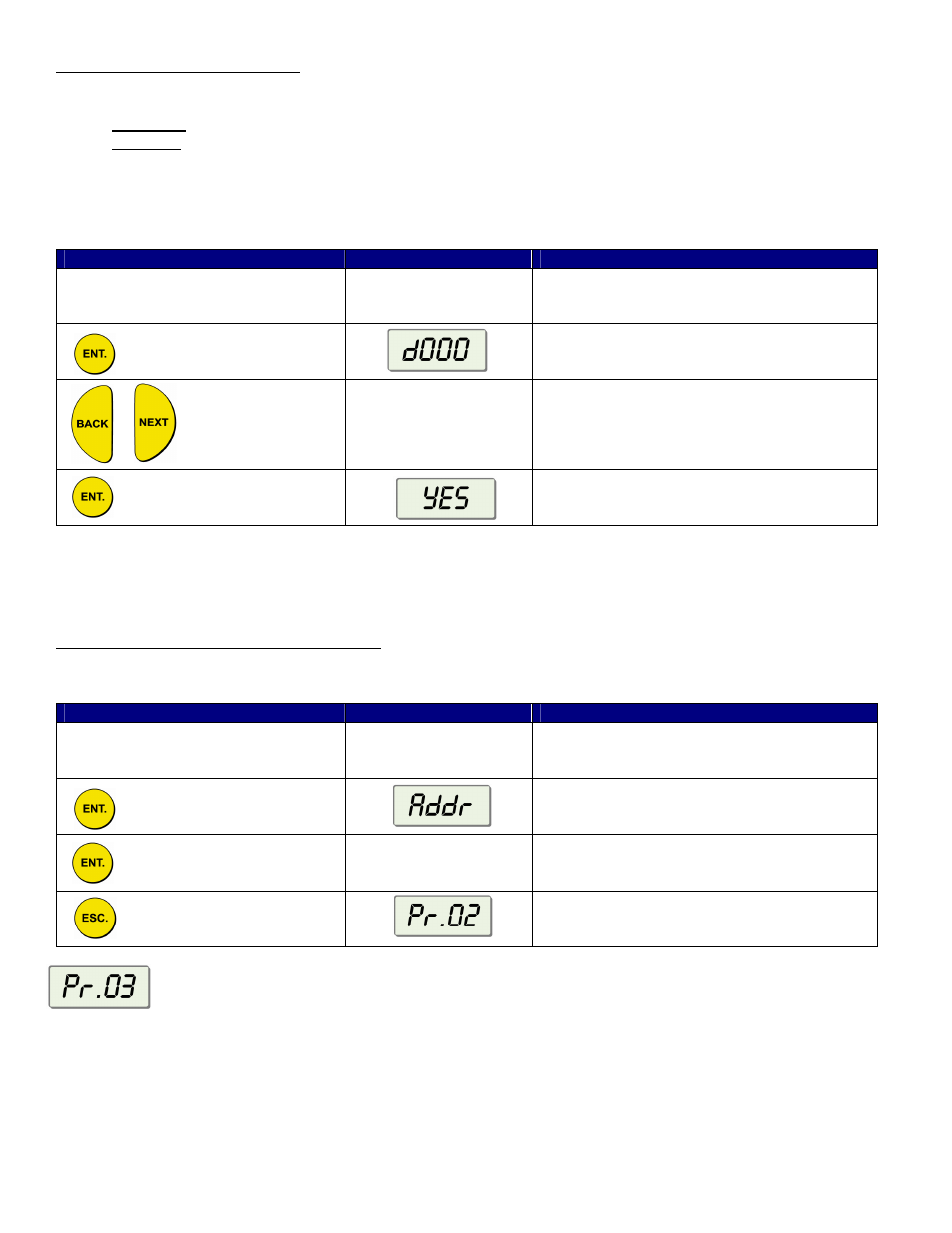

Press / Action

Display

Description

00.16

00.16

00.16

00.16

Enter 00.16 in place of Tank Height

Indicates that the transmitter is set for Disable




or

d000, E000

d000, E000

d000, E000

d000, E000

Used to toggle between the modes

Saves this entry, and returns to

Pr.02


When the 22mA error signal is disabled, the following current outputs will be displayed:

When the transmitter is set to Level or Flow, then F.F.F.F will indicate 20mA, and E.E.E.E will indicate 4mA.

When the transmitter is set to Distance, then F.F.F.F will indicate 4mA, and E.E.E.E will indicate 20mA.

Function 00.17 (Checking the Version Number)
This function is helpful during troubleshooting. Knowing the software version will allow Kenco Technical Support to assist
you better.

Press / Action

Display

Description

00.1

00.1

00.1

00.17

7

7

7

Enter 00.17 in place of Tank Height

For Example:

4.090

4.090

4.090

4.090

Displays the Version Number. Pressing the
“NEXT” button will display the value in
Hexadecimal.

Returns to

Pr.02



Blocking Interfering Signals


The

Pr.03 program enables you to locate and store up to six interfering signals (false echoes) in the SmartSonic memory.

This avoids obstructions such as, a tank agitator, internal ladder, other sensors mounted on the side wall, etc. and prevent
them from interfering with the measurement of the vessel’s contents. This program can only be run with the vessel empty.
