E-flite Extra 300 32e ARF Assembly Manual



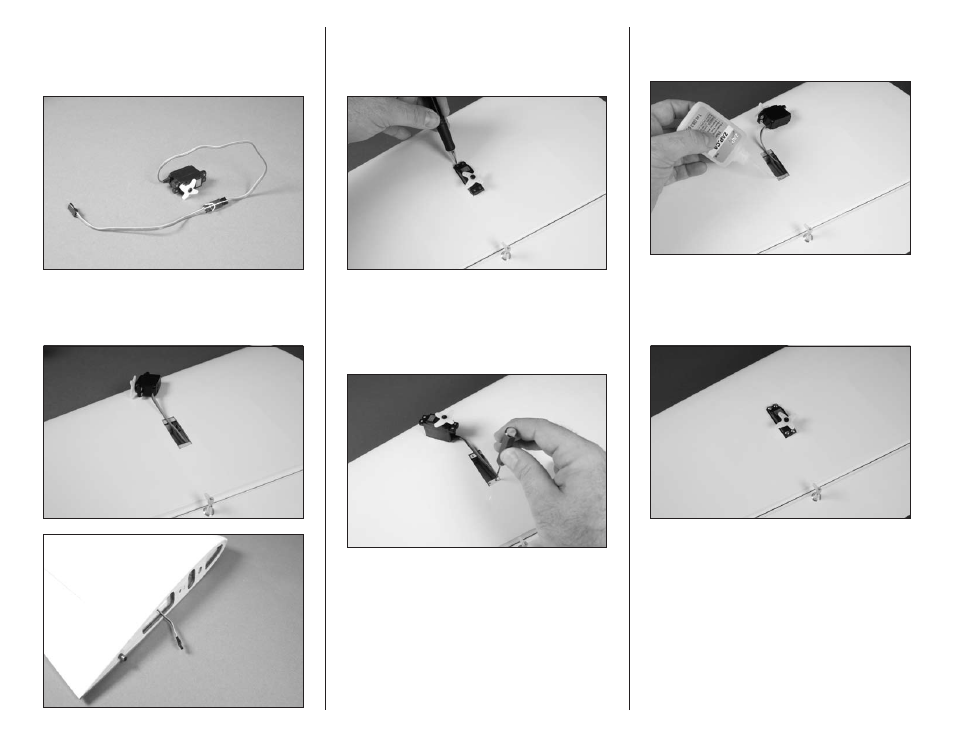

5. Secure a 6-inch (152mm) servo extension to the

aileron servo lead using string or a commercially

available connector. This will keep the servo and

lead from disconnecting inside the wing.



6. Insert the extension into the opening for the

aileron servo. Guide the extension through the

wing and out of the wing root as shown.



7. Position the servo in the servo opening. Make

sure it is centered and not touching the sides of the

opening. Use a pencil to mark the locations for the

servo mounting screws.



8. Move the servo and use a pin vise with a 1/16-

inch (1.5mm) drill bit to drill the holes for the

aileron servo mounting screws. Use care not to

accidentally drill through the covering on the top of

the wing.



9. Apply 2–3 drops of thin CA in each of the holes

to harden the surrounding wood. This will make the

screws more secure when they are installed.



10 Use the screws provided with the servo to

secure it in the wing. Note that the output of

the servo faces to the aileron. Use a #1 Phillips

screwdriver to tighten the screws.
