4 E-flite Extra 300 32e ARF Assembly Manual
Aileron Installation
Required Parts
Wing panel with aileron (right and left)
CA hinge (10 total)
Required Tools and Adhesives
Pin vise T-pins
Ruler Drill bit: 1/16-inch (1.5mm)
Thin CA Hobby knife with #11 blade

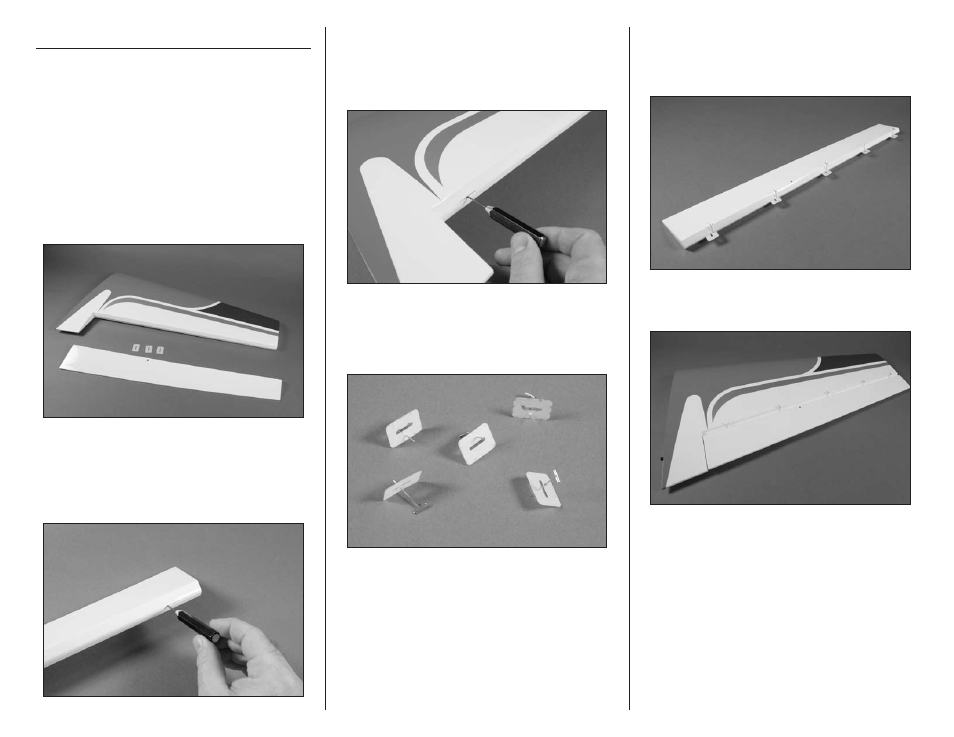

 1. Locate one of the wing panels. Separate the
aileron from the wing. Remove the hinges and set
them aside.
 2. Use a pin vise and 1/16-inch (1.5mm) drill bit
to drill a hole in the center of each of the hinge
slots in the aileron. Note that there are five (5)
slots, even though only three (3) hinges were
removed in the previous step.
 3. Use a pin vise and 1/16-inch (1.5mm) drill bit
to drill a hole in the center of each of the hinge
slots in the wing. Note that there are five (5) slots,
even though only three (3) hinges were removed in
the previous step.
 4. Place a T-pin in the center of each of the hinges
as shown. You will need to prepare five (5) hinges
in this step. The additional hinges have been
supplied with your model.
 5. Insert the hinges in the slots of the aileron.
The T-pins will keep the hinges centered so they
are positioned equally in the aileron and wing
when installed.
 6. Position the aileron by sliding the hinges into the
slots in the wing.
