26 E-flite Extra 300 32e ARF Assembly Manual

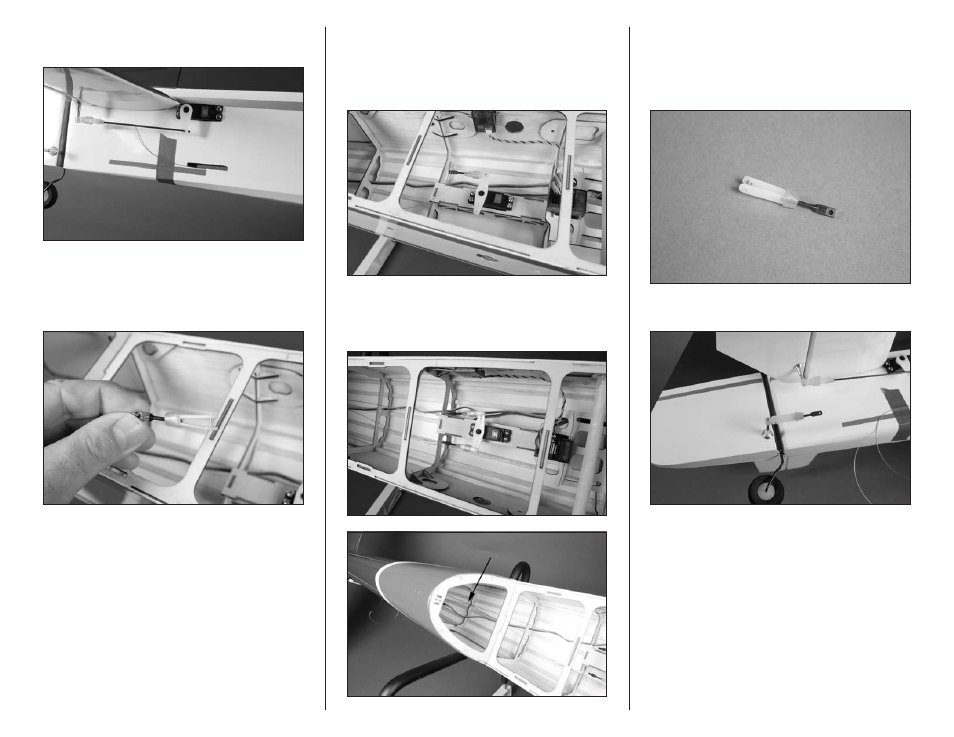

 8. Use low-tack tape to keep the cable from
accidentally falling into the fuselage.
 9. Slide a clevis retainer on a nylon clevis. Hold the
cable fitting with pliers to thread the clevis on the
fitting. The end of the fitting should just be visible
between the forks of the clevis.
 10. Remove the stock servo horn from the rudder
servo using a #1 Phillips screwdriver. Install
a heavy-duty servo horn on the servo so it is
perpendicular to the rudder servo centerline.
 11. Check that the cable is not tangled in any of
the formers or the elevator servo wires. It must be
a straight shot to the rudder servo. The cable will
connect to the servo arm on the opposite side as
the rudder control horn.
 12. Repeat Steps 2 through 11 (excluding Step 10)
to run the remaining rudder cable. Note that the
cables cross inside the fuselage.
 13. Slide a clevis retainer on a nylon clevis. Hold
the cable fitting with pliers while threading the
clevis on the fitting. Thread the clevis on far enough
so the threads of the fitting are almost visible
between the forks of the clevis.
 14. Attach the clevis to the rudder control horn.
