28 E-flite Extra 300 32e ARF Assembly Manual

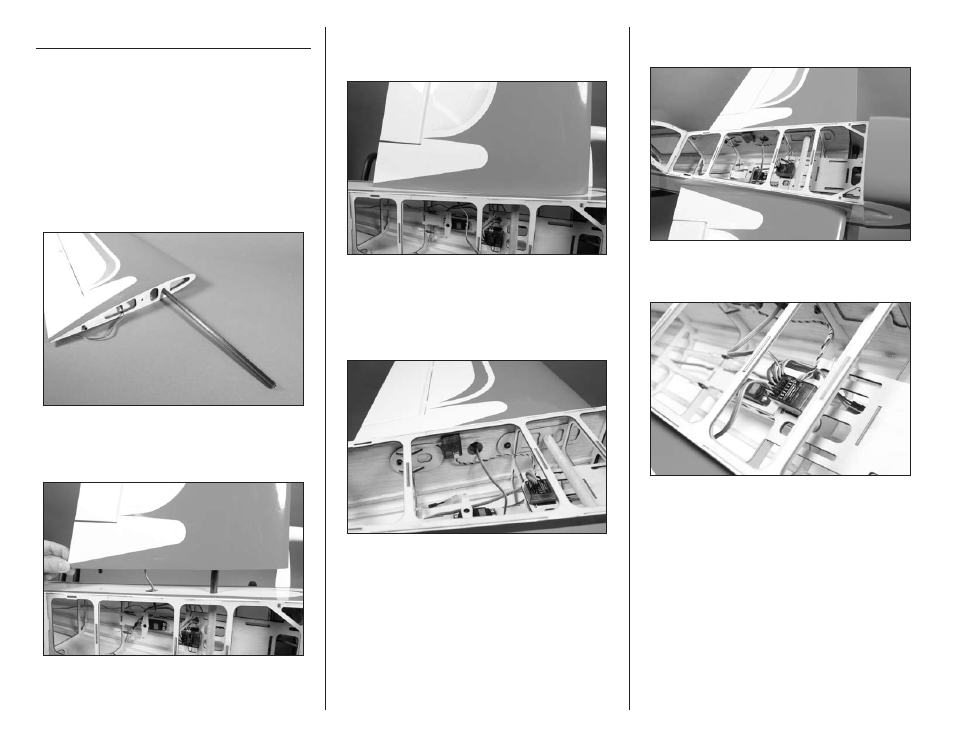

Wing Installation
Required Parts
Fuselage assembly Wing panel (right and left)
Carbon wing tube #4 washer (2)
4-40 x 1-inch socket head screw (2)
Required Tools and Adhesives
Ball driver: 3/32-inch
 1. Slide the carbon wing tube in one of the wing
panels. It will only fit in so far, so only slide it in as
far as it will easily slide.
 2. Slide the tube into the fuselage. Make sure to
guide the servo lead from the aileron servo into the
fuselage as well.
 3. Slide the wing tightly against the fuselage. The
rear anti-rotation pin will fit into the fuselage to
keep the wing from rotating.
 4. Use a 4-40 x 1-inch socket head screw and #4
washer to secure the wing to the fuselage. Use a
ball driver to tighten the screw. Use of a ball driver
is highly suggested as the screw can not be easily
accessed directly with a standard hex wrench.
 5. Repeat Steps 2 through 4 to attach the
remaining wing panel to the fuselage.
 6. Plug the aileron servos into the correct ports of
the receiver.
