25 E-flite Extra 300 32e ARF Assembly Manual
Rudder Pull-Pull Cable Installation
Required Parts
Fuselage assembly Rudder cable (2)
Cable fitting (4)
Cable crimp (4)
Nylon clevis (4) Clevis retainer (4)
Radio system Heavy-duty servo horn
Required Tools and Adhesives
Low-tack tape Crimping tool or pliers
Side cutters Hobby knife with #11 blade
Phillips screwdriver: #1

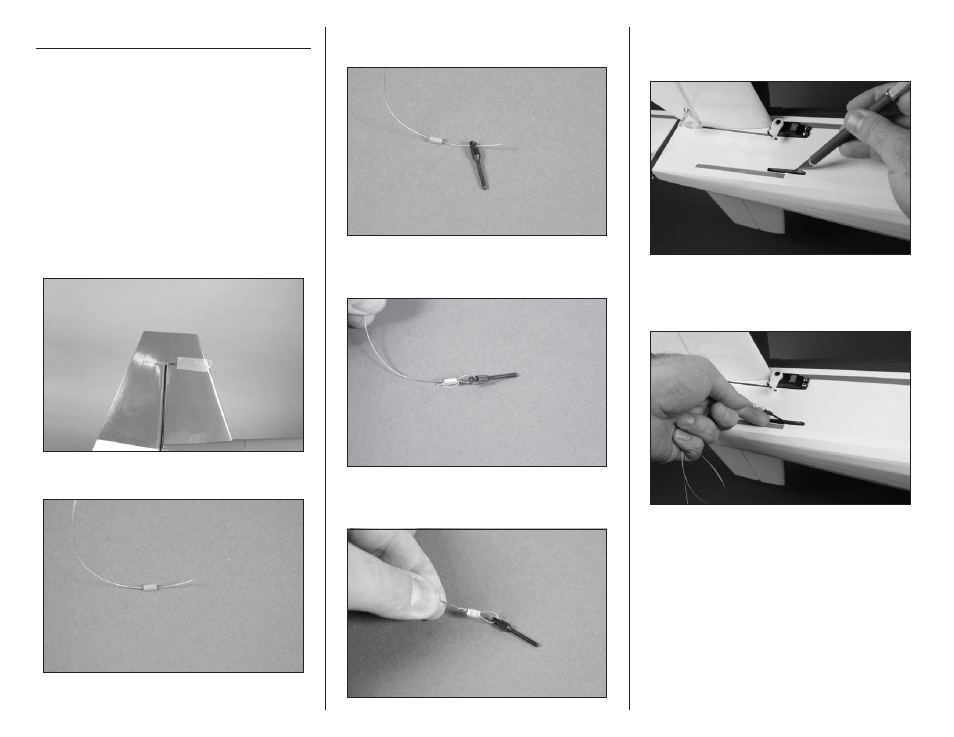

 1. Using low-tack tape to keep the rudder centered
when installing the rudder cables will make the
installation much easier.
 2. Slide a crimp on one end of a rudder cable.
 3. The cable then goes through the hole in the
cable fitting as shown.
 4. Pass the cable back through the crimp, then loop
the cable through the crimp again.
 5. Use a crimping tool or pliers to secure the crimp
to the cable.
 6. Use a hobby knife with a #11 blade to
remove the covering from the fuselage for the
cable to pass through.
 7. Insert the end of the rudder cable with the
fitting into the fuselage through the hole in the
side of the fuselage.
