15 E-flite Extra 300 32e ARF Assembly Manual

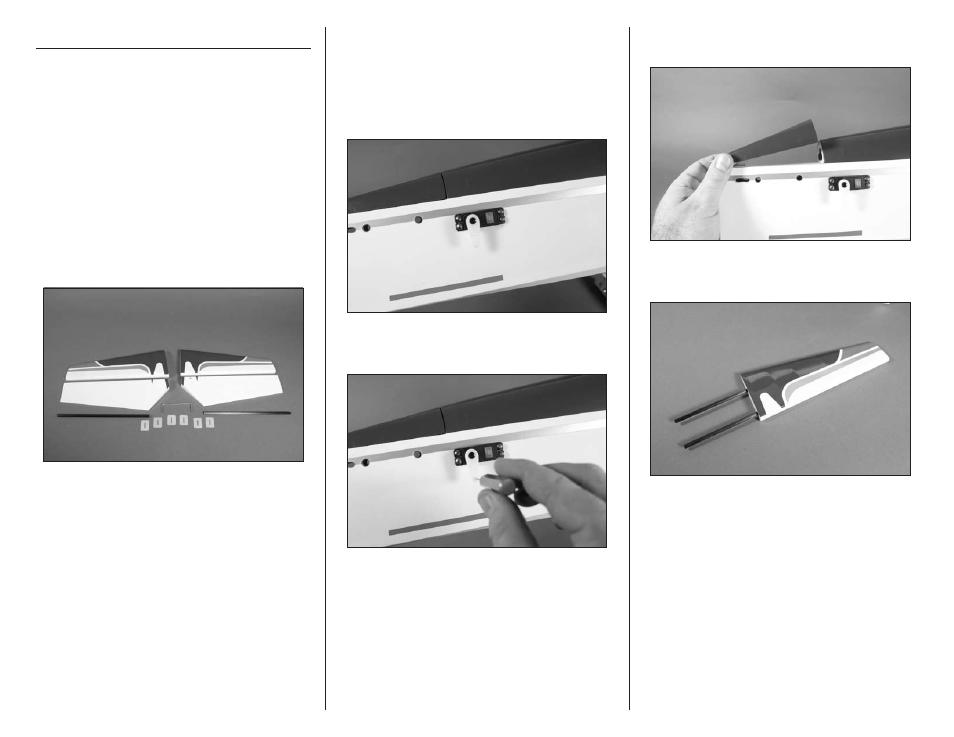

Stabilizer Installation
Required Parts
Fuselage assembly Heavy-duty servo horn
Elevator and stabilizer assembly
Required Tools and Adhesives
30-minute epoxy Hobby knife with #11 blade
Mixing cup Mixing stick
Epoxy brush Paper towel
Rubbing alcohol Felt-tipped pen
Pin vise Drill bit: 5/64-inch (2mm)
Side cutters Phillips screwdriver: #1
 1. Disassemble the elevator and stabilizer assembly.
Make sure to place the parts nearby so they can be
used in the next two sections of the manual.
 2. Use a #1 Phillips screwdriver to remove the
stock servo arm from the elevator servo. Install a
heavy-duty servo arm on the elevator servo so it
is perpendicular to the servo centerline. Use side
cutters to remove the arm that faces upward on the
servo so it doesn’t interfere with the operation of
the servo.
 3. Use a pin vise with a 5/64-inch (2mm) drill bit
to enlarge the outer hole of the elevator servo arm.
 4. Carefully remove the fin fairing from the
fuselage. Set the fin fairing aside at this time.
 5. Slide the two carbon tubes into one of the
stabilizer halves.
