10 E-flite Extra 300 32e ARF Assembly Manual
Matching the colors between the ESC and motor
when they are connected will result in the correct
motor direction if using all E-flite components.

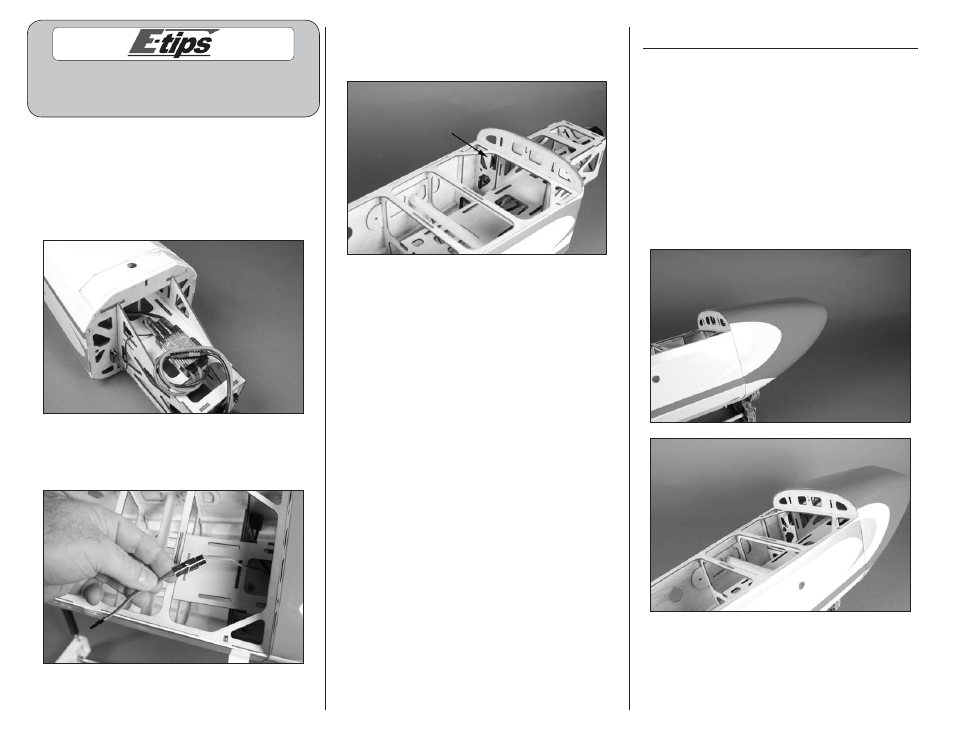

 4. The speed control is mounted to the bottom
of the battery box using hook and loop tape.
Route the wires for the battery and servo
connection into the fuselage. Connect the leads
for the motor to those on the motor at this time.
Make sure these leads do not interfere with the
operation of the motor.
 5. Secure a 3-inch (76mm) servo extension to
the lead from the speed control using string or a
commercially available connector.
 6. Mount the switch from the speed control to the
fuselage as shown. Use a #1 Phillips screwdriver to
tighten the screws that secure the switch.
Cowling and Spinner Installation
Required Parts
Fuselage assembly Spinner assembly
Cowling
#4 washer (2)
Propeller
4-40 x 1-inch socket head screw (2)
Required Tools and Adhesives
Ball driver: 3/32-inch
Box wrench or open end wrench: 10mm
 1. Fit the cowling to the fuselage. It should overlap
the fuselage as shown.
