A. fitting installation instructions – Watts W100T Twin Alternating Series User Manual
Page 32
32 W100T Twin Alternating Series Softeners
Drawing No.
Order No.
Description
Quantity
1
V3151
W100T Nut 1" Quick Connect
4
2
V3150
W100T Split Ring
4
3
V3105
O-Ring 215
4
4
V4017
T1 Interconnect Fitting
2
4
1
3
2
A. Fitting Installation Instructions:
• Installation fittings are designed to accommodate minor plumbing misalignments, but are not designed to support the weight of a system
or the plumbing.
• Slide nut on first, then the split ring and o-ring.
• Hand tighten the nut only.
The V4017-01 can be used on tanks up to 10” in diameter.
If using 12” diameter tanks or larger V4052 PIPE PVC SCH 80 1-1/4X 20
(36 pieces per box) may be purchased and combined with two V3007-07 W100T FTG 1.25&1.5 PVC SLVNT ASY. The V4052 PIPE
PVC SCH 80 1-1/4X 20 can be cut to the desired length.

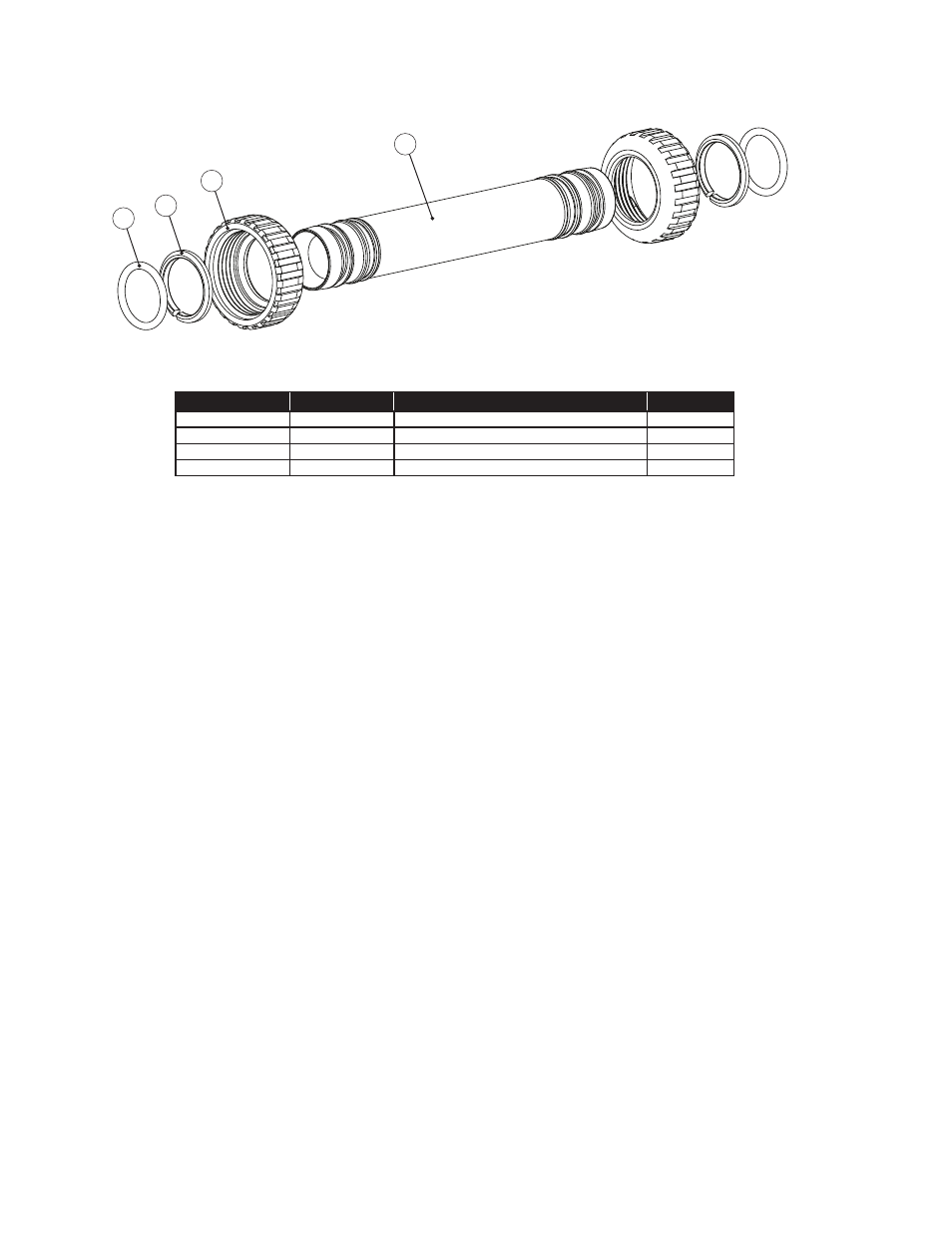

V4017-01 T1 Interconnect Fitting Assembly
