Drain line - 1 – Watts W100T Twin Alternating Series User Manual
Page 31
W100T Twin Alternating Series Softeners
31
Drawing No.
Order No.
Description
Quantity
1
H4615
Elbow Locking Clip
1
2
V3008-02
W100T Drain FTG 1 Straight
1
3*
V3166
W100T Drain FTG Body 1
1
4*
V3167
W100T Drain FTG Adapter 1
1
5*
V3163
0-ring 019
1
6*
V3150
W100T Split Ring
1
7*
V3151
W100T Nut 1” QC
1
8*
V3105
O-ring 215
1
9
V3190-090
W100T DLFC 9.0 gpm for 1
One DLFC must
be used if 1” fitting
is used
V3190-100
W100T DLFC 10.0 gpm for 1
V3190-110
W100T DLFC 11.0 gpm for 1
V3190-130
W100T DLFC 13.0 gpm for 1
V3190-150
W100T DLFC 15.0 gpm for 1
V3190-170
W100T DLFC 17.0 gpm for 1
V3190-200
W100T DLFC 20.0 gpm for 1
V3190-250
W100T DLFC 25.0 gpm for 1
* Can be ordered as a set. Order number V3008-02, description: W100T Drain FTG 1 Straight.

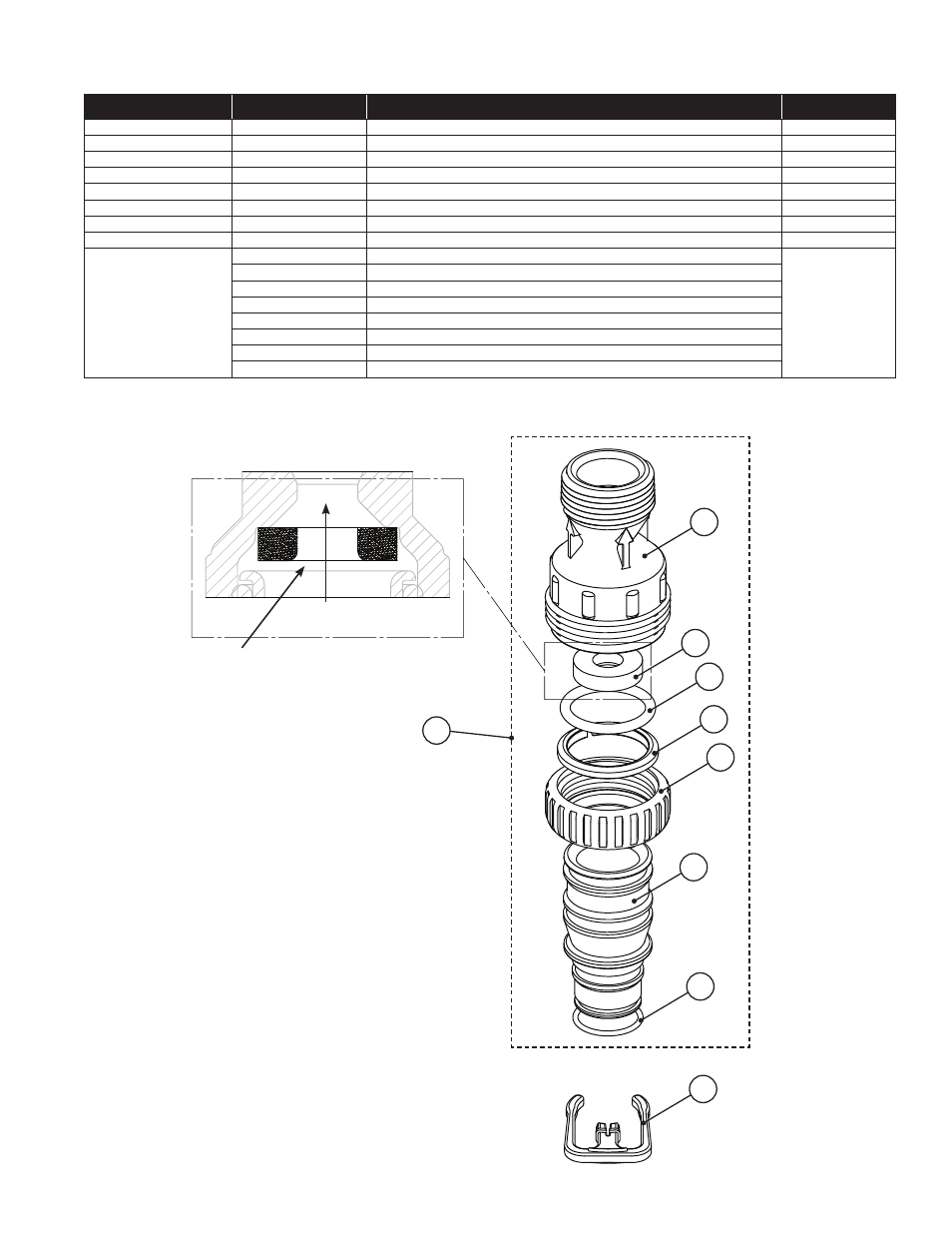

Drain Line - 1”
Water
Flow
Proper DLFC orientation
directs water flow towards
the washer face with
rounded edge.
2
3
9
8
6
7
4
5
1
