Watts W100T Twin Alternating Series User Manual
Page 20
20 W100T Twin Alternating Series Softeners

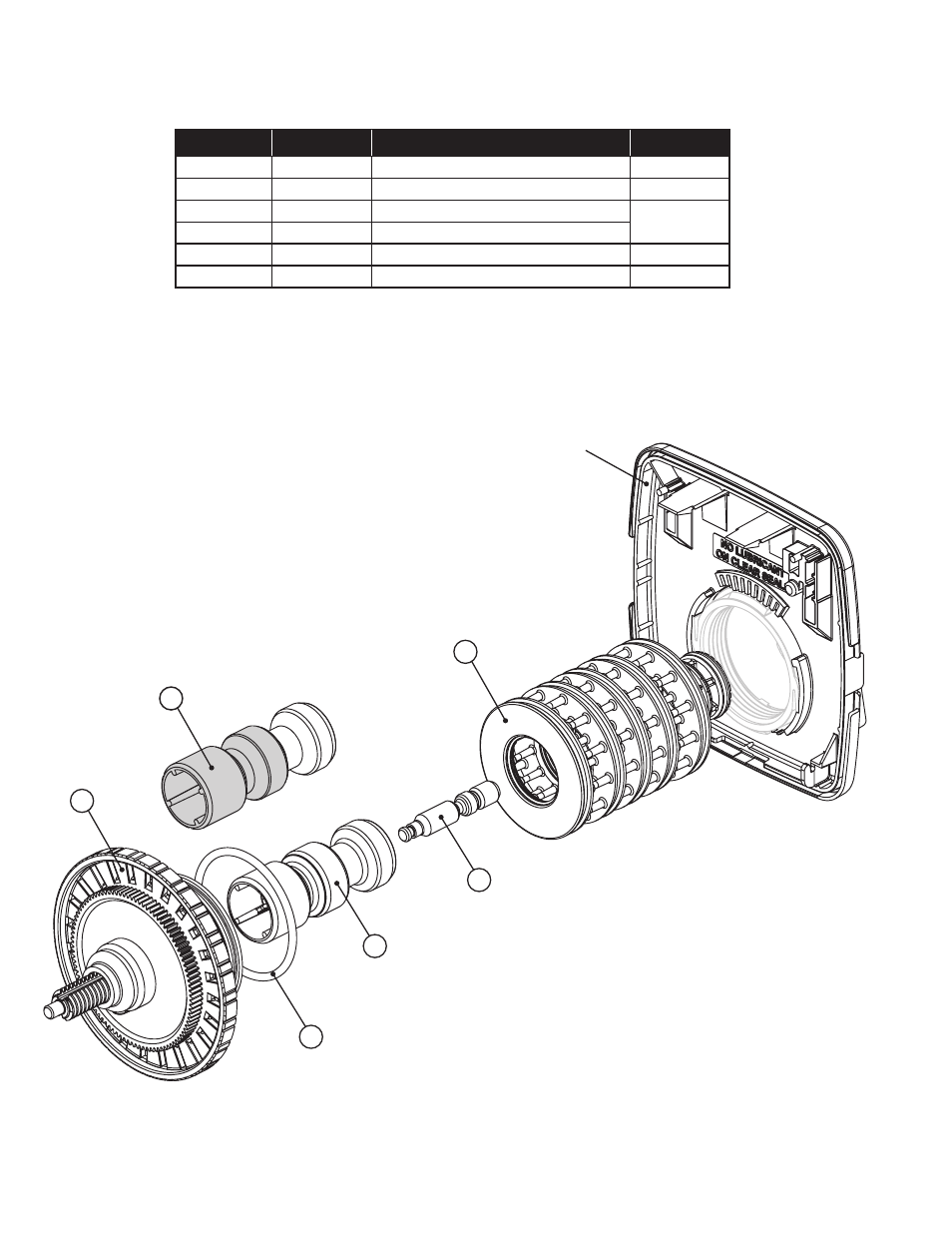

Drive Cap Assembly, Downflow Piston, Upflow Piston, Regenerant
Piston and Spacer Stack Assembly
Drawing No.
Order No.
Description
Quantity
1
V3005
W100T Spacer Stack Assembly
1
2
V3004
Drive Cap ASY
1
3a
V3011*
W100T Piston Downflow ASY
1
3b
V3011-01*
W100T Piston Upflow ASY
4
V3174
W100T Regenerant Piston
1
5
V3135
O-ring 228
1
*V3011 is labeled with DN and V3011-01 is labeled with UP. Upflow option is not applicable to
EA, EE or EI control valves.
NOTE: The regenerant piston is not used in backwash only applications.
1
2
3b
4
3a
5
Refer to programming and Cover Drawing Manual
