W100T Twin Alternating Series Softeners 29

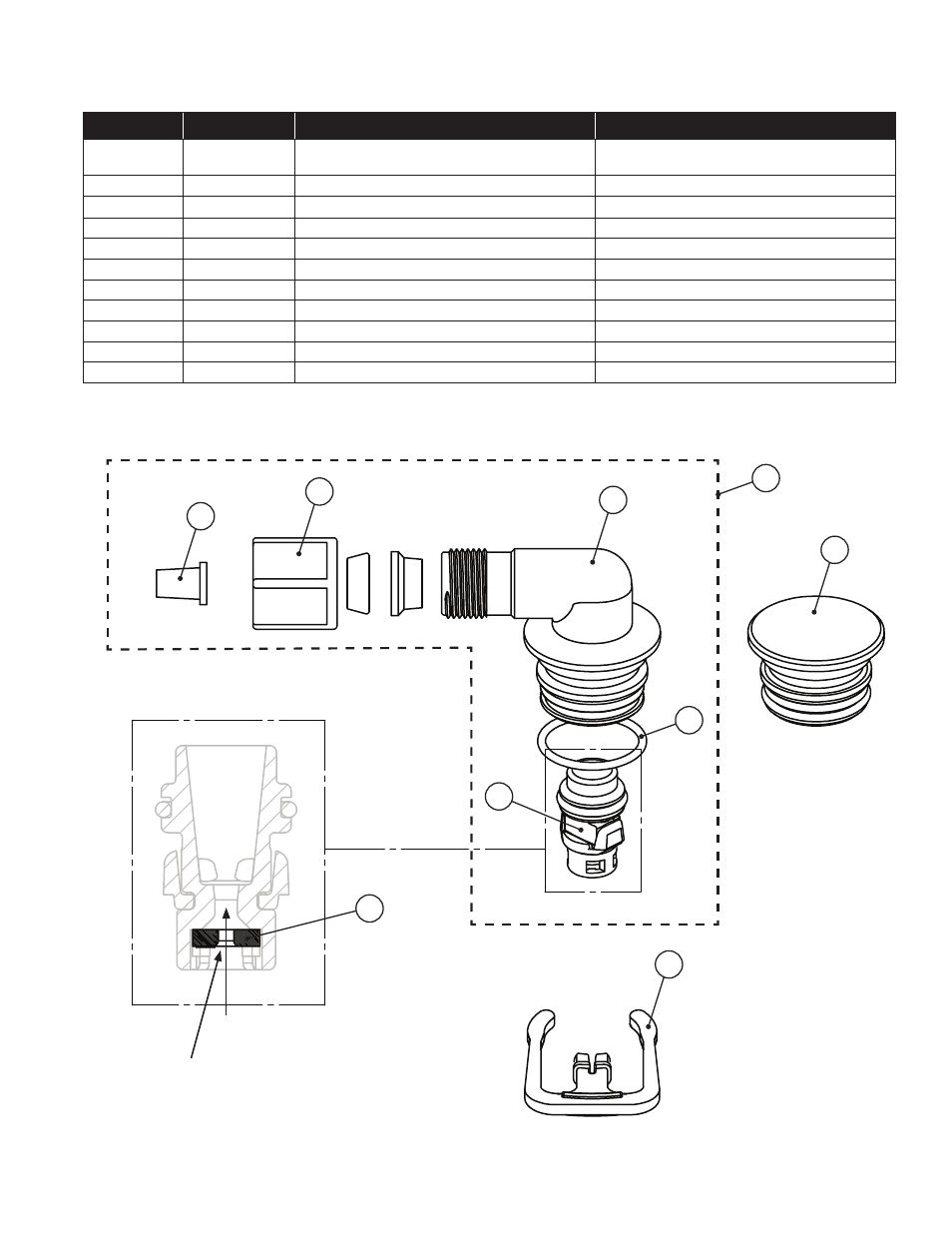

Refill Flow Control Assembly and Refill Port Plug
Drawing No. Order No. Description Quantity
1 V3195-01 W100T Refill Port Plug Asy
This part is required for backwash only
systems
2 H4615 Elbow Locking Clip 1
3 JCP-P-6 Polytube insert 3/8” 1
4 JCPG-6PBLK Nut 3/8” 1
5 H4613 Elbow Cap 3/8” 1
6 V3163 0-ring 019 1
7 V3165-01* W100T RFC Retainer Asy (0.5 gpm) 1
8 V3182 W100T RFC 1
9 V3330-01 W100T Brine Elbow Asy w/RFC 3/8" 1
Not Shown V3552 W100T Brine Elbow Asy w/RFC 1/2" Option
Not Shown H4650 Elbow ½” with nut and insert Option
*Assembly includes V3182 W100T (0.5 gpm) RFC.
1
2
3
4
5
6
7
8
9
Water
Flow
Proper RFC orientation
directs refill water flow
towards the washer face
with rounded edge and text.
