36 PLACING CONDITIONER INTO OPERATION (turning on the
water)

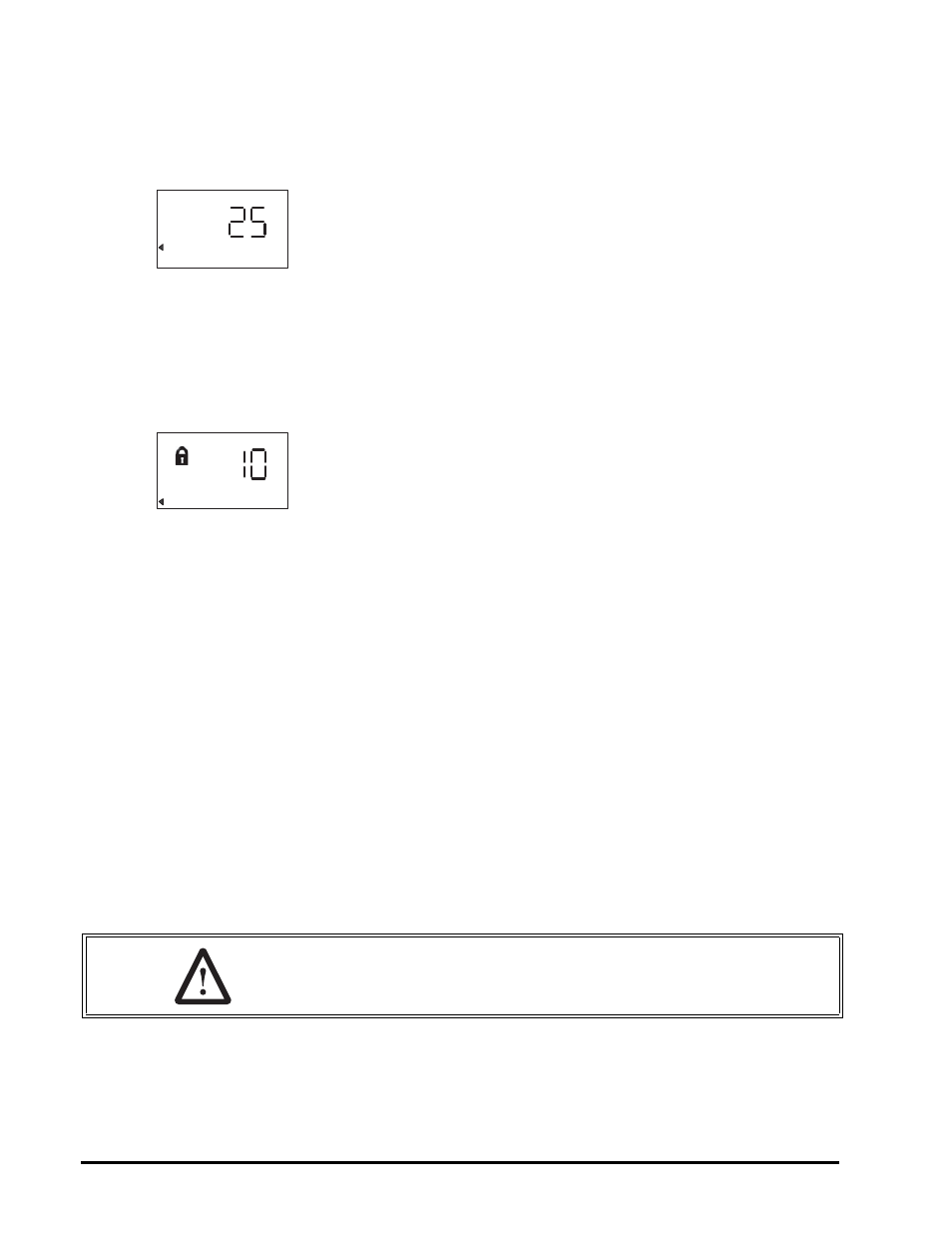

Step 8: Estimated Capacity
•
System capacity is displayed in total kilograins or kilograms of
hardness removed before a regeneration is necessary.
• Value is derived from the system’s resin volume input and salt amount
input.
• The capacity is displayed for information purposes on the 740 control.
It cannot be changed.
• To change capacity on the 760 control, press SET to make the default
capacity flash. Use the UP and DOWN buttons to increment to the
desired capacity.
• Press SET to accept the setting and advance to the next parameter.
If using the 740 control, programming is complete. The control will return
you to the normal operation mode.
Step 9: Enter Hardness (760 Demand Control Only)
•
Enter inlet water hardness at installation site.
• Default hardness setting is 10 grains (ppm for metric).
• To change hardness, press SET to make the setting flash. Use the UP
and DOWN buttons to scroll to the desired hardness.
• Press SET to accept the entered hardness value.
• The control will return you to the normal operation mode.
Initial programming is now complete. The control will return to normal
operation mode if a button is not pushed for 30 seconds.
For system start-up procedure, including: purging the mineral tank,
refilling the regenerant tank, and drawing regenerant, see the system
start-up procedure in the Dealer Installation and Service Manual.
PLACING CONDITIONER INTO OPERATION (turning on the water)
Conditioner and FA Filter Start-Up
After you have performed the previous initial power-up steps, you will
need to place the conditioner into operation. Follow these steps carefully,
as they differ from previous Autotrol valve instructions.
1. Remove the cover from the valve. Removing the cover will allow you
to see that the camshaft is turning, and in which cycle the camshaft is
currently positioned.
2. With the supply water for the system still turned off, position the
bypass valve to the “not in bypass” (normal operation) position.
KG
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Backwash Time
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
WARNING: Do not rotate the camshaft by hand or damage to the unit
may occur. Use the controller to step the camshaft electronically
through the cycles.
