28 DISPLAY ICONS 700 CONTROLLER
Rev A

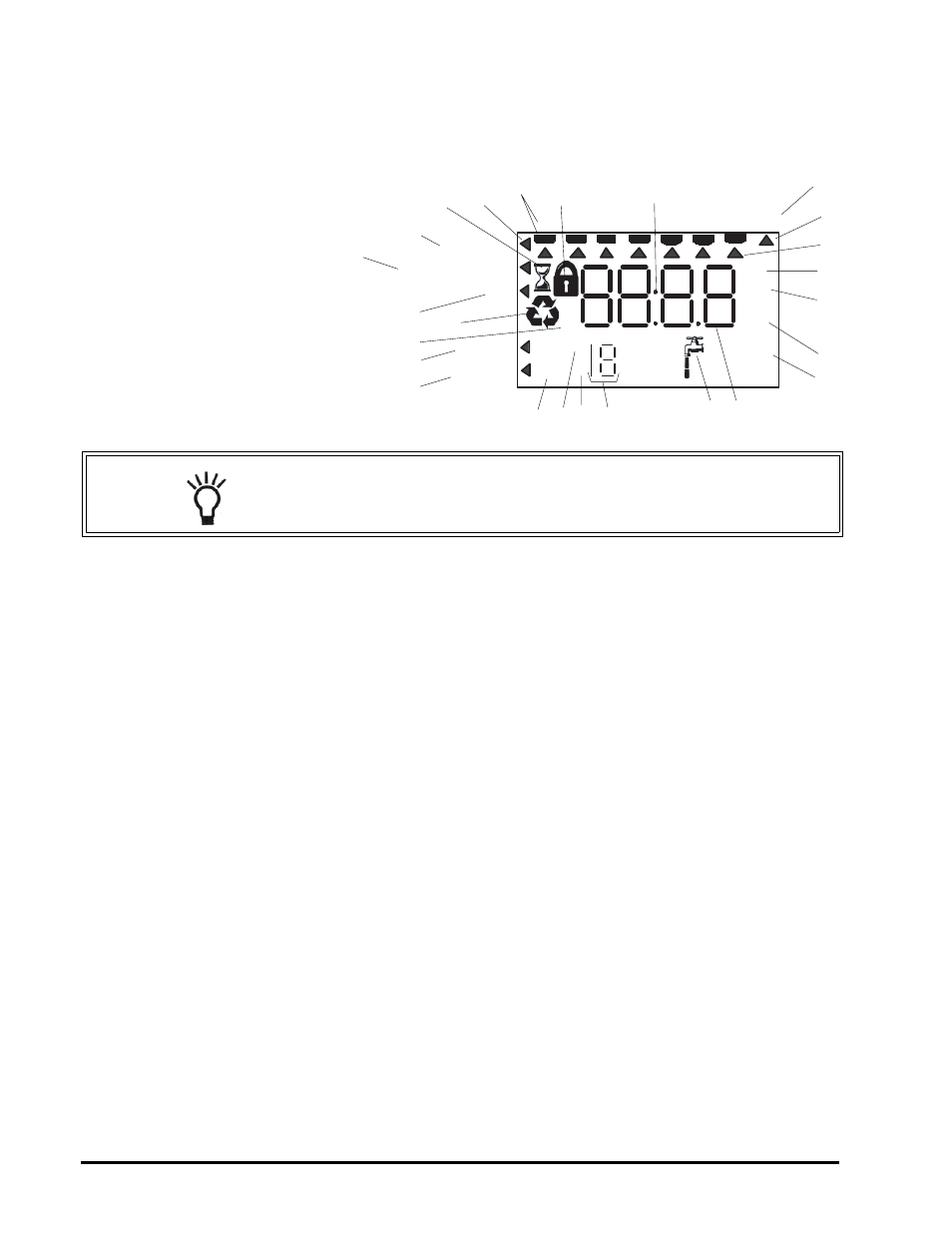

DISPLAY ICONS 700 CONTROLLER
Figure 17
1. Days of the week. The flag immediately below the day will appear
when that day has been programmed as a day the system should
regenerate (used with 7-day timer programming).
2. See #3
3. This cursor is displayed when the days between regeneration are
being programmed (used with .5 to 99 day regeneration
programming).
4. One of these cursors will be displayed to indicate which day will be
programmed into the controller.
5. "PM" indicates that the time displayed is between 12:00 noon and
12:00 midnight (there is no AM indicator). PM indicator is not used if
clock mode is set to 24-hour.
6. When "MIN" is displayed, the value entered is in minute increments.
7. When "Kg" is displayed, the value entered is in kilograms or kilograins.
8. Four digits used to display the time or program value. Also used for
error codes.
9. Colon flashes as part of the time display. Indicates normal operation.
10. Locked/unlocked indicator. In Level I programming this is displayed
when the current parameter is locked-out. It is also used in Level II
programming to indicate if the displayed parameter will be locked
(icon will flash) when controller is in Level I.
11. When "x2" is displayed, a second regeneration has been called for.
12. The recycle sign is displayed (flashing) when a regeneration at the
next time of regeneration has been called for. Also displayed
(continuous) when in regeneration.
PM
MIN
KG x2
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
x100 P
H
C Capacity
Hardness
1
2
3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18
19
20 21 22 23
24
25
NOTE: In normal operation and during programming, only a few of the icons
will actually be displayed.
