LOGIX™ SERIES INSTALLER QUICK-START SHEET 3
Rev A
QU
IC
K
S
T
A
R
T
LOGIX™ SERIES INSTALLER QUICK-START SHEET
Logix Series Controllers
See Determining If You Have a 740 or 760 Control on page 26 to identify
your controller.
740 Controller - Electronic time clock control capable of doing 7-day (day of
week) regeneration, or up to a 99 interval day regeneration. This control will
operate both in a conditioner (softener) or 3-cycle filter mode with the same
controller.
760 Controller - Electronic metered-demand (volumetric) controller which
regenerates based on the water usage of the installation site. A calendar override
is a standard feature on this controller.
The Logix Series will operate on both the 255 and Performa valve body
series.

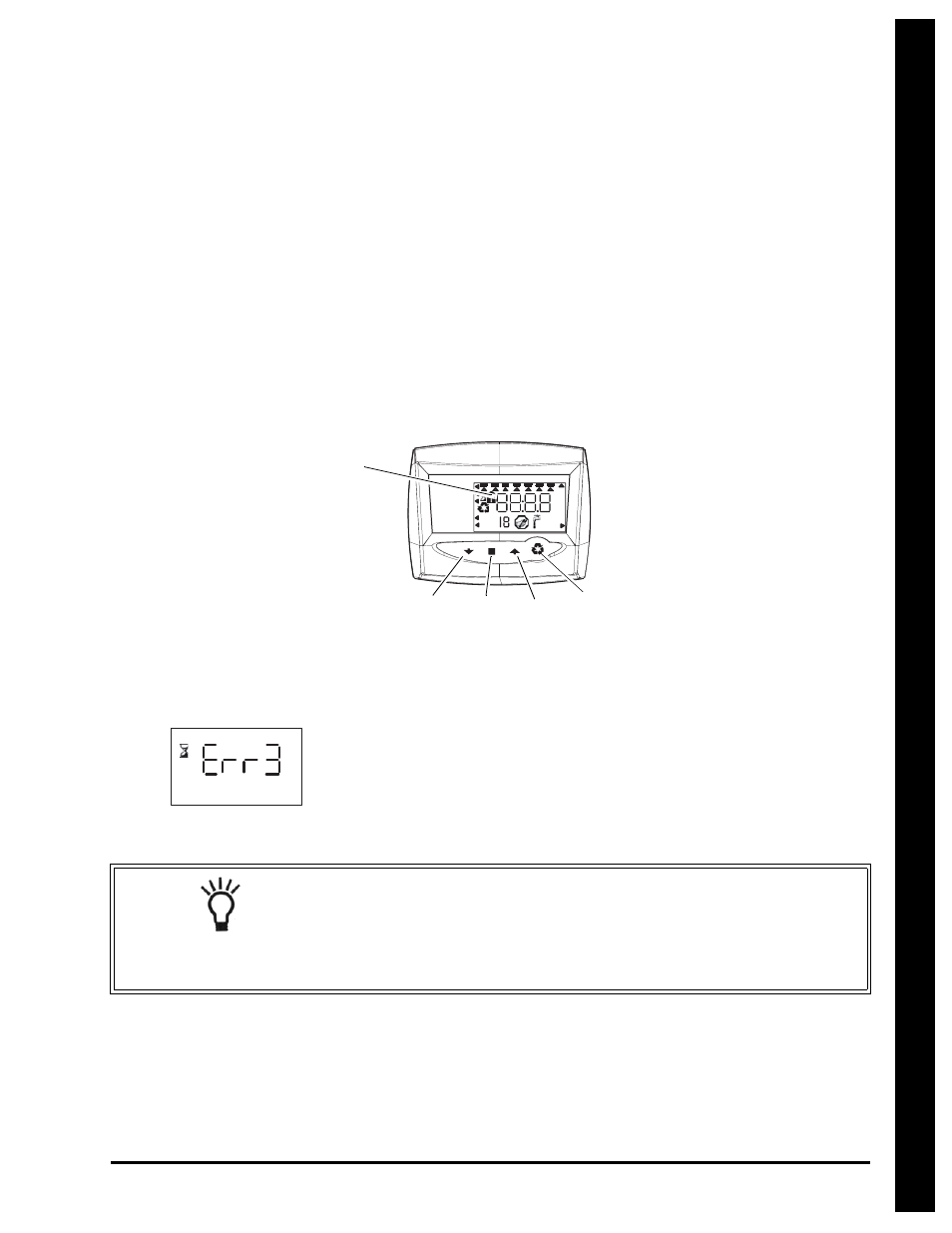

Initial Power-up
Initial Power Up - (CAMSHAFT proceeds to HOME position)
• At initial power-up, the camshaft will need to rotate to the HOME
(in service) position.
• Camshaft may take 1-2 minutes to return to home position.
• Err 3 will be displayed until the camshaft returns to home.
• If more than 2 minutes elapses, verify that the motor is turning the camshaft.
If it is not turning, see the troubleshooting section.
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
LBS
PM
MIN
KG
x100
x2
P
H
C Capacity
Hardness
Manual Regeneration
UP Button
SET Button
DOWN Button
LCD Display
Time & Day
Regen Time & Day
Salt
Capacity
Hardness
SU MO TU WE TH FR SA DAYS
NOTE: The Logix controller features a self-test sequence. At first power-up of
the control, you may see a number such as 1.00, 1.02,1.04, or 2.00, displayed.
This is an indication that the self-test is not completed. To complete the test,
verify that the turbine cable is connected. Blow into the turbine port (valve
outlet) to spin the turbine. The controller will verify that the turbine works and
the self test will finish. Proceed with the initial start up procedure.
