Valve features – Watts Autotrol 263 / 268 (Logix Series) User Manual
Page 12
12
EQUIPMENT INSTALLATION
Rev A

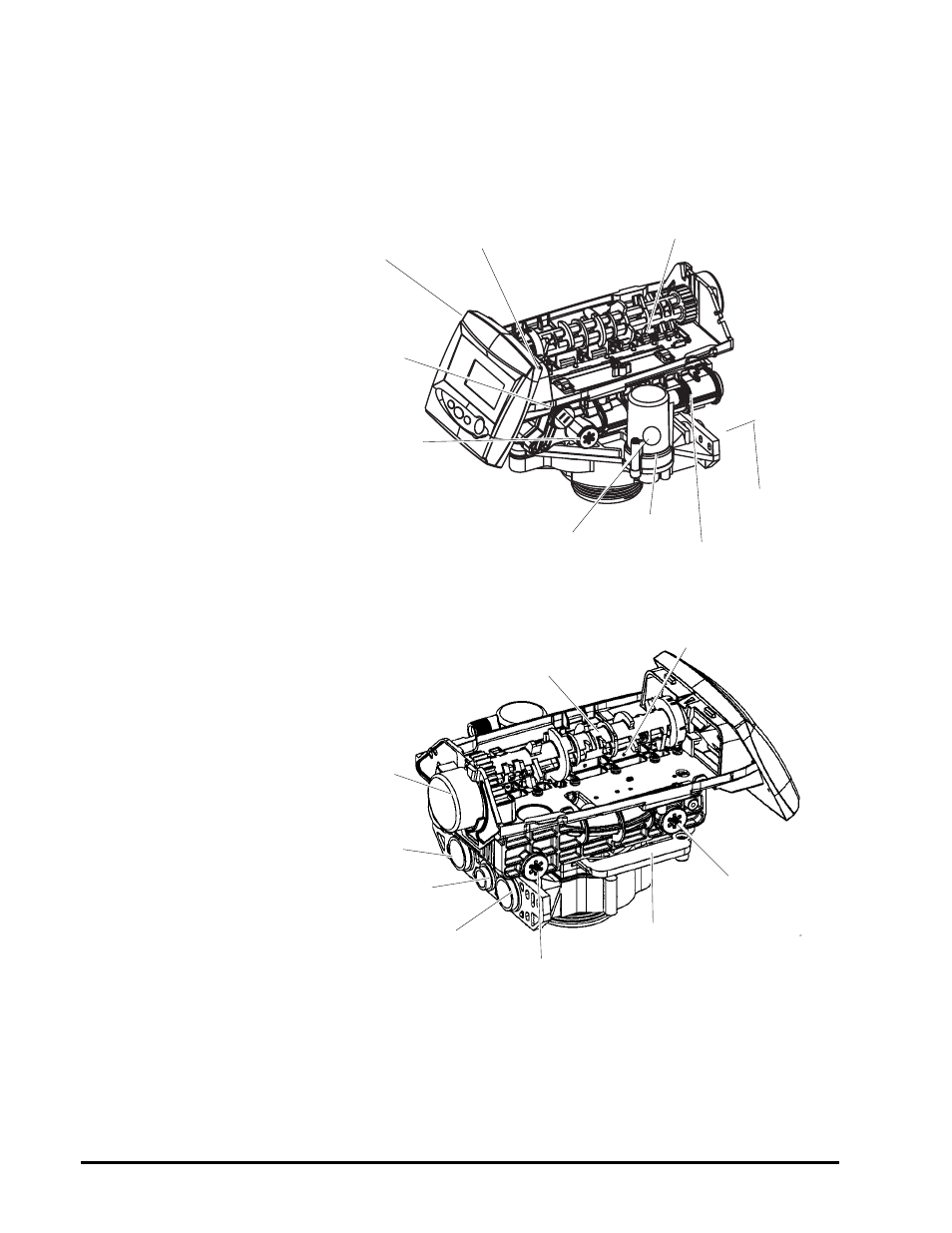

Valve Features
Figure 2
255 Valve Identification
Check Ball
Air Check
Regenerant Tank
Refill Controller
Injector and Cap
Outlet
Inlet
Drain
Backwash
Locking Bar
Injector
Valve Discs
Camshaft
Drain Control
Screen Filter
Manifold
Motor
Optical Sensor
Control Module
Mount
One Piece Valve
Tube Connection
Connection
Disc Spring
Right Side
Left Side
