DISPLAY ICONS 700 CONTROLLER
33
Rev A
Initial Start-up Step-By-Step Instructions
For FA filter applications, please program as normal below. See section
Programming the 700 for 5-Cycle Filter Applications.

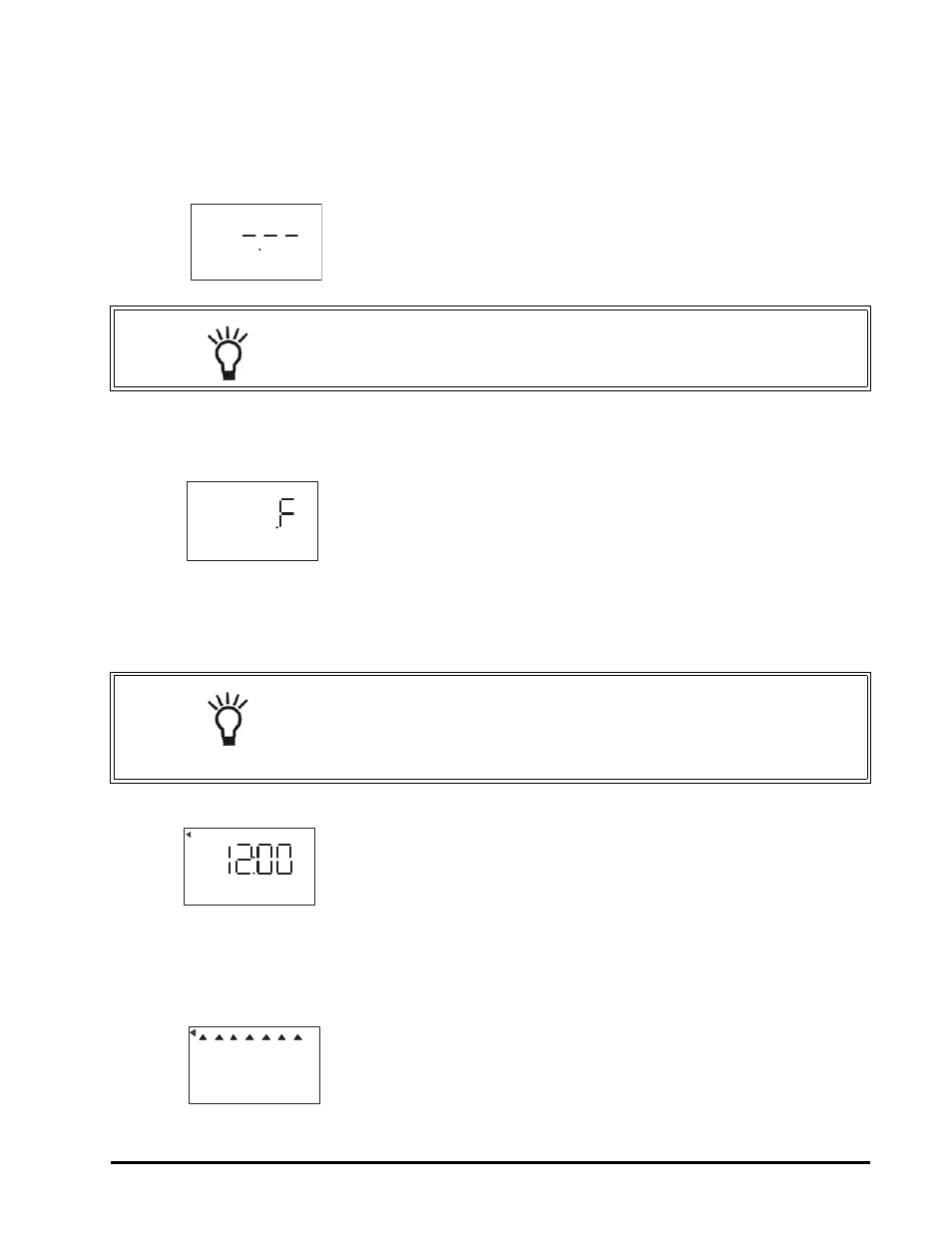

Step 1: Program System Size
This step may have been performed by your system’s OEM manufacturer.
In this case, proceed to step 2.
•
Input system size – media volume (For FA filters, choose your closest
media volume) – in cubic feet or liters.
•
Use UP and DOWN buttons to scroll through resin volume choices.
•
Choose the nearest volume to your actual system size.
•
To choose a 3-cycle filter operation – press DOWN until an “F” is
displayed.
•
Press SET to accept the system size you’ve selected.
•
If incorrect setting is programmed, see “Resetting the Control” section
below.
Step 2: Program Time of Day
•
While “12:00” is blinking, set the correct time of day.
•
Use the UP and DOWN buttons to scroll to the correct time of day.
•
“PM” is indicated, “AM” is not indicated.
•
Press SET to accept the correct time of day and advance to the next
parameter.
Step 3: Set Day of Week
•
Press SET to make the arrow under “SU” flash.
•
Use the UP and DOWN buttons to advance the arrow until it is under
the correct day of week.
•
Press SET to accept and advance to the next parameter.
Time & Day
Regen Time & Day
Salt
SU MO TU
WE TH
FR
SA DAYS
Capacity
Hardness
NOTE:
Capacity is the result of the amount of media in the tank and the salt
setting. The default capacity will be changed by selecting a different
regenerant setting.
Time & Day
Regen Time & Day
Salt
SU MO TU
WE TH
FR
SA DAYS
Capacity
Hardness
3-cycle filter
NOTE:
If the controller was incorrectly set to the wrong valve body, press the
DOWN button and SET button for five seconds to display resin volume in "HO".
Press and hold the SET button for five seconds to reset the controller. Use the
UP or DOWN buttons to increment the display to the correct valve body. Press
SET.
Time & Day
SU MO TU
WE TH
FR
SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt
SU MO TU
WE TH
FR
SA DAYS
Capacity
Hardness
