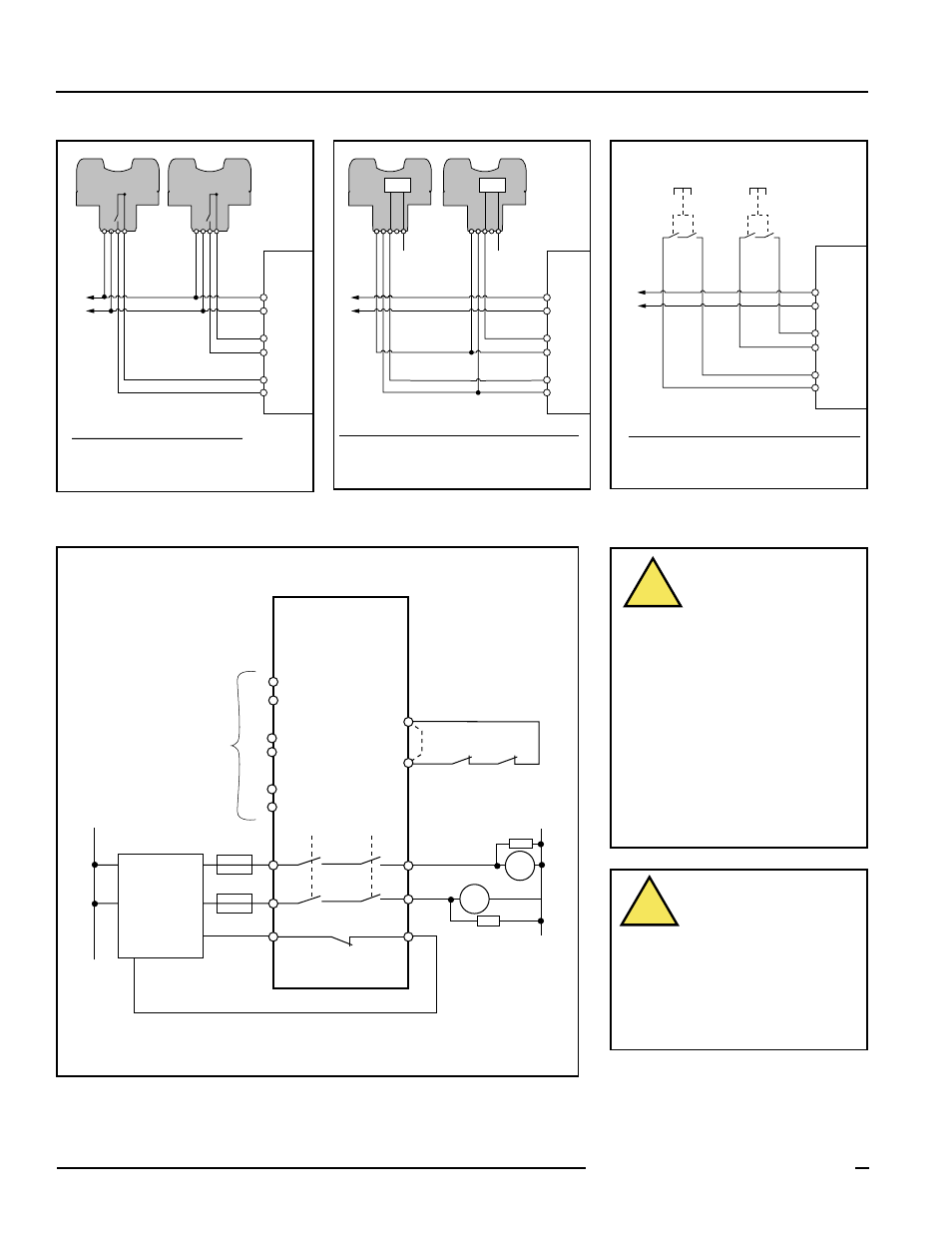

Figure 5a. Type IIIA hookup to two OTB
touch buttons with contact
outputs
Figure 5b. Type IIIA hookup to two OTB
touch buttons with PNP/NPN
outputs
Figure 5c. Type IIIB hookup to two
mechanical push buttons with
contact outputs
OTB2
Brown
Yellow
Yellow
Black
Black
Blue
A1
A2
S13
S14
S23
S24
OTB1
AT-..M-2A
+ –
+ –
Devices
Two OTBA5..
Two OTBB5..
Two OTBVR81..
Power Connection
Model
AT-AM-2A
AT-BM-2A
AT-FM-2A
Supply Voltage
115V ac
230V ac
+24V dc
OTB2
+ –
OTB1
+ –
Brown
Black
Black
Blue
A1
A2
S13
S14
S23
S24
AT-..M-2A
n/c - white
n/c - white
NPN
Sinking
PNP
Sourcing
Solid-state switches must not draw more than 25 mA each
Power Connection
Device
One OTBN6.. and one OTBP6..
One OTBN6.. and one OTBP6..
One OTBN6.. and one OTBP6..
Model
AT-AM-2A
AT-BM-2A
AT-FM-2A
Supply Voltage
115V ac
230V ac
+24V dc
A1
A2
S13
S14
S23
S24
AT-..M-2A
SW2
SW1
Po
we
r C
on
ne
ct
io
n
Devices
Two mechanical switches
Two mechanical switches
Two mechanical switches
Model
AT-AM-2A
AT-BM-2A
AT-FM-2A
Supply Voltage
115V ac
230V ac
+24V ac/dc
�����
�����
��
���
��
�����������������
�����������������
����������������������
��
��
��
��
��
��
��
���������
��
��
��
��
�
�
����
�
����
�
�������
�������
�������
���
���
���
���
�������������������
�
�
�������������������
�����������
������������������������������������������
����������������������������������
������������������������������
��������������������������
�������
�������
Figure 5d. Machine control circuit connections
WARNING ...
Use of Arc
Suppressors
If arc suppressors are
used, they MUST be installed as shown
across the coils of the Machine Primary
Control Elements (MPCEs). NEVER install
suppressors directly across the output
contacts of the DUO-TOUCH Safety
Module. It is possible for suppressors to
fail as a short circuit. If installed directly
across the output contacts of the
DUO-TOUCH Safety Module, a
short-circuited suppressor will create an
unsafe condition which could result in
serious injury or death.
!
WARNING ...
Interfacing
Safety Outputs
Never wire or interface an
intermediate device (e.g., PLC, PES, PC)
that can fail in such a manner that there
is the loss of the safety stop command to
the MPCEs. To do so could result in serious
bodily injury. See page 7, Connection to the
Machine to be Controlled.
!
