page 9
system
configuration
system
configuration
step 8 step 8

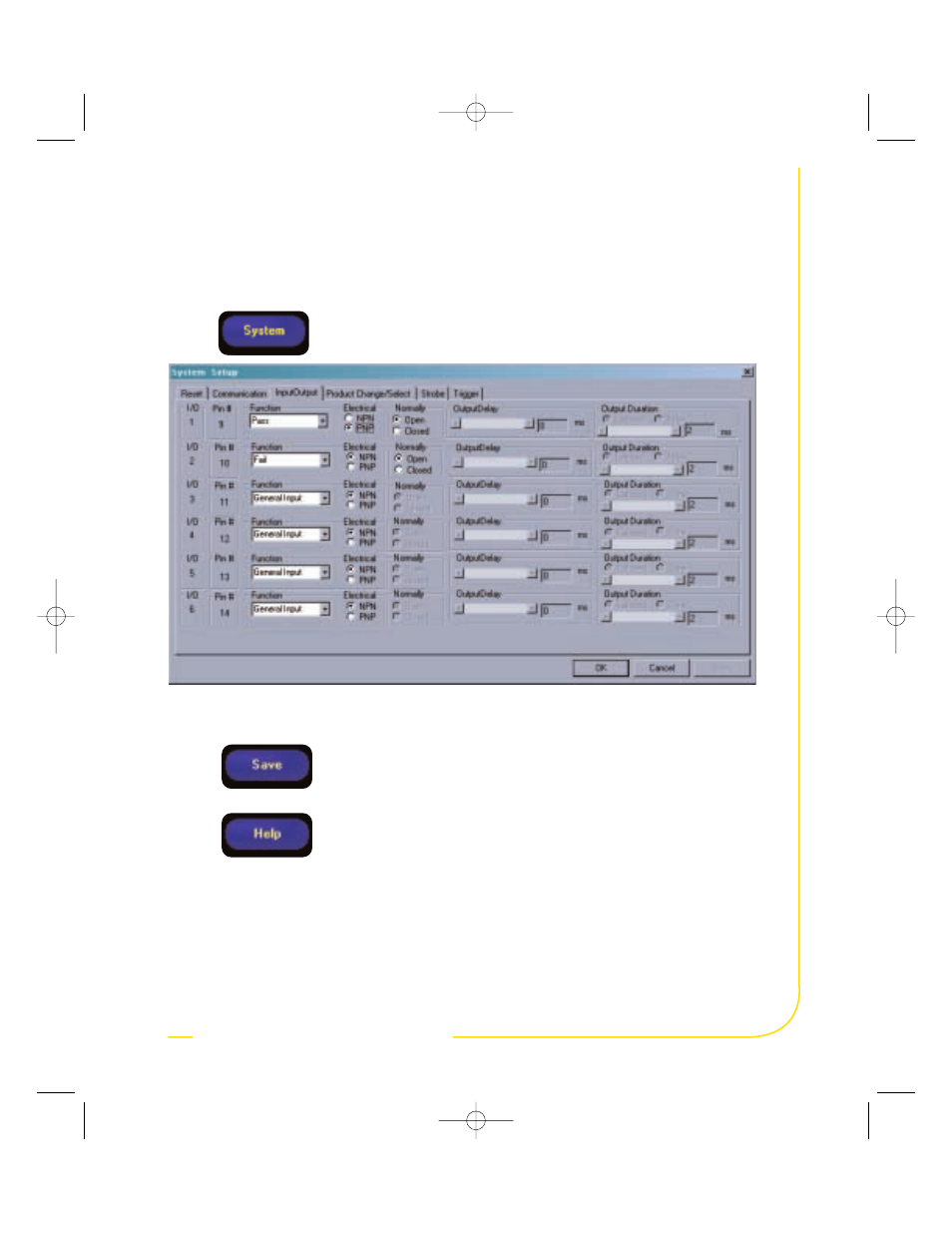

System Setup
Use the System Setup screen to change discrete I/O, the communication port, the product
change/select inputs, the strobe output (for external lighting control), the trigger input, and
to view diagnostic information.
Save inspections on the controller or PC.
Provides help files and PDFs of the Installation Manual (p/n 68368)
and the full-length Operator’s Guide (p/n 68367).
Input/Output Configuration Tab
