page 12
system
specifications
system
specifications
Model Number PPCTL
Part Number 62937
Mechanical
Construction: Steel with black zinc plating
Dimensions: 158 x 127 x 30.9 mm (6.22" x 5.0" x 1.22")
Weight: approx. 0.55 kg (1.2 lbs)
Environmental Rating: IEC IP20; NEMA 1
Operating Temperature: 0° to +50° C (+32° to +122° F)
Maximum Relative Humidity: 90%, non-condensing
Display Options PC and NTSC video (9 m [30'] max. cable length)
Discrete I/O
1 Trigger IN (pin 3)
1 Strobe OUT (pin 4)
6 Programmable I/O (pins 9 - 14)
1 Product Change (pin 15)
4 Product Select (pins 16 - 19)
Output Rating
150 mA (each)
ON-State Saturation Voltage: < 1V at 150 mA max. NPN
> V+ - 2 volts
OFF-State Leakage Current: <100 microamps NPN or PNP
Memory Stores up to 12 inspection files
Power
Voltage: 10-30V dc
Current: 1.5 amps max.
Controller
Communication
1 RJ-45 Ethernet port for running PresencePLUS Pro software
1 RS232 port for running PresencePLUS Pro software

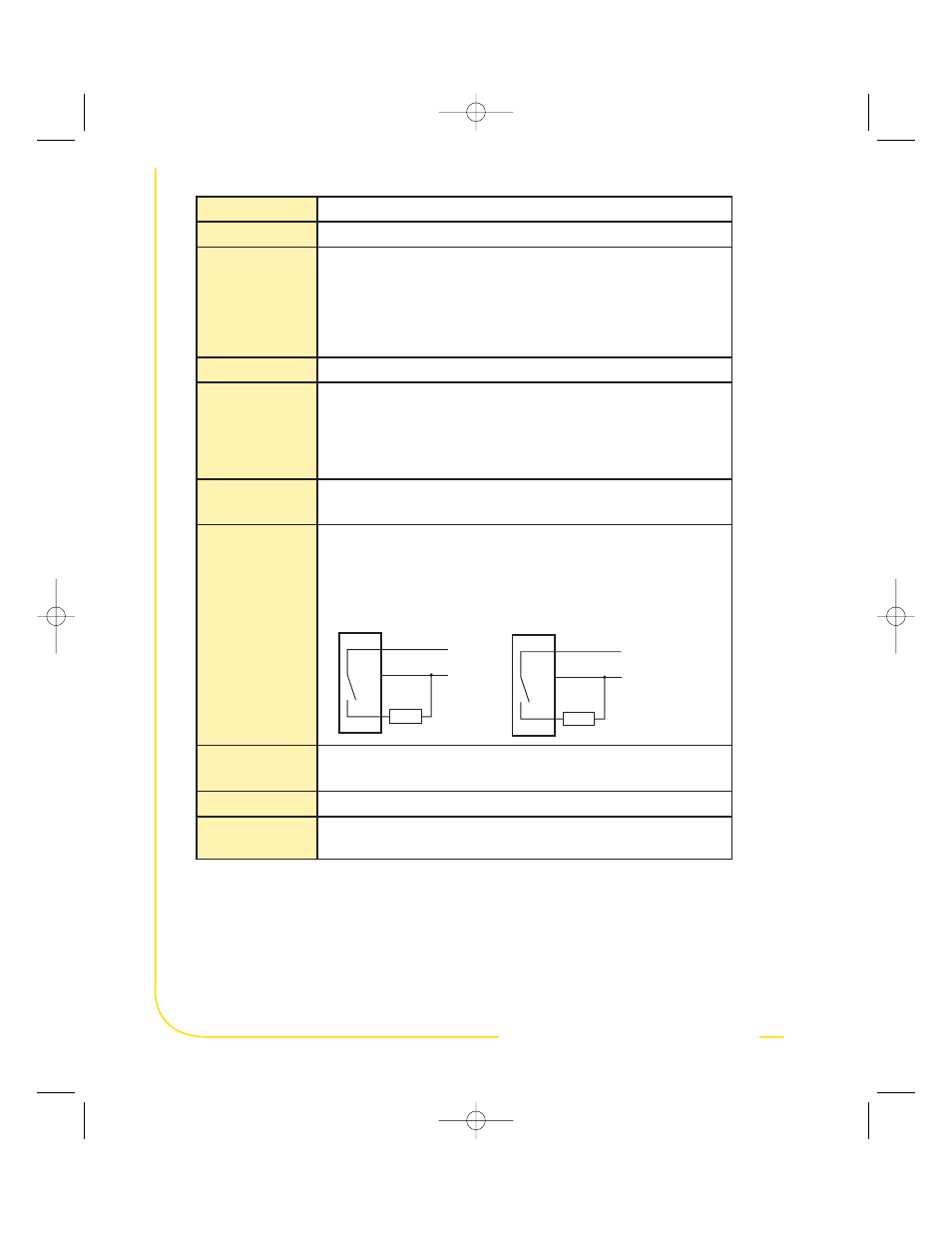

Output
Configuration
NPN or PNP software selectable
Load
–
+
10-30V dc
NPN Hookup
Load
+
–
10-30V dc
PNP Hookup
