Launching Software
1. Start the PresencePLUS Pro program by clicking
Start > Program Files > PresencePLUS Pro.
2. At start-up, PresencePLUS Pro will try to communicate with the camera.
• If communication with the camera is successful, the application will launch and
display the Setup or Run screen.
• If the current communication port is not available, the application will prompt you
to select a different port. Click OK to access the communications window.
To Change the Communication Port
• Ethernet connection:
a. choose IP Address
b. type: 192.168.0.1 in the space provided
c. click OK
• Serial connection:
Choose serial. Refer to the on-line
Installation Manual (p/n 68368) for detailed
instructions on serial port configuration.
3. If using an optional NTSC video monitor, verify that the monitor is displaying an
image.
4. When the software launches, create an inspection, configure the discrete I/O, and
begin running inspections.
NOTE: Initially, all discrete I/O are configured as inputs. Go to the System window to
change the discrete I/O. For detailed configuration information, refer to the
Operator’s Guide (P/N 68367).
TIPS
TIPS
DO NOT
click Modify
Camera IP
Address when
trying to establish
communications.
Modify
works only after
communications
have been
established.
step 5
step 5

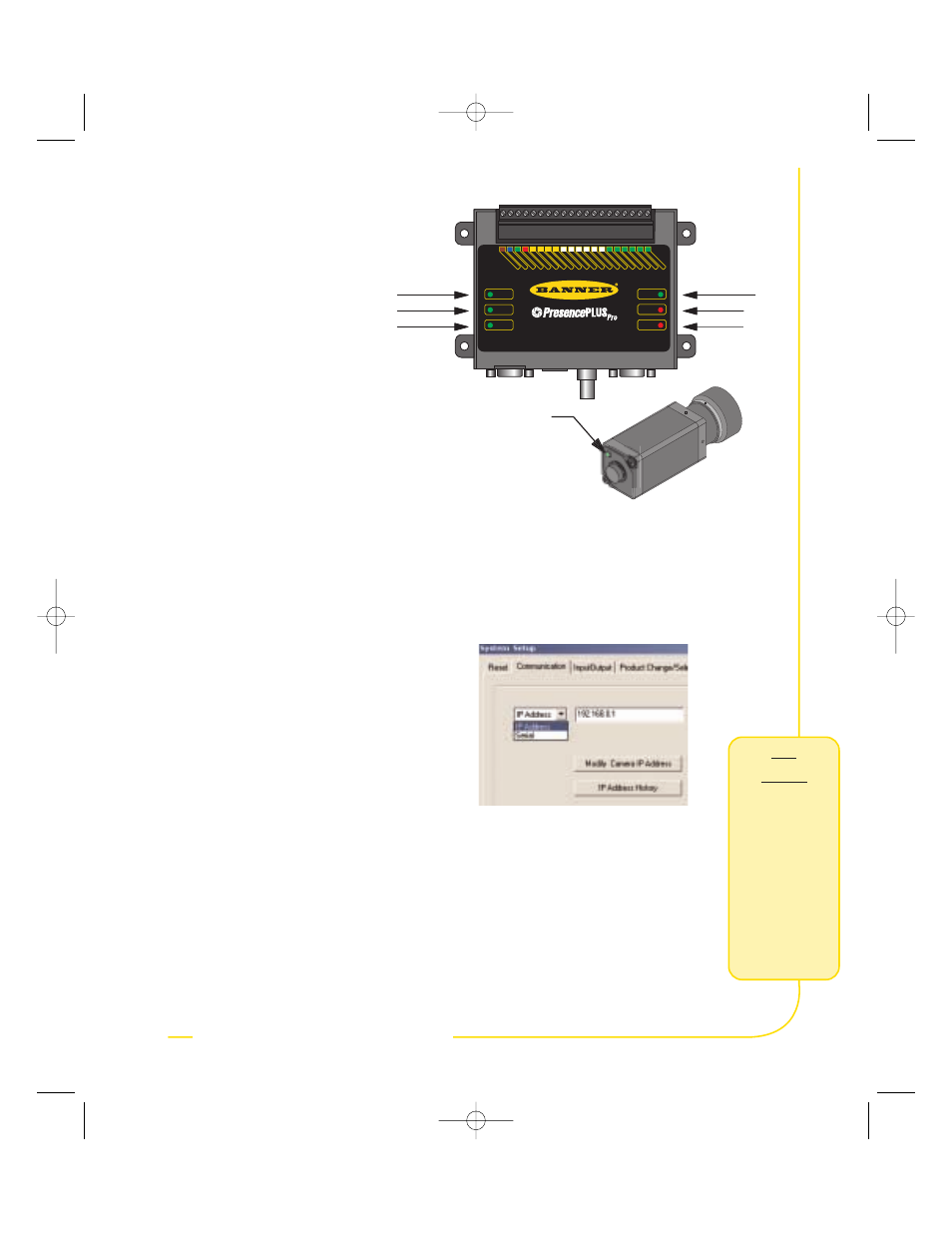

Starting the PresencePLUS Pro
1. Power up the hardware and verify that
the Error light turns OFF (during
power-up, all the controller LEDs
will come ON for 15-20
seconds).
2. Verify that the LED on the
camera is ON and has started
to flash.
Error
Model PPCTL
Controller
Fail
Pass
Power
Ready
Trigger
CHASSIS GND
20
10-30V
dc
dc COMMON
TR
IGG
ER
IN
STR
OBE
OU
T
TX
RT
S
RX
CTS
I/O
1
I/O
2
I/O
3
I/O
4
I/O
5
PR
OD
UCT SE
L
0
19
PR
ODU
CT S
EL1
18
PR
ODU
CT S
EL 2
17
PRO
DU
CT S
EL
3
16
PR
ODU
CT CHANGE
15
I/O
6
14
13
12
10
11
09
08
07
06
05
04
03
02
01
Green LED
Red LED
Red LED
Green LED
Green LED
Green LED
Flashing
Green LED
