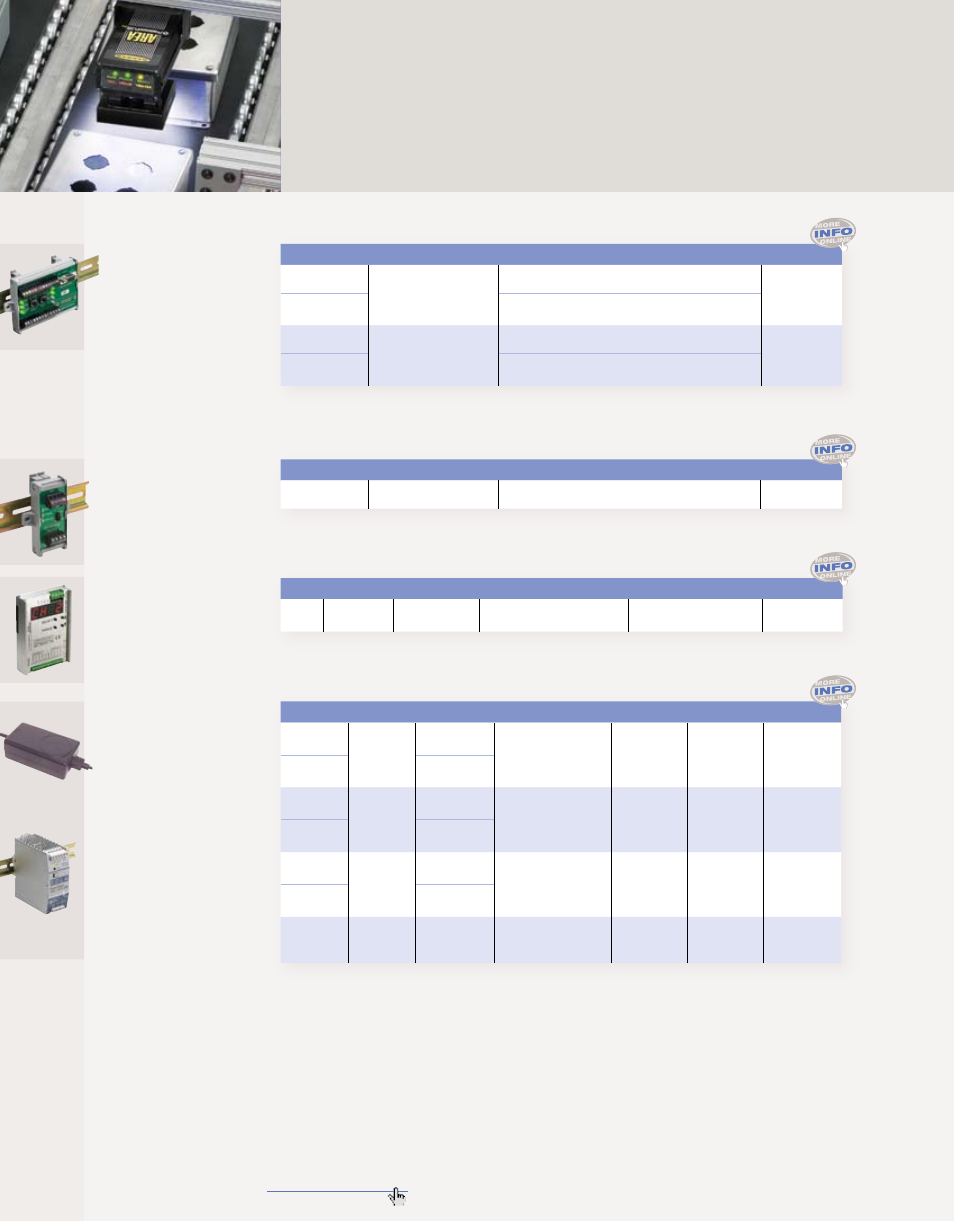

PresencePLUS ®
Sensor Interface
Modules
Sensor Models: P4
Light Interface
Modules
Used with Banner
Vision Lights
Strobe Control
Module
Used with specialty lights
ending in N or N-S
Continuous Power
Supplies
Model Outputs Connections Data Sheet
PPSIM-NT
Current Sinking (NPN)
Two 13-pin Terminals
126330
PPSIM-NC
One 13-pin Terminals
One DB-15 Connector
PPSIM-PT
Current Sourcing (PNP)
Two 13-pin Terminals
126330
PPSIM-PC
One 13-pin Terminals
One DB-15 Connector
46
More information online at bannerengineering.com
PresencePLUS ® Interface Modules
• Sensor interface modules provide a dc powered interface for PresencePLUS P4 vision sensors
• Lighting interface modules allows strobe operation of Banner’s lighting with any vision sensor or vision system
• Strobe control module provides control of specialty strobed LED lights
• Power supplies provide power to continuous LED lights or PresencePLUS vision sensors
Model Supply Voltage Strobe Output Data Sheet
PPLIM 24V dc 5V @ 10 mA max. 128190
Model Input Trigger Input Output Output Pulse Range Data Sheet
SCM*
24V dc ±5%
2 A max.
5V @ 10 mA max.
2-channels 24V dc ±5%
9A nominal per channel @ 60 Hz
5 to 1,300 microseconds 67448
Model Input Input Cord Outputs Output Cable Used With Data Sheet
PSA-12
100-250V ac
50/60 Hz
North America
(NEMA 5-15)
12V dc ±5% with
voltage regulation of ±1%
3.5 A max.
1.8 m Terminated
with 9-pin
D-sub connector
(female pins)
Continuous
LED Lights
67445
PSA-12E
Cont. Europe
(Schuko CEE 7)
PSA-24
100-250V ac
50/60 Hz
North America
(NEMA 5-15)
24V dc ±5% with
voltage regulation of ±1%
2.2 A max.
1.8 m Terminated
with 9-pin
D-sub connector
(female pins)
Continuous
LED Lights
67447
PSA-24E
Cont. Europe
(Schuko CEE 7)
PSC-24* 115-250V ac
50/60 Hz
(Auto Select)
North America
(NEMA 5-15)
24V dc ±5% with
voltage regulation of ±1%
2.2 A max.
1.8 m 2-wire
Unterminated
SCM Strobe
Control Module
67446
PSC-24E*
Cont. Europe
(Schuko CEE 7)
PSDINA-24
(DIN-rail
mountable)
115-230V ac
(Auto Select)
— 24V dc @ 2.5 A max. — P4, Pro & Lights —
PSA.. & PSC..
PSDINA-24
