P4 Dedicated-Function Sensors

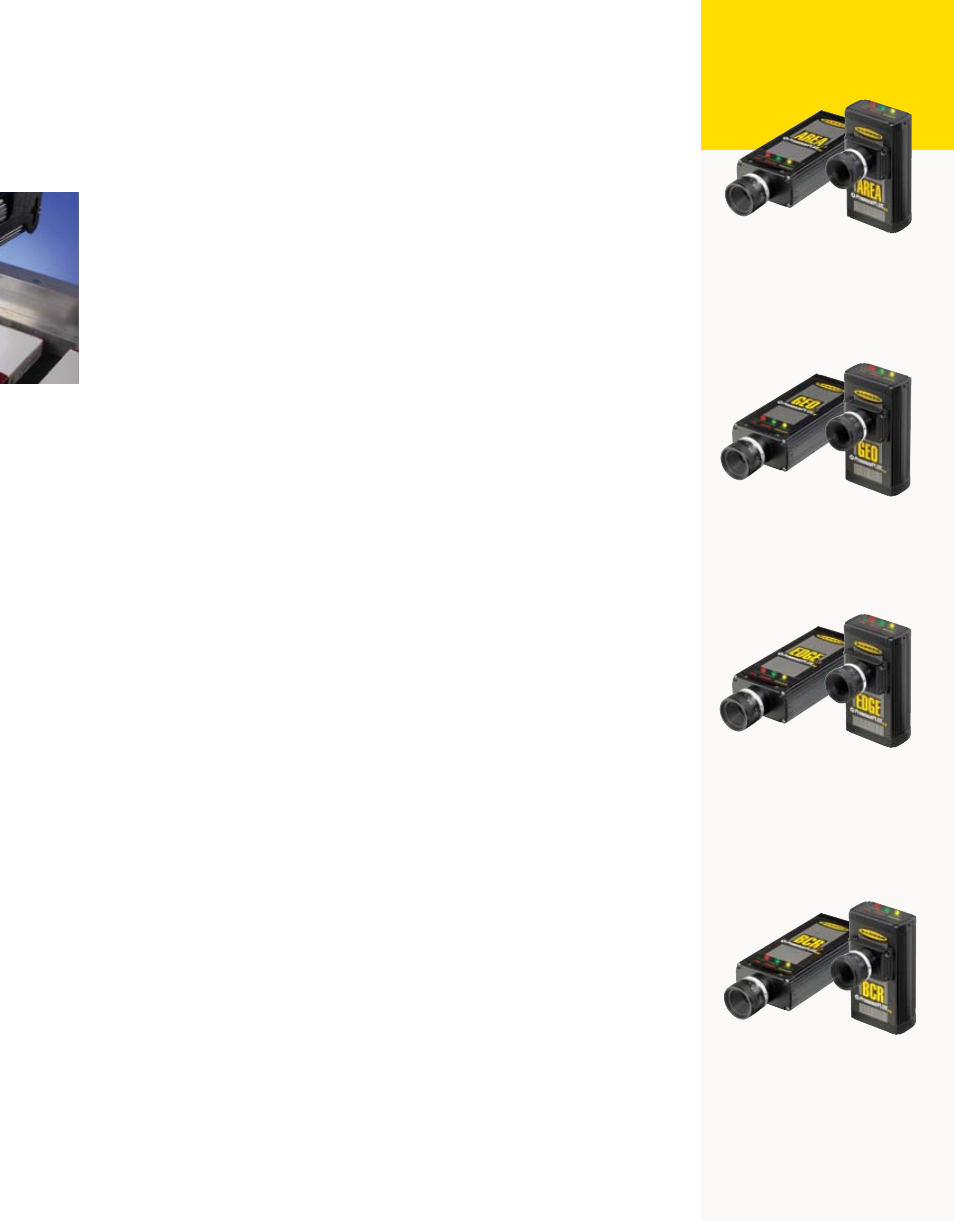

PresencePLUS P4 AREA
• Uses Blob and Gray Scale tools for
basic inspections of defined areas
• High-speed analysis up to 10,000
parts per minute
• Standard resolution: 128 X 100
• High-resolution: 1280 X 1024
PresencePLUS P4 GEo
• Uses GEO Count tool to detect
presence, location and rotation of
a target pattern (360°)
• Standard resolution: 128 X 100
• High-resolution: 1280 X 1024
PresencePLUS P4 EDGE
• Uses Edge and Object tools to
validate height, width, location
and edges
• High-speed analysis faster than
10,000 parts per minute
• Standard resolution: 128 X 100
• High-resolution: 1280 X 1024
PresencePLUS P4 BcR
• Finds and decodes 2D and 1D linear
bar codes
• Industry standard bar code metrics
and grading
• Standard resolution: 640 X 480
• High-resolution: 1280 X 1024
Robust, affordable vision solutions solve specific
inspection challenges.
In the past, machine vision was practical only for complex, mission-critical inspection
applications at considerable expense. Banner’s PresencePLUS® vision sensors changed
everything, bringing high-performance inspection capabilities with ease-of-use and
affordability—priced for general industry. Now, Banner revolutionizes vision again,
with a family of four powerful, affordable vision sensors dedicated to solving the most
common inspection challenges. PresencePLUS® P4 series dedicated-function sensors
offer just the tools you need, in a price-performance breakthrough that simplifies vision
inspection and makes it practical.
PresencePLUS P4 Dedicated-Function Sensors:
• Four models with Locate, Measure, Math, Test, Communications and specific vision tools
• High-performance vision inspections in self-contained in-line or right-angle
housing styles that fit in the palm of your hand
• Standardized GUI supports nine languages
• Remote TEACH function for inspection changeovers without a PC
• Connects directly to real-time video display without a PC
• Communicates over Ethernet, configurable discrete I/O and RS-232 serial lines
• Provides direct connectivity to EtherNet/IP and Modbus TCP industrial networks
• ActiveX utilities for custom operator controls
• Available with a variety of mounting brackets, lenses and lighting accessories
PresencePLUS P4 AREA and AREA 1.3:
• Inspects presence and size of defined areas using Blob and Gray Scale tools to
capture and analyze images and render pass-fail judgements
• Ideal for high-speed quality control, such as sorting, assembly error proofing, feature
identification and counting, orientation confirmation, process control, complete
case inspection and flaw detection
PresencePLUS P4 GEo and GEo 1.3:
• Performs 360° fixture-free inspections using GEO Count tool to detect the presence
and location of a pattern, regardless of product orientation or position in the sensor’s
field of view
• Ideal for part identification and orientation, pre-packaging assembly verification,
error proofing and label verification
PresencePLUS P4 EDGE and EDGE 1.3:
• Measures multiple edges of a product using Edge and Object tools to gauge height,
width, location and edges of selected areas
• Ideal for part identification and orientation, assembly verification, error proofing,
label verification, quality control sorting and measuring applications
PresencePLUS P4 BcR and BcR 1.3:
• Reads and decodes 2D and 1D linear bar codes; grades codes using industry
standard metrics
• Reads Data Matrix (ECC200) and standard linear codes including Code 39, Code 128,
Codabar, Interleaved 2 of 5, EAN-8, EAN-13 (supports UPC-A), UPC-E and Postnet
• High-resolution model reads and grades smaller bar codes in larger fields of view
