3.5 Connection to Metrohm IC systems
48
Metrohm 838 Advanced Sample Processor, Installation
010 Ctrl
ZERO
2
012 Scan
Wait1
013 Ctrl FILL A 2
015 Pump
120
s
016 Ctrl INJECT A 2
− Trigger autozero on 819/2 IC Detector
− Wait for Remote signal
− Switch over injection valve 2 on 820 to "Fill"
− Fill sample loop for 120 s with sample
− Switch over injection valve 2 on 820 to "Inject"
3.5.9 MIC-7 anionic system with chemical suppression and dialysis
This system requires the model 2.838.0110 of the 838 Advanced
Sample Processor.
The 838 Advanced Sample Processor is connected to an anionic IC
system with chemical suppression with 819 IC detector, 820 IC Separa-
tion Centre, 818 IC pump, 833 IC Liquid Handling Unit and 830 IC Inter-
face in accordance with Figure 37 using the 6.2141.190 remote cable.
and the 6.2134.090 RS232 cable.
819
838
820
818
830
PC
6.2134.100
6.2134.130
6.2115.070
6.2134.090
6.2125.090
6.2134.100
6.2141.190
833 MSM
6.2128.180
6.2134.040
6.2125.120
6.2125.090
6.2143.200
6.2134.090
833 Pump

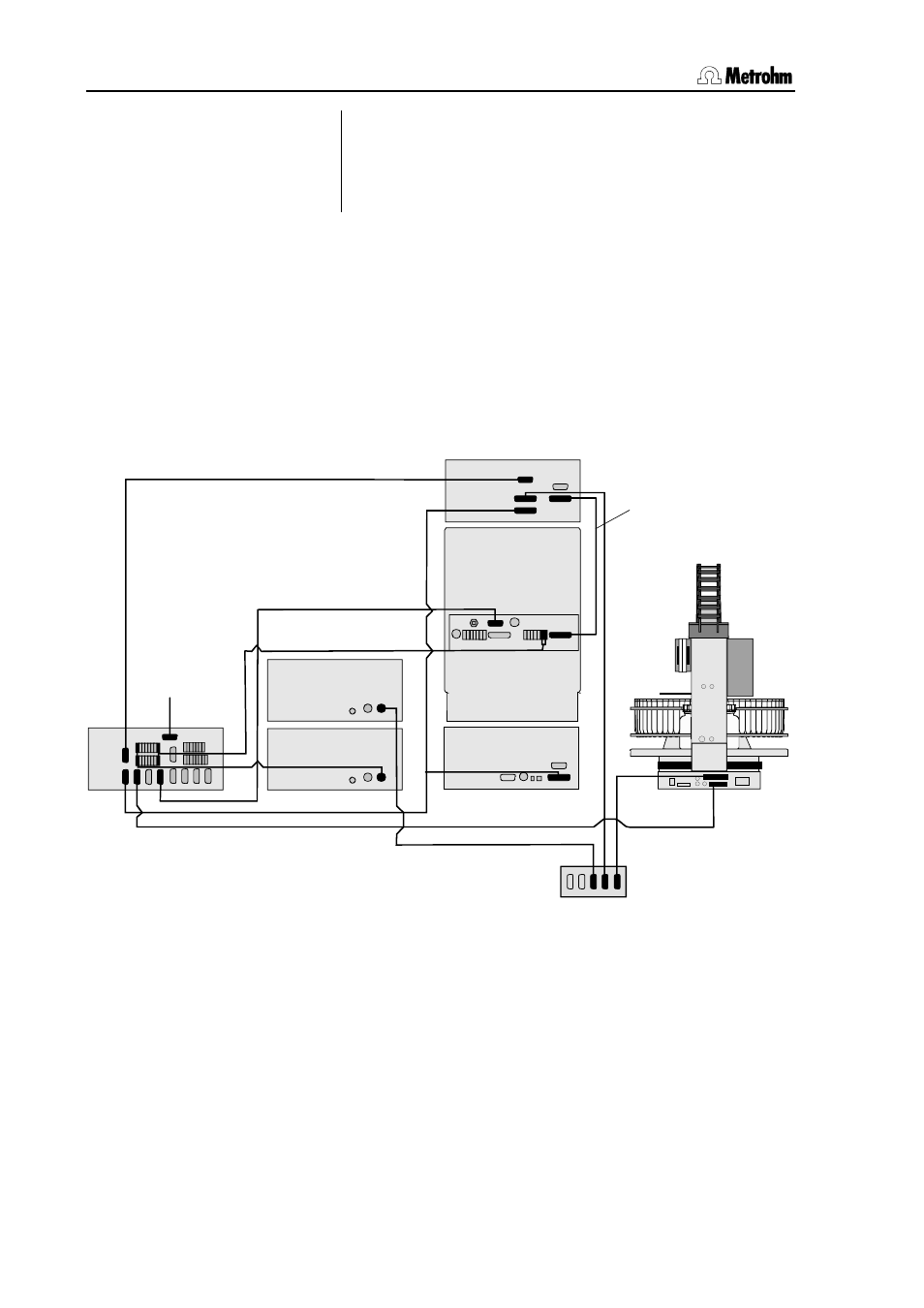

Figure 37 MIC-7 interconnection with anionic system with chemical suppression and
dialysis
838-specific settings in the «IC Net 2.3» program
The sequences of an automated IC analysis with prior dialysis can be
programmed in two different ways:
A) A sample is first prepared by dialysis for each analysis and this
sample is then chromatographically separated.
