3.5 Connection to Metrohm IC systems
46 Metrohm 838 Advanced Sample Processor, Installation
3.5.7 MIC-2 modular anionic system with chemical suppression and ul-
trafiltration of the samples
This system requires the model 2.838.0210 of the 838 Advanced
Sample Processor. Install the ultrafiltration cell, see Chapter 3.3.6.
The 838 Advanced Sample Processor is connected to an anionic IC
system with chemical suppression with 819 IC detector, 820 IC Separa-
tion Centre, 818 IC pump, 833 IC Liquid Handling Unit and 830 IC Inter-
face in accordance with Figure 35 using the 6.2141.190.remote cable
and the 6.2134.100 RS232 cable.
819
838
820
818
830
PC
6.2134.100
6.2134.130
6.2115.070
6.2134.090
6.2125.090
6.2134.100
6.2141.190
833 Pump
6.2128.180
6.2134.040

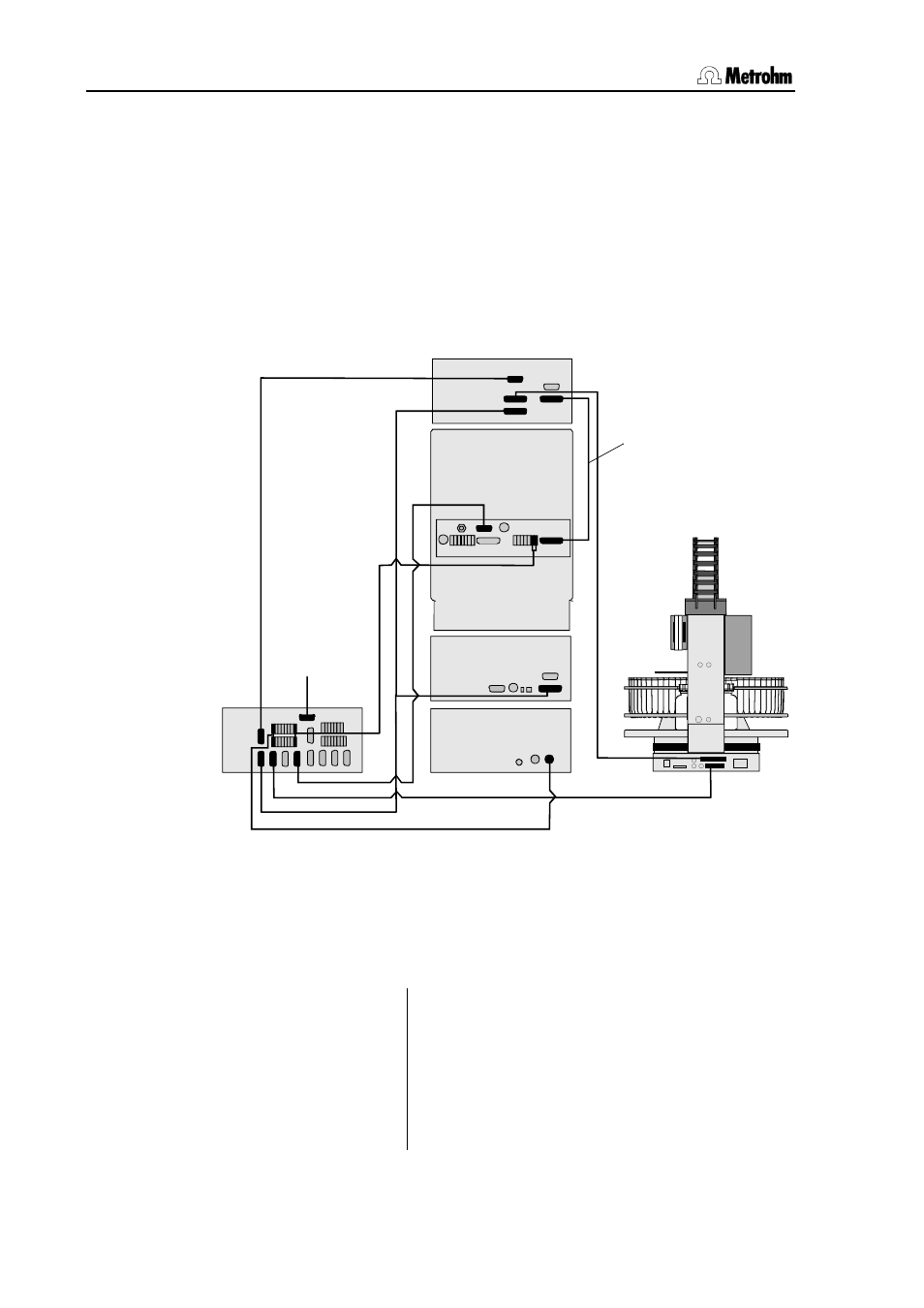

Figure 35 MIC-2 interconnection with anionic system with
chemical suppression
838-specific settings in the «IC Net 2.3» program
Program for the 838 Advanced Sample Processor:
001 Ctrl INIT 819
002 Move sample
003 Lift work
004 Ctrl ZERO 1
005 Ctrl FILL A 1
006 Pump 240 s
007 Ctrl INJECT A 1
008 Start
DA
− Initialise remote lines on 819
− Move needle to sample position
− Move lift with needle to working height
− Trigger autozero on 819/1 IC Detector
− Switch over injection valve on 820 to "Fill"
− Fill sample loop for 240 s with sample
− Switch over injection valve on 820 to "Inject"
− Start data recording
