26 838 Advanced Sample Processor, Installation
Advanced IC Ultrafiltration
Sample Processor
2.838.0210:
channel for pumping the
sample solution 6.1826.070 Pump tubing
made of PVC (Tygon ® ST) with 2 per-
manently mounted yellow-yellow
stoppers;
Inner diameter = 1.42 mm ± 0.05 mm,
Delivery
2.55 ml/min (20 rpm)
3.06 ml/min (24 rpm)
400
150
Optional 6.1826.110 Long-life pump tubing
made of PVC (Tygon ® LFL) with 2
permanently mounted orange-yellow
stoppers;
Inner diameter = 0.51 mm ± 0.0102
mm,
Delivery
0.40 ml/min (20 rpm)
0.48 ml/min (24 rpm)
400
150
Optional 6.1826.120 Long-life pump tubing
made of PVC (Tygon ® LFL) with 2
permanently mounted orange-white
stoppers;
Inner diameter = 0.59 mm ± 0.05 mm,
Delivery
0.44 ml/min (20 rpm)
0.53 ml/min (24 rpm)
400
150
Advanced IC Sample Proc-
essor 2.838.0010:
both channels
Advanced IC Injection
Sample Processor
2.838.0020:
both channels
6.1826.130 Long-life pump tubing
made of PVC (Tygon ® LFL) with 2
permanently mounted white-white
stoppers;
Inner diameter = 1.02 mm ± 0.0127
mm,
Delivery
1.41 ml/min (20 rpm)
1.69 ml/min (24 rpm)
400
150
Advanced IC Dilution Sam-
ple Processor 2.838.0120:
both channels 6.1826.140 Long-life pump tubing
made of PVC (Tygon ® LFL) with 2
permanently mounted grey-grey stop-
pers;
Inner diameter = 1.25 mm ± 0.0127
mm,
Delivery 2.18 ml/min (20 rpm)
9.7 ml/min (stage 15)
400
150
Advanced VA Sample Proc-
essor 2.838.0310 6.1826.150 Pump tubing
made of PVC (Tygon ® ST) with 2 per-
manently mounted violet-orange
stoppers;
Inner diameter = 2.54 mm,
Delivery
23.8 ml/min (stage 10)
400
150

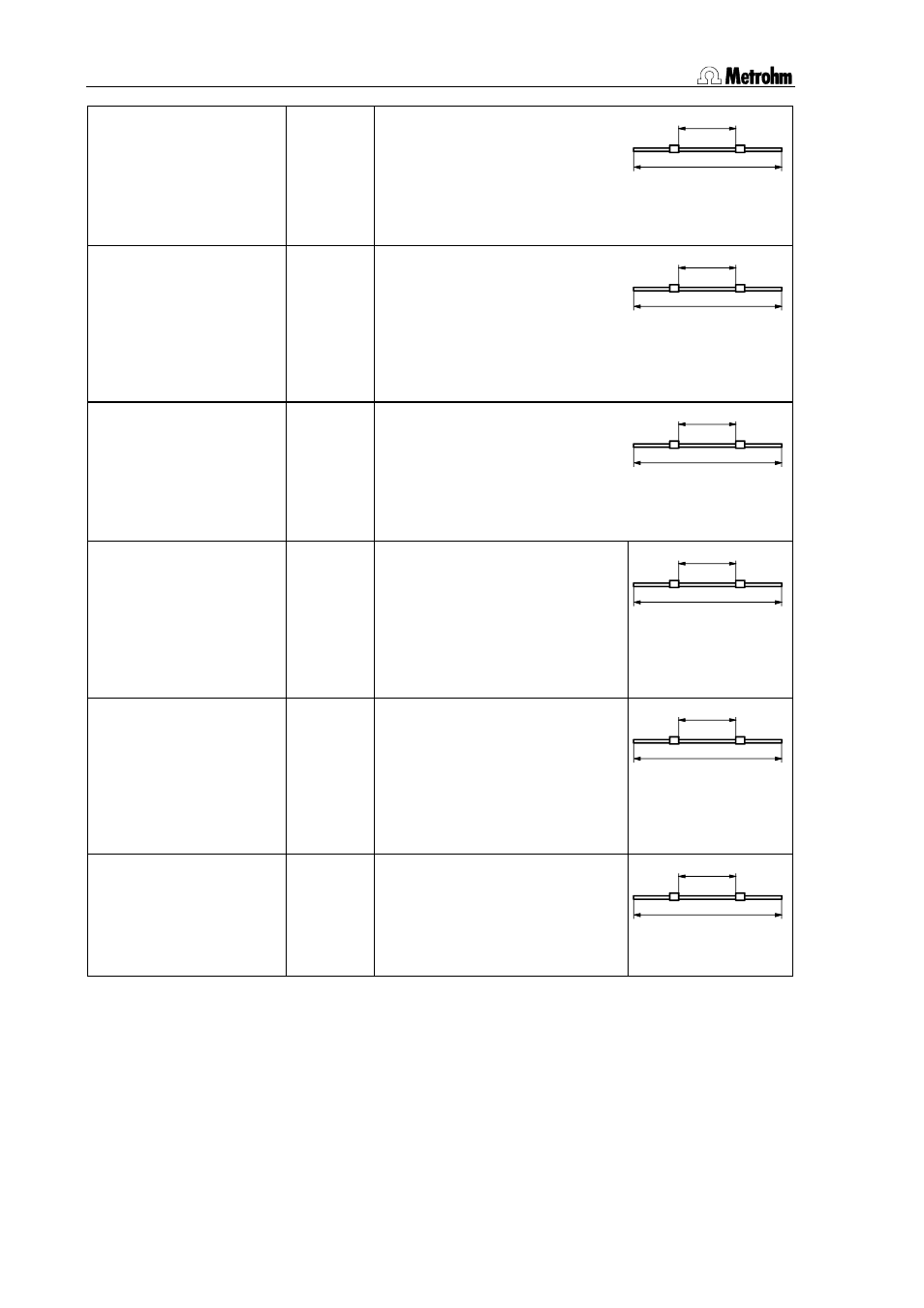

Table 3 Pump tubings
