5.2 Fundamentals of operation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
30 ￭￭￭￭￭￭￭￭ 863 Compact Autosampler
5.2 Fundamentals of operation
5.2.1 The keypad

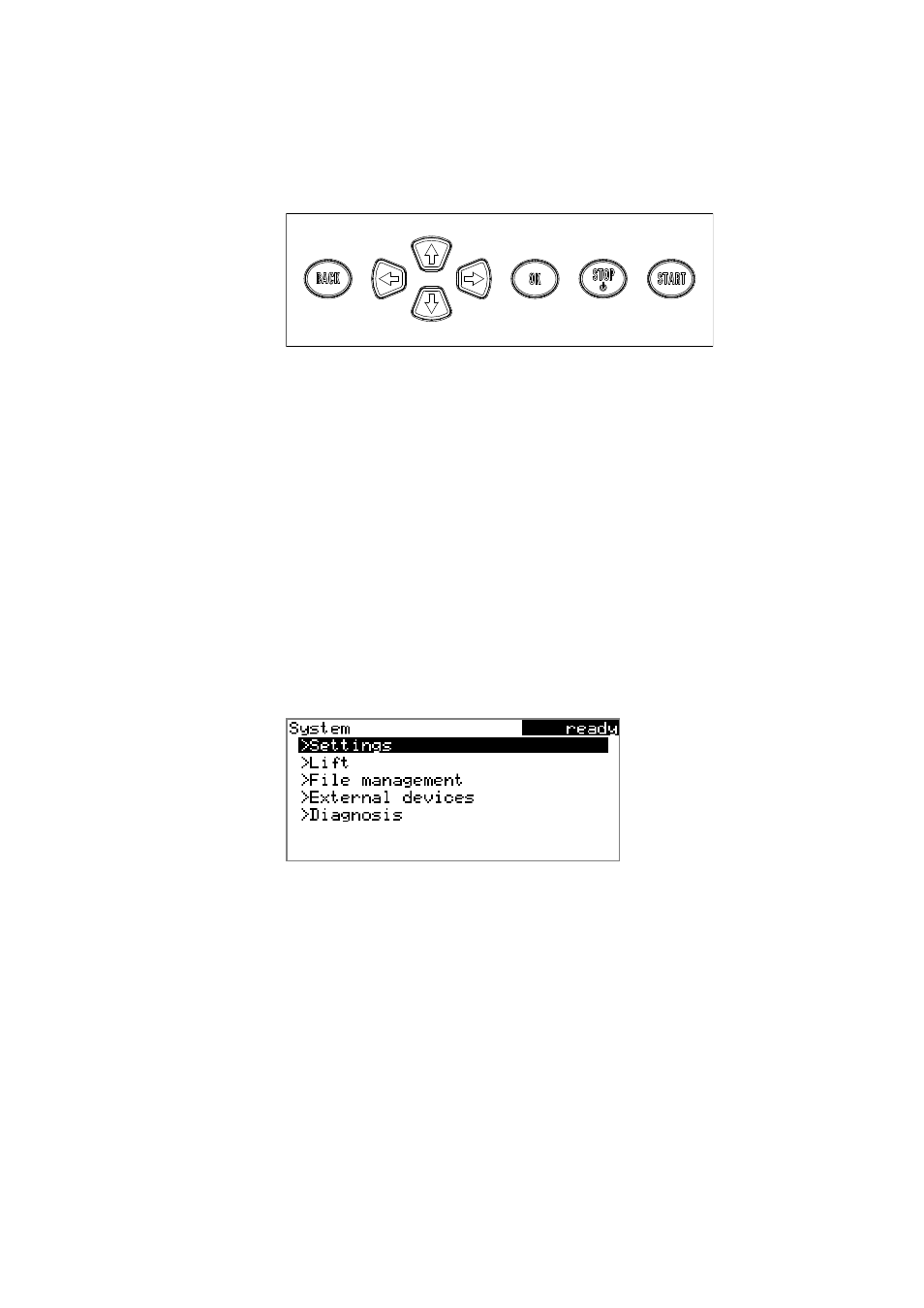

Figure 15 Keypad 863 Compact Autosampler
BACK Apply the input and exit the dialog.
⇧ ⇩ Move the selection bar either up or down by one
line at a time. Select the character to be entered
in the text editor.
⇦ ⇨ Select the character to be entered in the text and
number editor. Select the individual functions in
the function bar.
OK Confirm the selection.
STOP Stop an ongoing method run or a manual func-
tion. Switch the instrument on/off.
START Start a method run.
5.2.2 Structure of the dialog windows
The current dialog title is displayed on the left-hand side of the title line.
The current status of the system is displayed in the upper right-hand cor-
ner:
ready The instrument is in normal status.
busy A method has been started.
hold A method has been paused.
Some dialogs have a so-called function bar on the bottom line. The func-
tions contained therein can be selected with the arrow keys [
⇦] or [⇨]
and executed with [OK].
