3.8 Remote connections ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
22 ￭￭￭￭￭￭￭￭ 863 Compact Autosampler
6.2141.230
6.2141.280
843 Pump Station
863 Compact Autosampler
797 VA Computrace

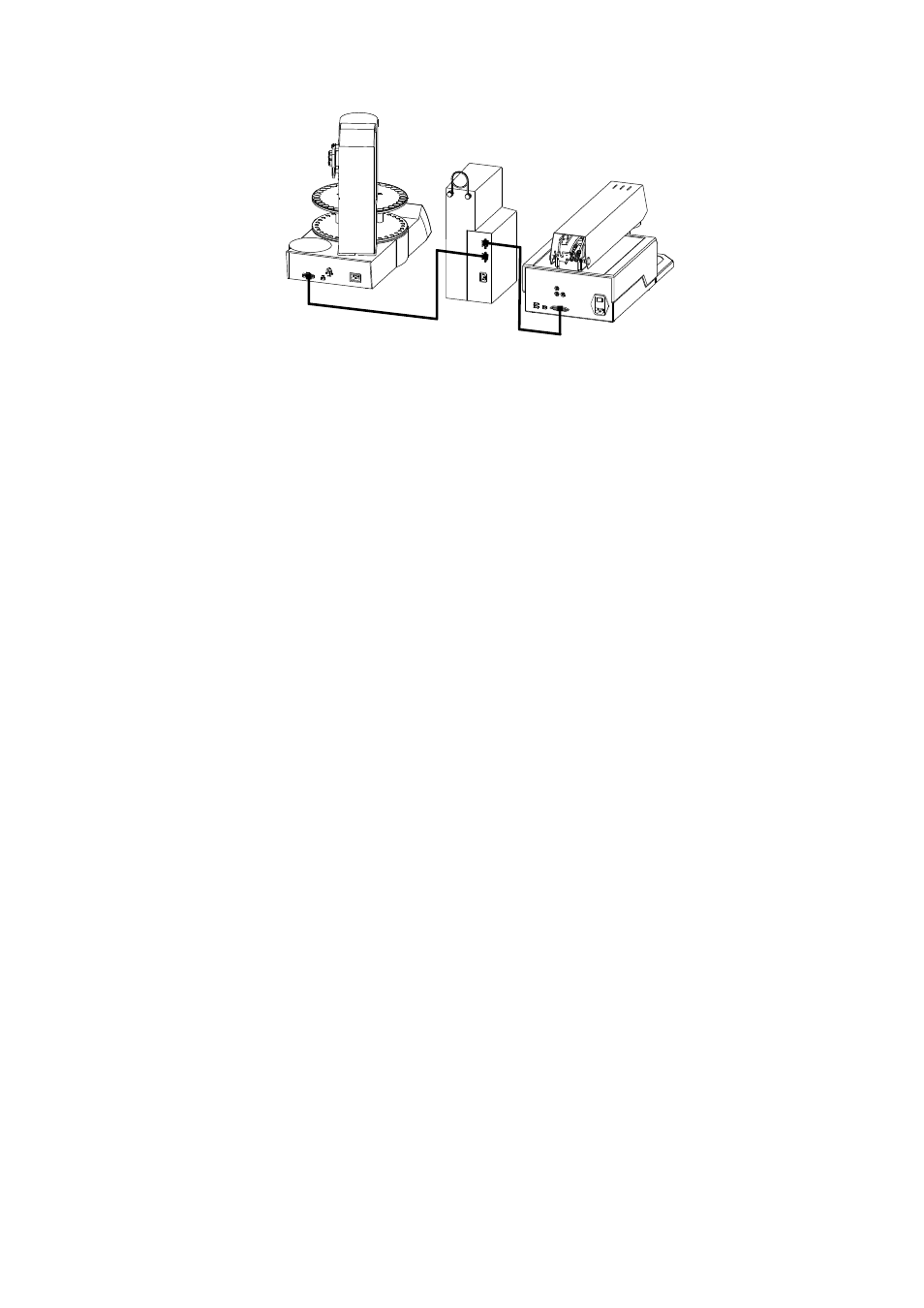

Figure 14 Remote connection 863 Compact Autosampler - 843 Pump
Station - 797 VA Computrace
The 863 Compact Autosampler is connected with a 6.2141.230 cable to
the Remote 2 connector of the 843 Pump Station. Remote 1 is connec-
ted to the 797 VA Computrace with the aid of a 6.2141.280 cable.
The pumps of the 843 Pump Station are activated by the 797 VA Compu-
trace.
