5.5 High pressure pump

■■■■■■■■■■■■■■■■■■■■■■

60

■■■■■■■■

882 Compact IC plus – Anion

for removing the old piston seal and a sleeve for inserting the new piston
seal.

2

1

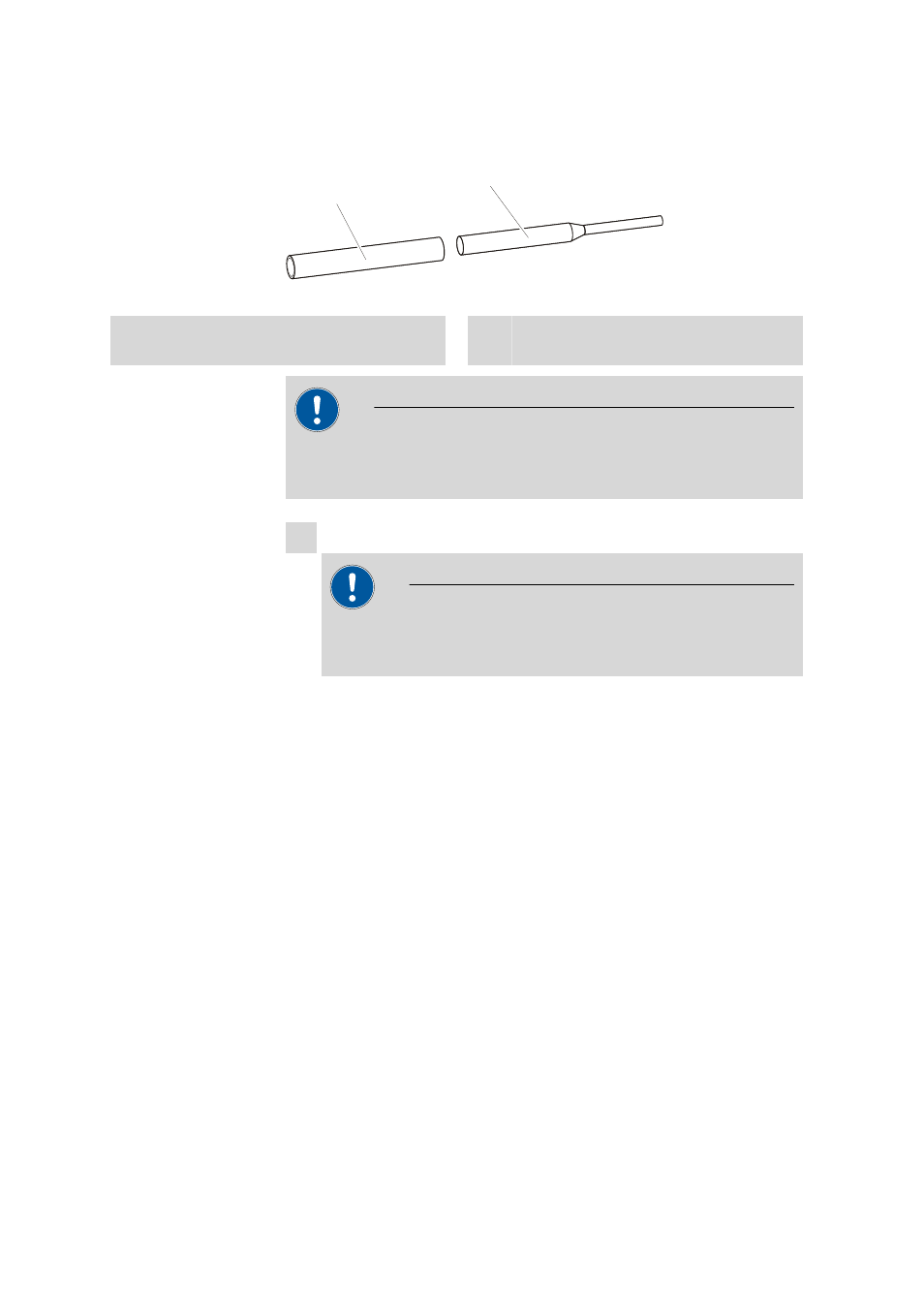

Figure 27

Tool for piston seal

1

Pin
Tip for removing the old piston seal.

2

Sleeve
Sleeve for inserting the new piston seal.

Caution

Screwing the special tool for the piston seal (6.2617.010) into the pis-
ton seal destroys this completely!

1 Removing the piston seal

Caution

Avoid touching the sealing surface in the pump head (13-4) with
the tool.

Screw the special tool for the piston seal (27-1) with the narrow side
just as far into the piston seal as the same can be removed.
