Basic
Make sure your setups according to Basic.
ROLL
/PAN/ TILT: Push the joystick on TX to obtain the stick direction and the gimbal rotation direction.
If you use the DJI iOSD, you may obtain the gimbal attitude information (PAN/ TILT/ ROLL) on the bottom
right corner of the display screen.

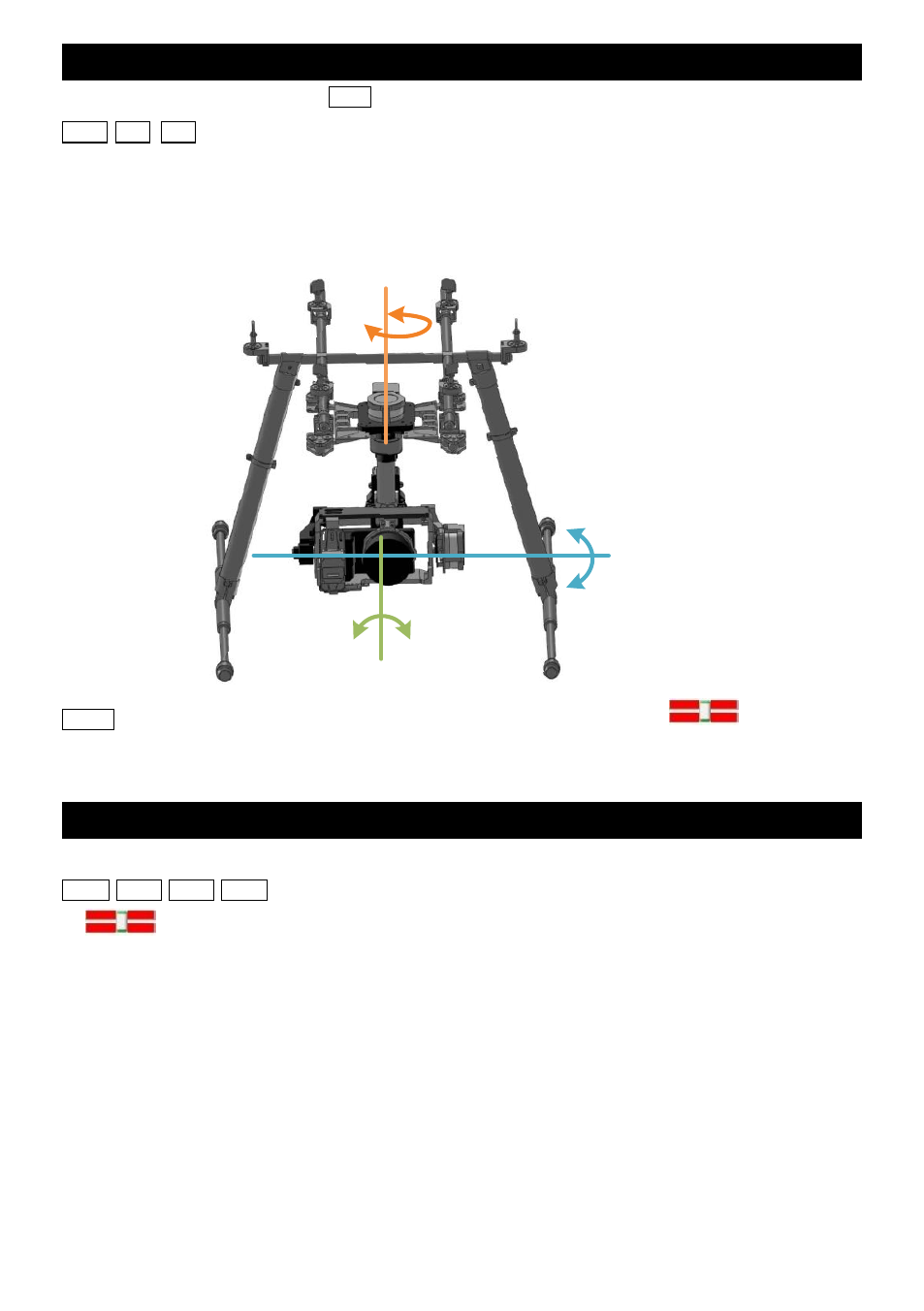

The following diagram shows the gimbal rotation direction and the cursor slide direction on assistant.
Cursor slide right
PAN axis rotation
TILT axis rotation
ROLL axis rotation
Cursor slide left
Cursor slide right
Cursor slide left
Cursor slide left Cursor slide right
MODE
: Toggle the 3-position switch, the corresponding slider of cursor will turn red
.
Function
SHUT
/AUX1/AUX2/AUX3 ：Toggle the 2-position switch, the corresponding slider of cursor will turn
red .
