Mount

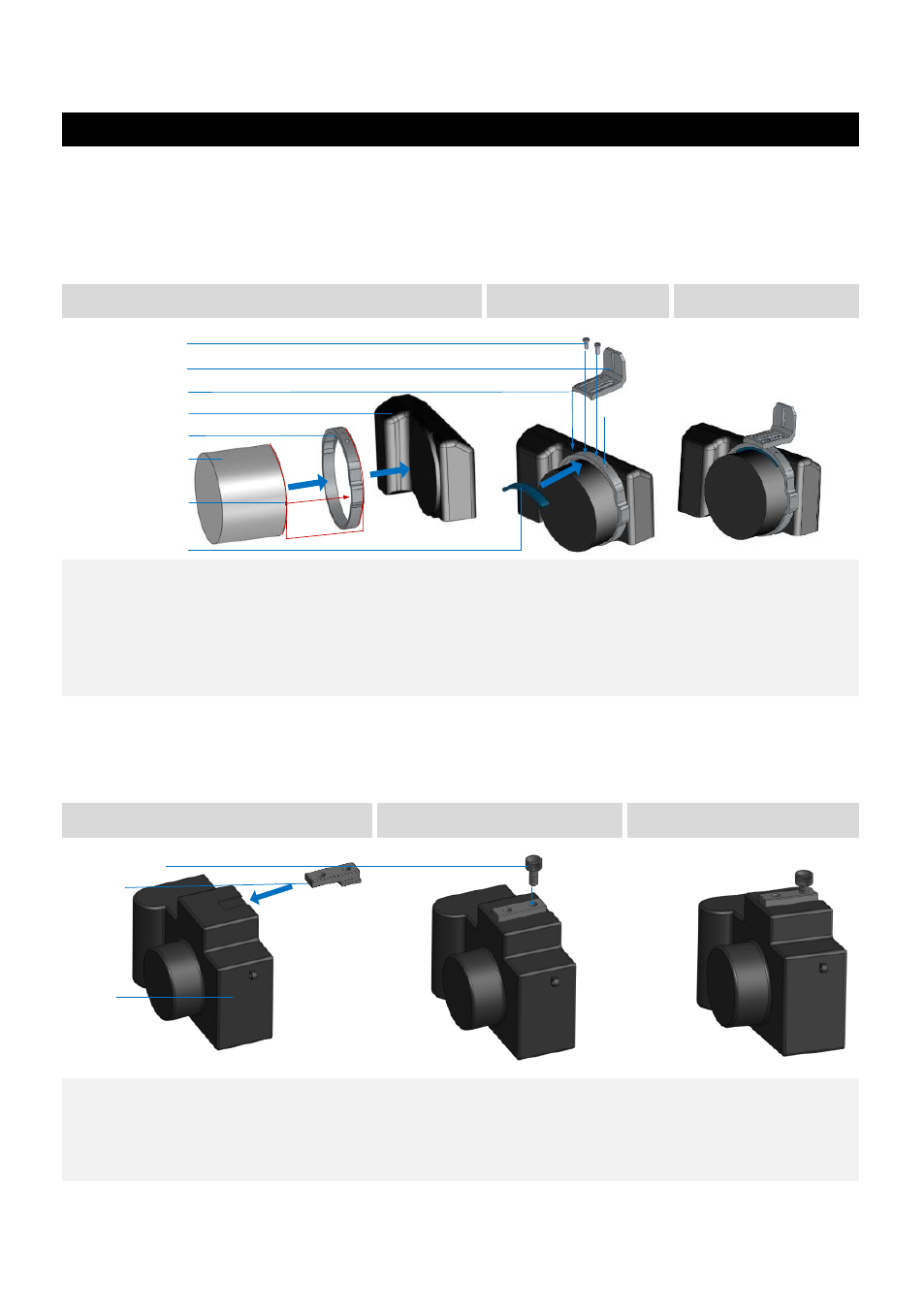

Mount Lens(Z15-N)/ Mount Hot Shoe(Z15-G)

Please read the related content according to your product (Z15-N or Z15-G). For Z15-N, please read Mount

Lens, otherwise read

Mount Hot Shoe for Z15-G.

Mount Lens (Z15-N)

Step1

Step2

Step3

align

Camera

Retaining Ring

Lens

L-Connector

Screw

Jackscrew

Mark

Shim

Step1:

Put retaining ring through lens before mounting onto camera, accurate the alignment by

matching the mark.

Step2:

Slip the shim between lens and retaining ring, fix in (but not tighten) screws (M2.5*5 Screw×2).

Step3:

The L-Connector is active.

Mount Hot Shoe (Z15-G)

Step1

Step2

Step3

Camera

Hot Shoe

Quick Twist Screw

for Hot Shoe

Step1:

Insert the hot shoe into the camera.

Step2:

Adjust the hot shoe and fix the quick twist screw.

Step3:

Finished.
