Mount Gimbal to Bi-pod

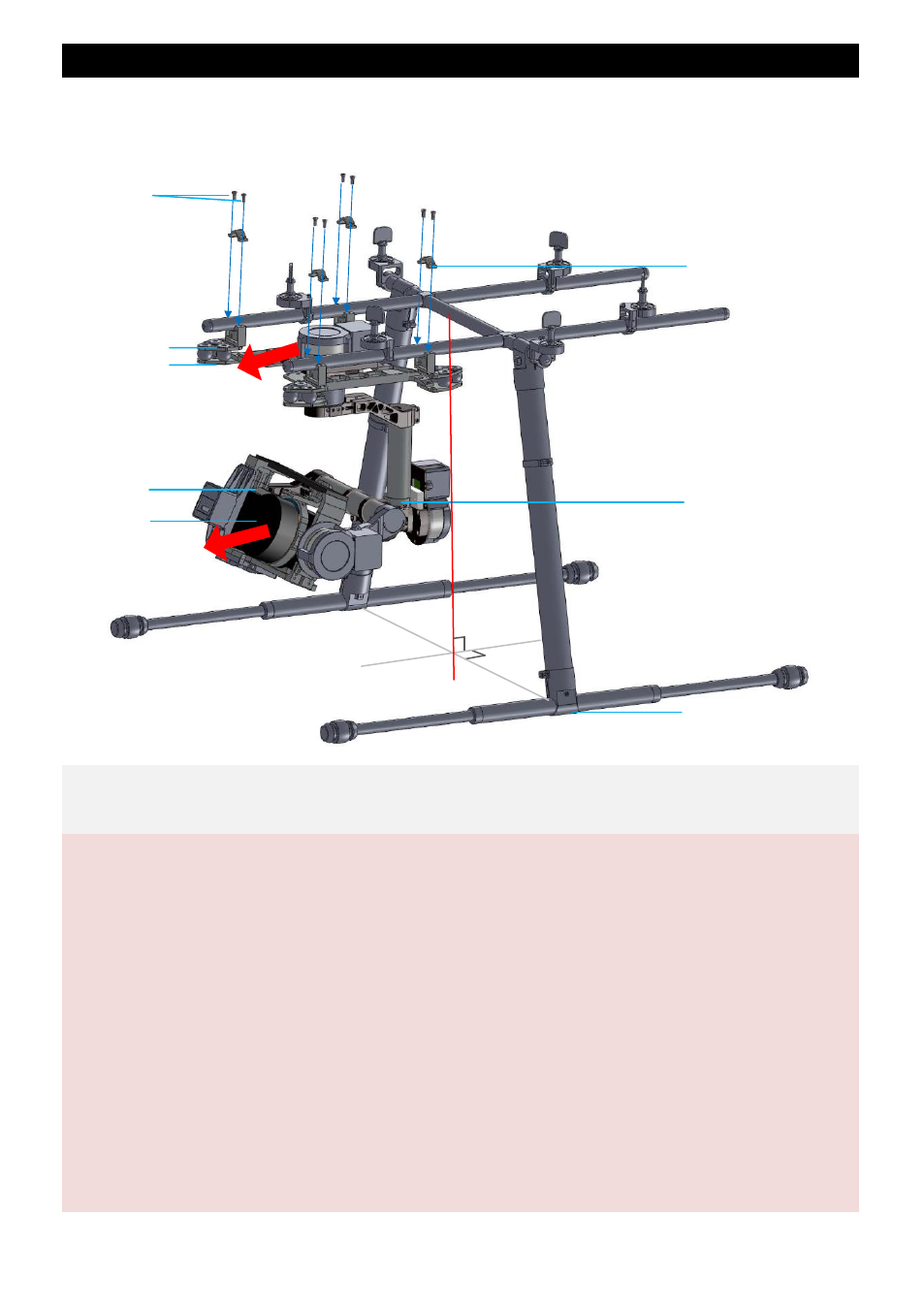

Following diagram shows mounting gimbal to DJI Innovations S800 bi-pod. You may mount the gimbal to a
bi-pod prepared by you referring to the following diagram.
Camera
Gimbal
DJI S800 Bi-pod
Mounting Bracket
Aircra
ft No
se
Parallel
X
Y
Z
Screws
Lens
Step7: Install gimbal to a bi-pod with mounting bracket; tighten up screws (2.5*8 Head-cup screw×8)
with appropriate screw glue.
Notices:
 Ensure to mount the side of servo driver module1 without ports to the aircraft nose direction.
 Make sure the top and bottom plates of damping unit stay parallel when mounting, preventing the
damping units from stretched and distorted.
 Keep overall balance when mounting, in order to make the center of gravity on the red line (Z axis).
 The gimbal center of gravity has been set, whose position directly determine gimbal performance.
Please do not adjust the gimbal center of gravity by yourself.

The gimbal is high-precision controlled. Do not remove any other screws in the gimbal, which may
result in bad performance or even damage.
 Do not unplug any cable attaching to the gimbal ports, or even change the mechanical structure.
 Make sure the wiring is correct, otherwise may lead to gimbal abnormal work or even out of control.
