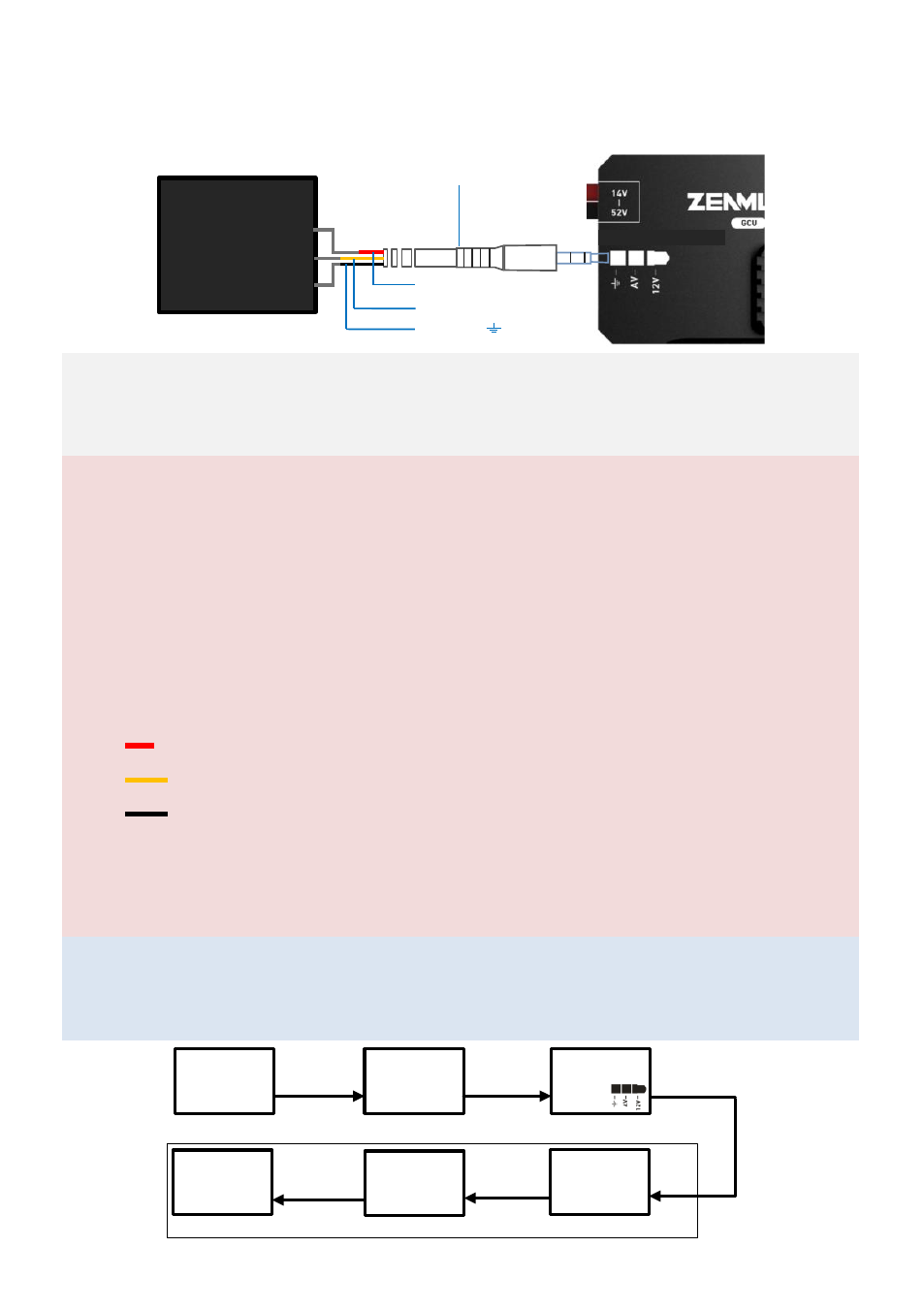

Video Signal Transmission
A wireless video transmission module is necessary for video signal accessing remotely.
Wireless Video
Transmission Module
Air End
Power(Red:1A@12V)
Video Signal(Yellow:AV)
GND(Black: )
Power
Video Signal
GND
Gimbal Video Power Cable
Video Signal Port
Step1: Respectively solder the Power/Video Signal/GND cables to wireless video transmission module
(Air End).
Step2: Plug the gimbal video power cable head into the GCU Video Signal Port.
Notices:
 Make sure to connect Wireless Video Transmission Unit to GCU first, then power on.

Set HDMI Resolution as 1080i for Z15-N; set the REC MODE as AVCHD (1080i) using Z15-G;
otherwise the wireless video transmission module will work abnormally.
 The standard gimbal video power cable is recommended.
 Make sure you solder the gimbal video power cable to the wireless video transmission unit correctly,
to avoid the 12V power burn the gimbal or your own device. And ensure the cables are insulated, to
prevent from short circuit.
Power Cable(1A @12V)
Video Signal Cable(AV)
GND Cable
 Ensure the 12V power is safe for you own device when using other power cable.
 Make sure the wireless video transmission module current consumption does not exceed 1A, to
prevent GCU from damage.
Tips:
 Following diagram shows how video signal transit when gimbal working.
 If video signal access fails, please check each step.
Camera
HDMI
Gimbal
HDMI-AV module
HDMI signal
GCU
G8
AV signal
Wireless video
transmission
module
Air end
HDMI-AV cable 8-Pins cable
Gimbal Video
Power Cable
Wireless video
transmission
module
Ground end
Wireless signal
Monitor
AV input
5.8G/2.4G/1.2G
Self-prepared by user
AV signal
AV signal
