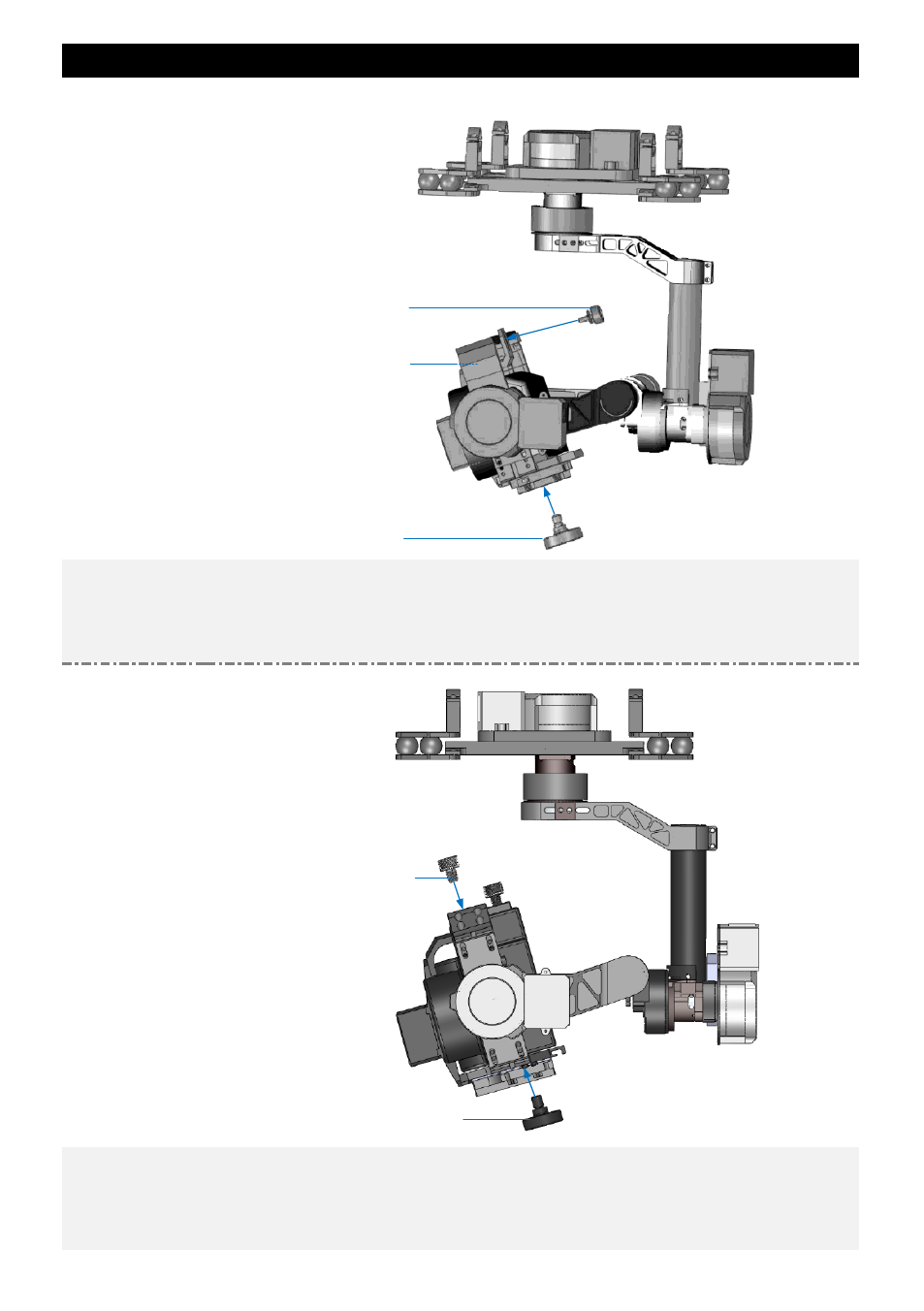

Mount Camera into Gimbal
Please read the related content according to your product (Z15-N or Z15-G).
Z15-N
Retaining Ring Screw
Camera Mounting Screw
Jackscrews and Other Screws
Step4:
Mount the camera into the gimbal and tighten the camera mounting screw.
Step5:
Adjust the L-Connector, and fix the retaining ring screw.
Step6:
Tighten the jackscrews and other screws.
Z15-G
：
Camera Mounting Screw
Quick Twist Screw
for Camera
Step4:
Mount the camera into the gimbal.
Step5:
Adjust the camera and tighten the camera mounting screw.
Step6:
Tighten the quick twist screw for camera.
