Camera Wiring/Shutter Control

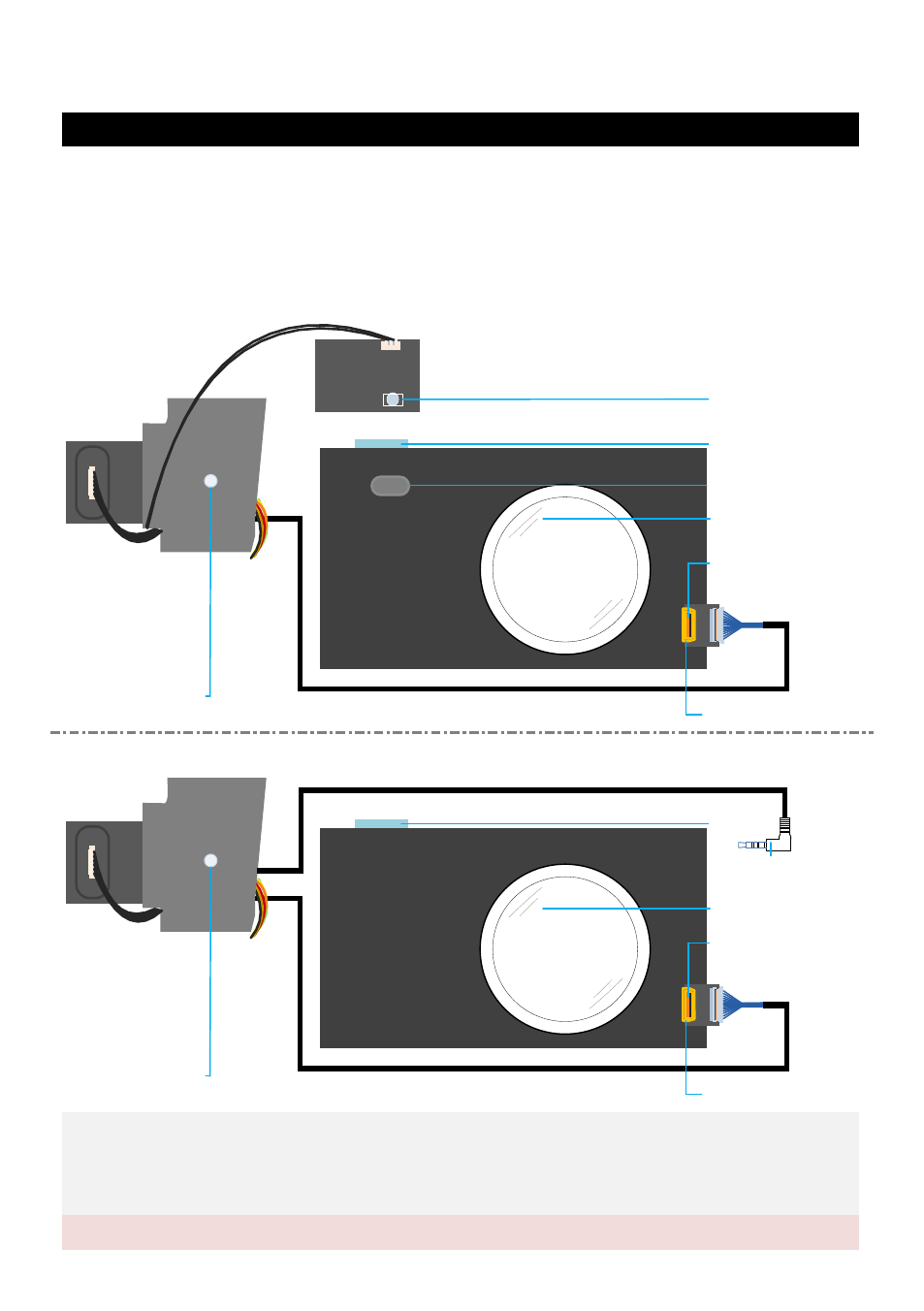

Camera Wiring
Connect the camera correctly, since the gimbal works with a HDMI-AV module for converting video signal
format and transforming TX signal into shutter control signal. Please read the related content according to
your product (Z15-N or Z15-G).
Ensure camera is setup first, and then follow the procedures to connect camera and gimbal.
Z15-N
HDMI
－AV
Interface
Camera HDMI Port
Infrared Signal
Emission Unit
Camera
Shutter Control
Module
Shutter
Camera Lens
Remote Sensor
Gimbal LED Indicator
HDMI-AV
Module
IMU
Z15-G
HDMI
－AV
Interface
Camera HDMI Port
Camera
Shutter
Camera Lens
Camera Shutter
Control Cable
Gimbal LED Indicator
HDMI-AV
Module
IMU
Step1: Connect the gimbal HDMI-AV module to camera HDMI port with a HDMI-AV connection cable.
Step2: For Z15-N, make sure the infrared signal emission unit is aligned to the remote sensor.
For Z15-G, connect the camera shutter control cable to the camera.
Notices:
