66 — C
ONSTRUCTION
M
ASTER
® P
RO
/ T
RIG
/ D
ESKTOP
Rake-Wall – No Base

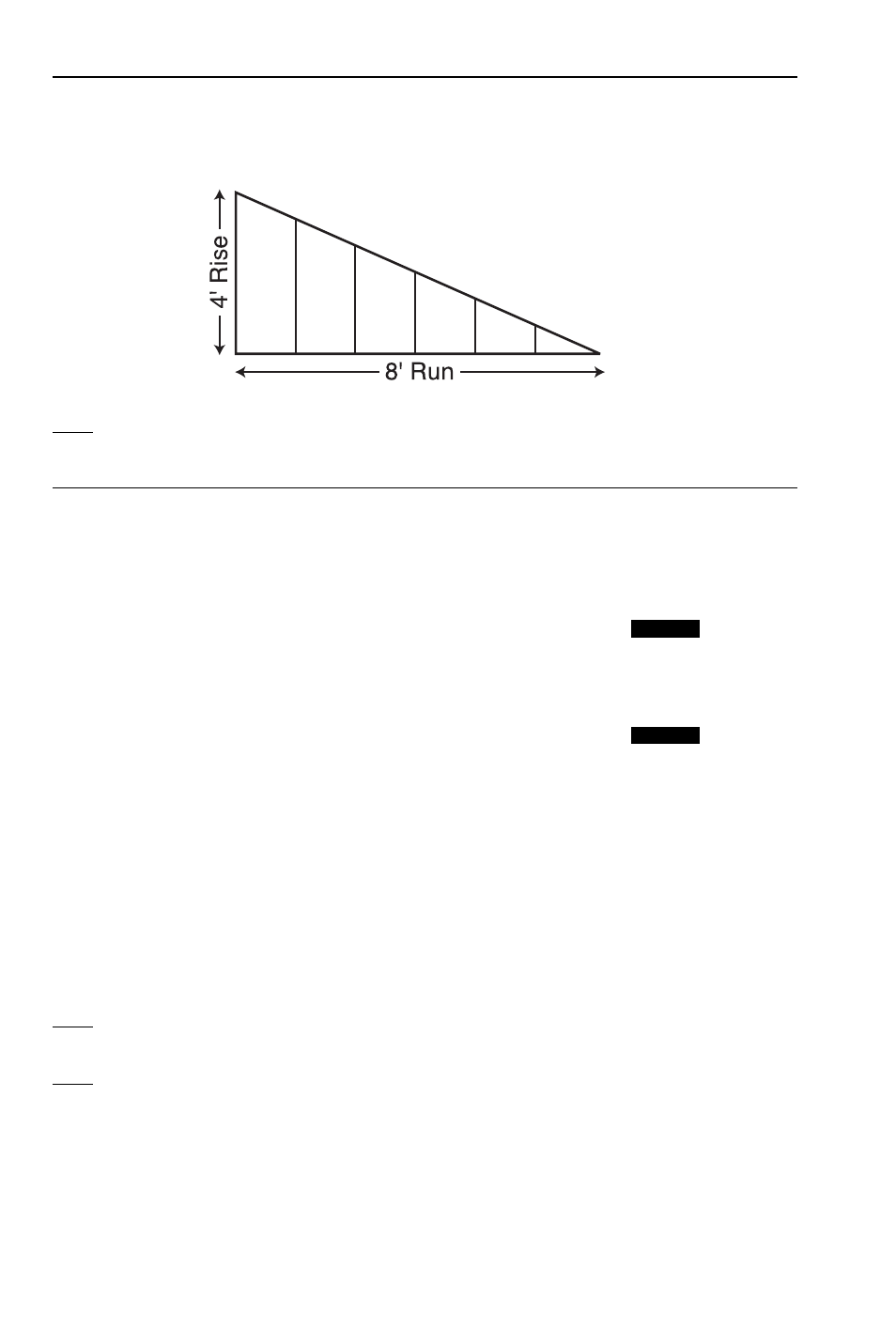

Find each stud size in a Rake-Wall with a peak (rise) of 4 Feet, and
a length (run) of 8 Feet. Use 16 Inches as your spacing.
Note: The wall has no base.
KEYSTROKE DISPLAY
1. Enter Rise and Run and display o.c. spacing:
o o 0.
4 f r RISE 4
FEET
0
INCH
8 f R RUN 8
FEET
0
INCH
® 5 * OC 16
INCH
*If 16-inch is not displayed, enter 1 6 i ß 5 .
2. Find stud lengths:
Ç r (R/Wall) RWOC 16
INCH
r RW 1 3
FEET
4
INCH
r RW 2 2
FEET
8
INCH
r RW 3 2
FEET
0
INCH
r RW 4 1
FEET
4
INCH
r RW 5 0
FEET
8
INCH
r BASE 0
FEET
0
INCH
3. Find Rake-Wall angle of incline:
r RW 26.57°
Note: By setting the Rake “Ascend” Preference (see Preference Settings on page
83), you may view Rake-Wall stud lengths from smallest to largest size.
Note: You can also solve if you only know the Rise and Pitch, Run and Pitch, or
Diagonal and Pitch. Simply enter the known values via
p , r , R , or d keys,
similar to Step #1 above, then solve for Rake-Wall stud lengths, as seen in Step #2.
