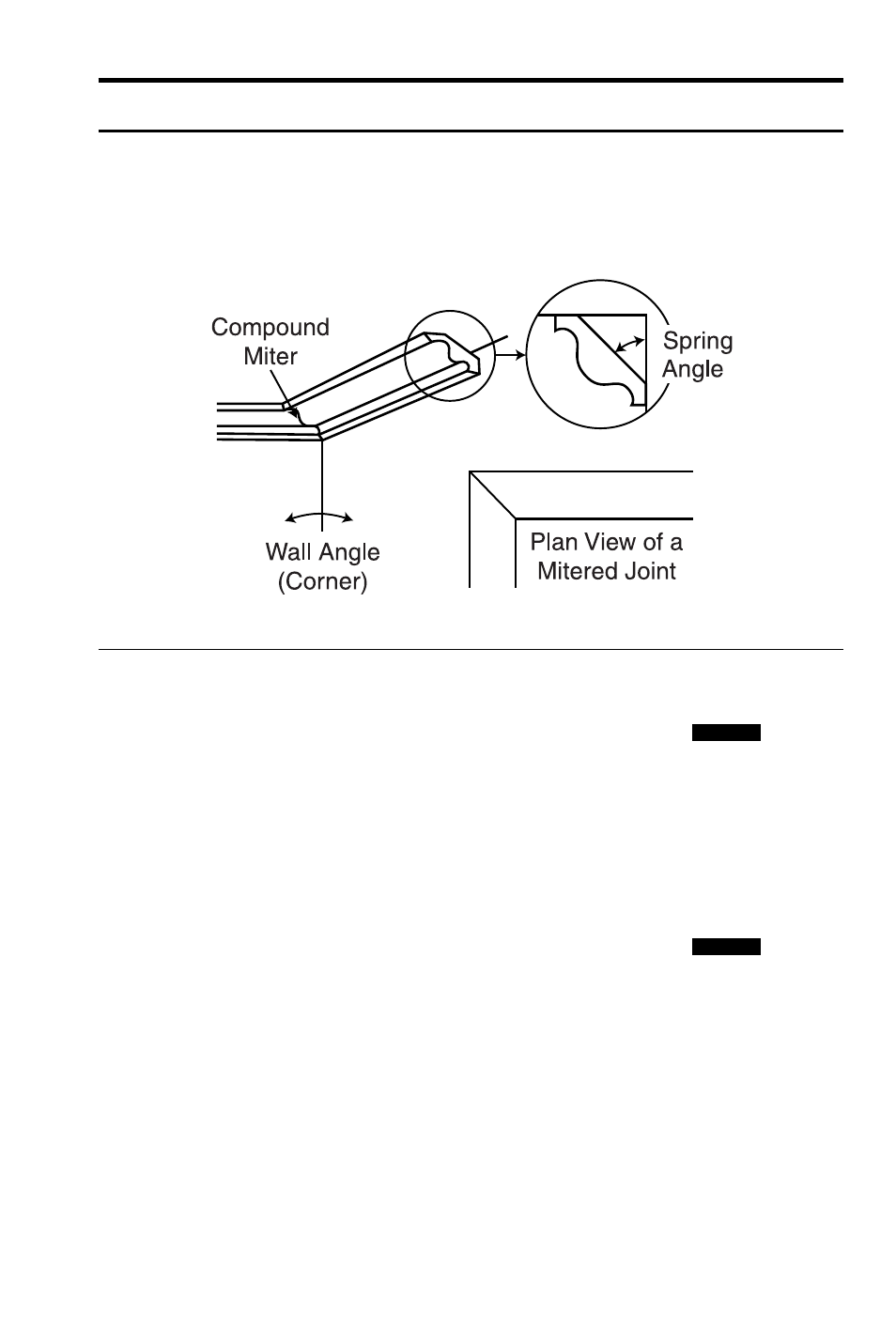

COMPOUND MITER

Compound Miter Cuts

You’re installing crown moulding on the upper wall of your living
room. If the wall corner angle is 60° and the spring (crown) angle is
38°, find the miter angle and bevel angle cut.

KEYSTROKE

DISPLAY

1. Store the spring angle:

o o

0.

3 8 Я В

(Spring Angle)

SPRG

38.00°

2. Enter wall corner angle and calculate miter angle:

6 0 Â

*

MITR 46.84°

3. Calculate bevel angle:

Â

BEVL 43.03°

4. Display stored spring angle:

Â

SPRG

38.00°

5. Display entered wall corner angle:

Â

CRNR 60.00°

*When a value less than 25 is entered as the wall corner angle, the compund miter
function assumes this is the number of sides of a polygon, calculates the wall corner
angle, and displays it first before displaying the miter angle.
