(Cont’d)

KEYSTROKE

DISPLAY

5. Find Arc length:

a

ARC 10

FEET

7

INCH

6. Display chord length:

a

CORD 8

FEET

1

INCH

7. Find segment area:

a

SEG 16.96327

SQ INCH

8. Find pie slice area:

a

PIE 22.63527

SQ INCH

9. Display entered rise (segment height):

a

RISE 2

FEET

10-1/2

INCH

10. Display On-center spacing:

a

OC

16

INCH

11. Find the arched segment wall lengths:

a

AW 1 2

FEET

2-9/16

INCH

a

AW 2 2

FEET

11-3/16

INCH

a

AW 3 4

FEET

9-1/8

INCH

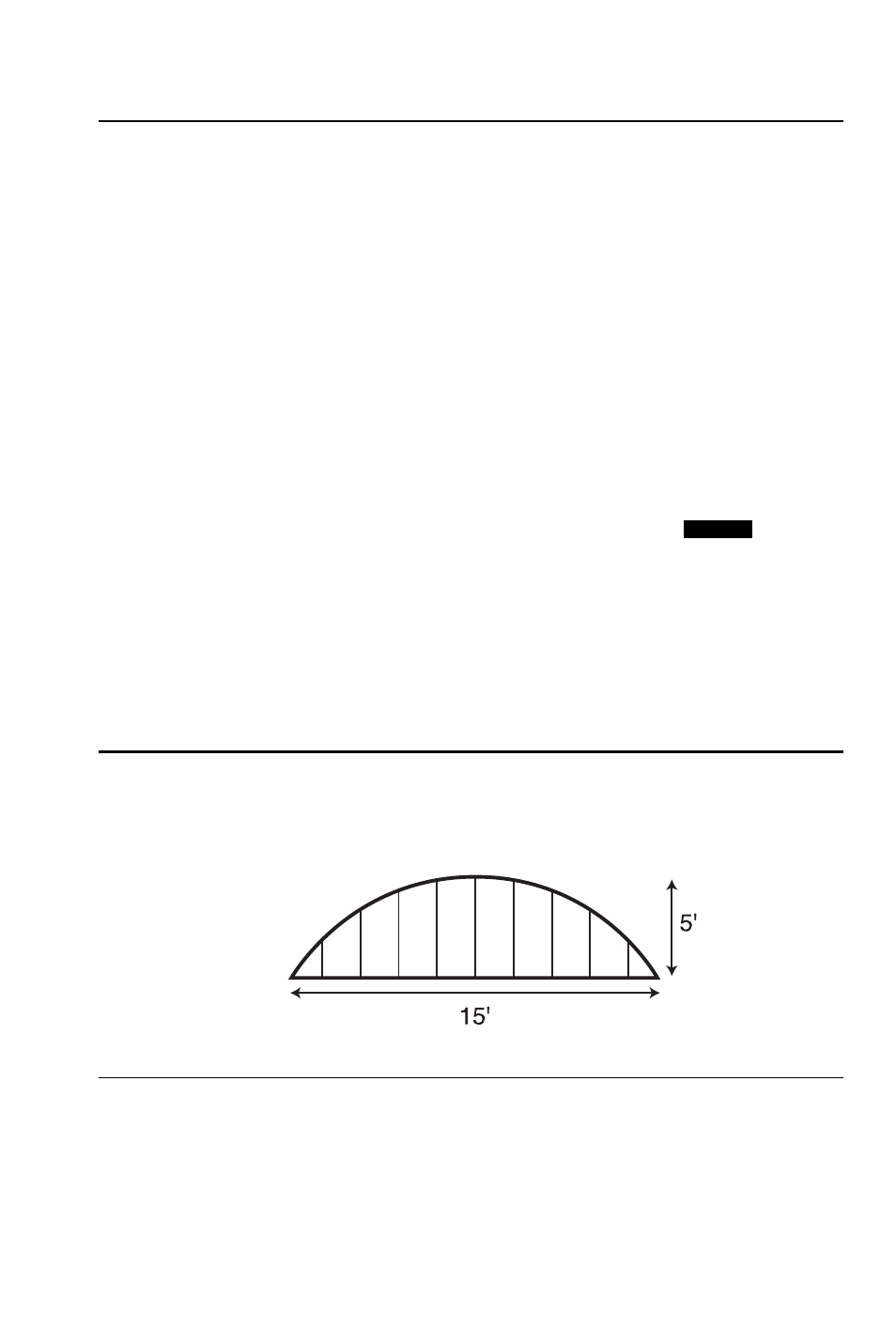

Arched Segment Walls —

Chord Length and

Segment Height Known

You’re building a circular or arched segment wall. Given a chord length of
15 Feet and a segment height of 5 Feet, find all arc values and “inside”
arched segment wall lengths. The On-center spacing is 16 Inches.

KEYSTROKE

DISPLAY

1. Change arched walls preference setting to “inside” Arc:

З Я Я Я Я Я Я

AW outSidE

+

AW inSidE

o

0.

(Cont’d)

STORED

U

SER

S

G

UIDE

— 43
