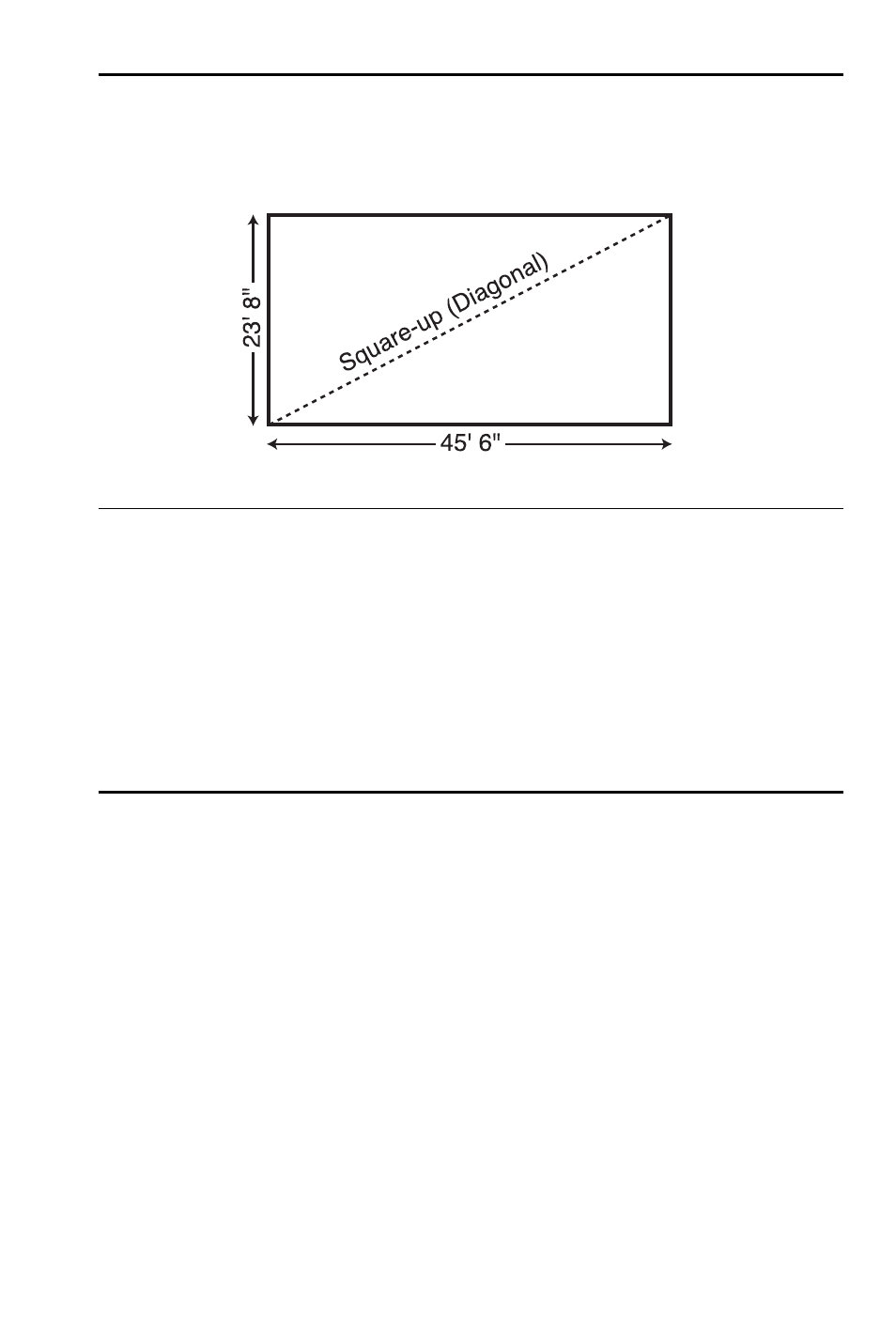

Squaring-up a Foundation
A concrete foundation measures 45 Feet 6 Inches by 23 Feet
8 Inches. Find the diagonal measurement (square-up) to ensure
the form is perfectly square.
KEYSTROKE
DISPLAY
1. Enter sides as rise/run:
o o
0.
2 3 f 8 i r
RISE 23
FEET
8
INCH
4 5 f 6 i R
RUN 45
FEET
6
INCH
2. Find the square-up (diagonal):
d
DIAG 51
FEET
3-7/16
INCH
Alternative Method using
l
and
W
keys (
NOT AVAILABLE ON
TRIG MODEL
#4080):
1. Enter sides as length and width:
o o
0.
2 3 f 8 i l
LNTH 23
FEET
8
INCH
4 5 f 6 i W
WDTH 45
FEET
6
INCH
2. Find the square-up (diagonal):
W W
SQUP 51
FEET
3-7/16
INCH
