INSTALLATION INSTRUCTIONS
1010 Instructions 9-30-14.doc
8 of 8

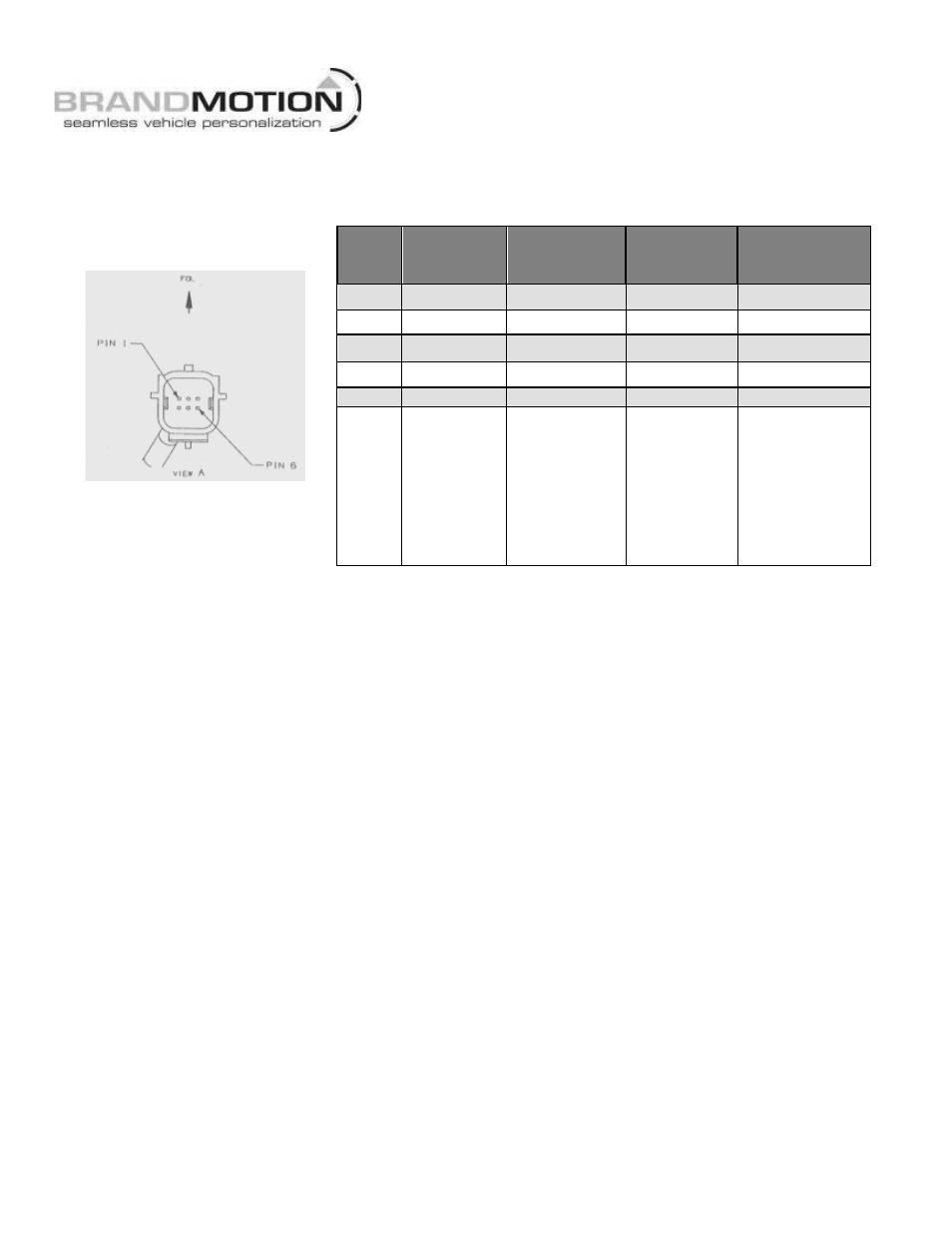

Camera, Chassis, and Mirror Harness Pinouts
(Reference only)
PIN # FUNCTION
CAMERA
HARNESS
COLOR
CHASSIS
HARNESS
COLOR
MIRROR
HARNESS
COLOR
1-A
Video (+)
White
White
White
2-B
Shield
Blue
Blue
White
3-C
Reverse
Green
Green
Green
4-D
Video (-)
Brown
Brown
Brown
5-E
Ground
Black
Black
Black
6-F
Ignition (+)
Red
Red
Pink
