Cable List

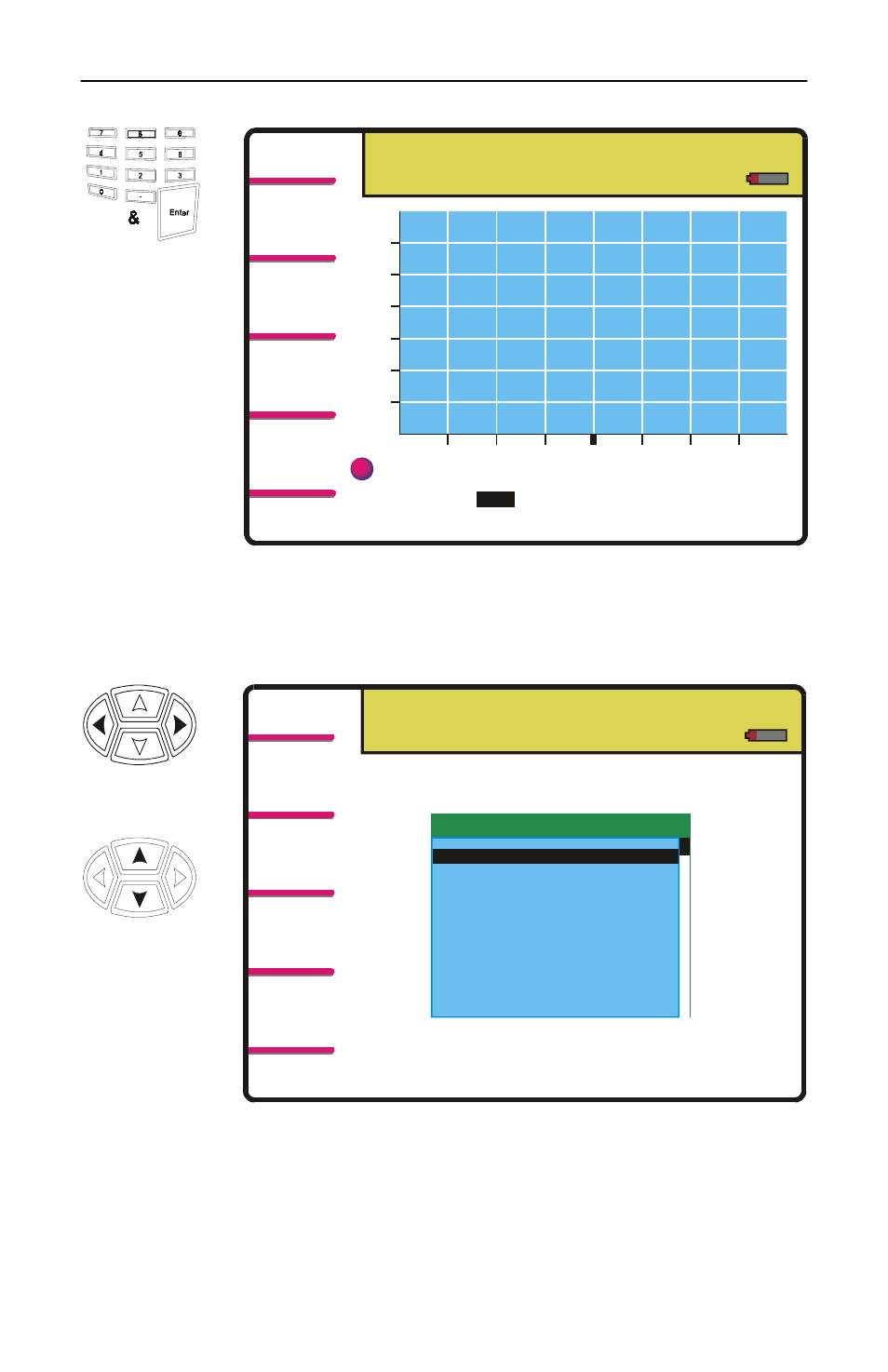

The cable list pop-up menu contains cable presets.
Using a preset is quick, easy, and sets test parameters
while eliminating a possible source of operator error.
Enter a new
value
0.0 Meters 18.2
Fault Location Mode
Vel. Prop.: 0.8800 Cable List: Custom
Loss:
dB/m 0.262
99.99
1.00
VSWR
Distance
Scale
Limit
Line
Smooth
Low
Cbl Type
Scroll to
Cable Type
Display the
cable list
and select a
cable
Fault Location Mode
Distance
Scale
Limit
Line
Smooth
Low
Cbl Type
Type Vp@1Ghz Loss
5062
5088
5092
5128
5228
5328
5438
FSJ1-50A
0.8200
0.8800
0.8200
0.8800
0.8800
0.8800
0.8800
0.8400
0.1447
0.1047
0.1089
0.0745
0.0420
0.0312
0.0259
0.1968
