4. Press the LIMIT key.

5. Press the VALUE key.

Note:

The cursor will blink next to off.

6. Enter the desired value using the numeric key-

pad or change the value using the UP/DOWN
arrow keys.

7. Press the ENTER key.

Note:

Pass or Fail will be displayed, a tone

will be heard for fail if audio is enabled.

Using a Trace as the Limit
The trace used for the limit must be saved. The cur-
rent antenna test can be running or start it after the
limit test is set up.

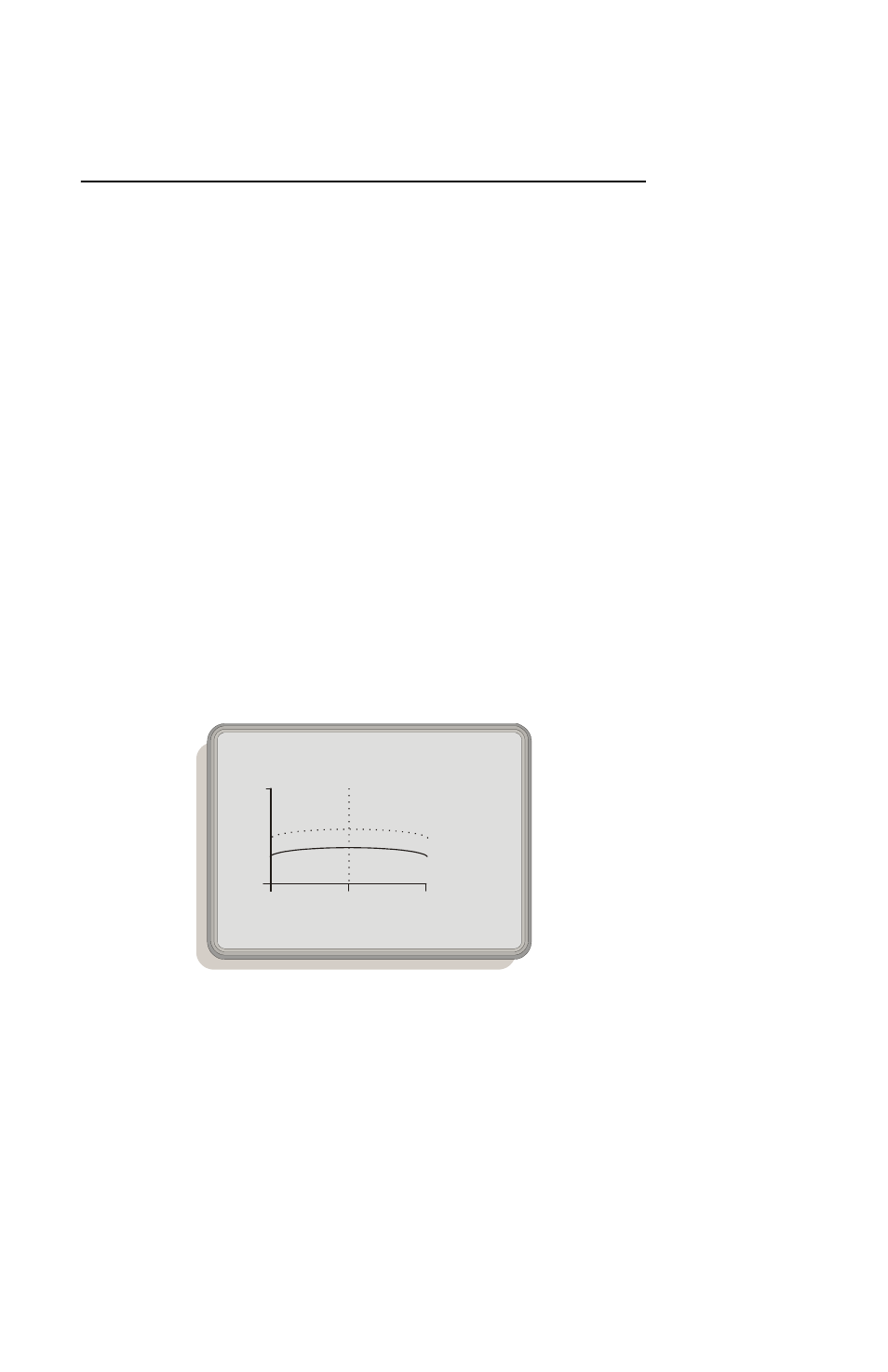

Figure 12 Dotted Outline of Limit Trace

1. Press the MENU key.
2. Press the MEAS MATCH key.
3. Press the SWEPT FREQ key.
4. Press the LIMIT key.
5. Press the TRACE - > LIMIT key.

AMPS

TxRx

Mobile

Meas
Match

Field
Str

Util

Test

VSWR

2.0

1.0

824.01

MHz

893.97

1.35

858.27 MHz

PASS
