Chapter 5 Additional Features
Limit Lines
The limit line helps to set off those parts of a trace that are outside of the accep-
tance (limit) values. It appears as a horizontal line at the limit line value.
An acceptance limit line can be set to help visualize what part of the measure-
ment trace is not acceptable. The part of the trace that is not acceptable will dis-
play in red. To view the limit line, the limit test must be ON.
Note: This feature is available only in the Measure Match mode and
the Fault Location mode.

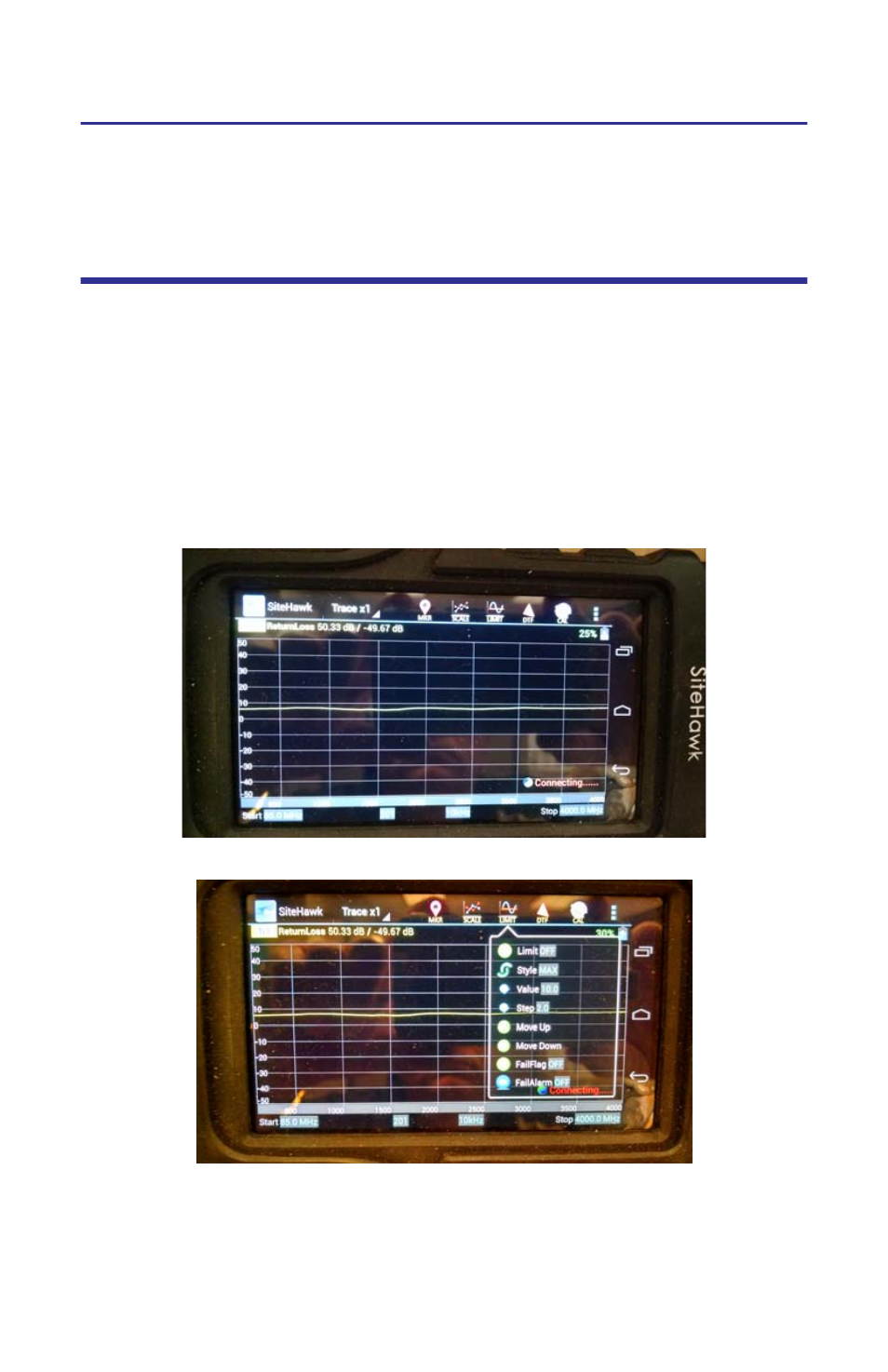

1. Press Limit icon.
2. Select Limit Options from the drop down menu.
Limit (On/Off)
Click to open or close the limit line.
