9

REPLACEMENT KITS

The following five kits contain replacement parts for

the Bendix

®

XVision

®

Night Vision System. Each of the

replacement kits can be ordered through Bendix.

For instructions on installing replacement parts, see the

appropriate section of

Servicing the XVision System,

beginning on Page 10.

AIMING ADJUSTER REPLACEMENT KIT (PIECE

NO. 5010079)

The IR camera bracket can only be ordered as a component

of the IR camera bracket kit. However, the components

that attach to the IR camera bracket to aim and adjust the

IR camera can each be ordered in the aiming adjuster

replacement kit . The kit includes the items below.

Standoff pivot assembly (QTY 1) – fastens to the IR

camera standoff base with a maximum torque of 16 in-lbs.

Standoff base (QTY 1) – fastens to the IR camera bracket

with #10 Plastite

®

Hex

®

flange head screw and lockwasher

with a maximum torque of 18-20 in-lbs.

Aiming adjusters (QTY 2) – latch the IR camera into

position on the IR camera bracket and allow the IR

camera forward Field of Vision (FOV) to be adjusted

horizontally and/or vertically. The adjustment screw

head(s) accommodate an E8 external Torx

®

or a T15

internal Torx

®

tool. (The aiming adjusters are fastened to

the IR camera bracket and torqued to 18 in-lbs. with four

#8-32

Hex

®

/Torx

®

screws.)

WINDOW REPLACEMENT KIT (PIECE NO.

5010192)

The window replacement kit includes one replacement IR

camera window, o-ring and locking pin. See Figure 16.

HEATER REPLACEMENT KIT (PIECE NO.

5010193)

The heater replacement kit includes one replacement

IR camera heater and locking pin. See Figure 16.

COMBINER MIRROR REPLACEMENT KIT

(PIECE NO. 5010190)

The combiner mirror replacement kit includes one

replacement combiner. See Figures 17 & 28.

FOLD MIRROR REPLACEMENT KIT (PIECE NO.

5010189)

The fold mirror replacement kit contains one replacement

fold mirror. See Figures 17 & 29.

Camera

Window

Camera

Heater

O-ring

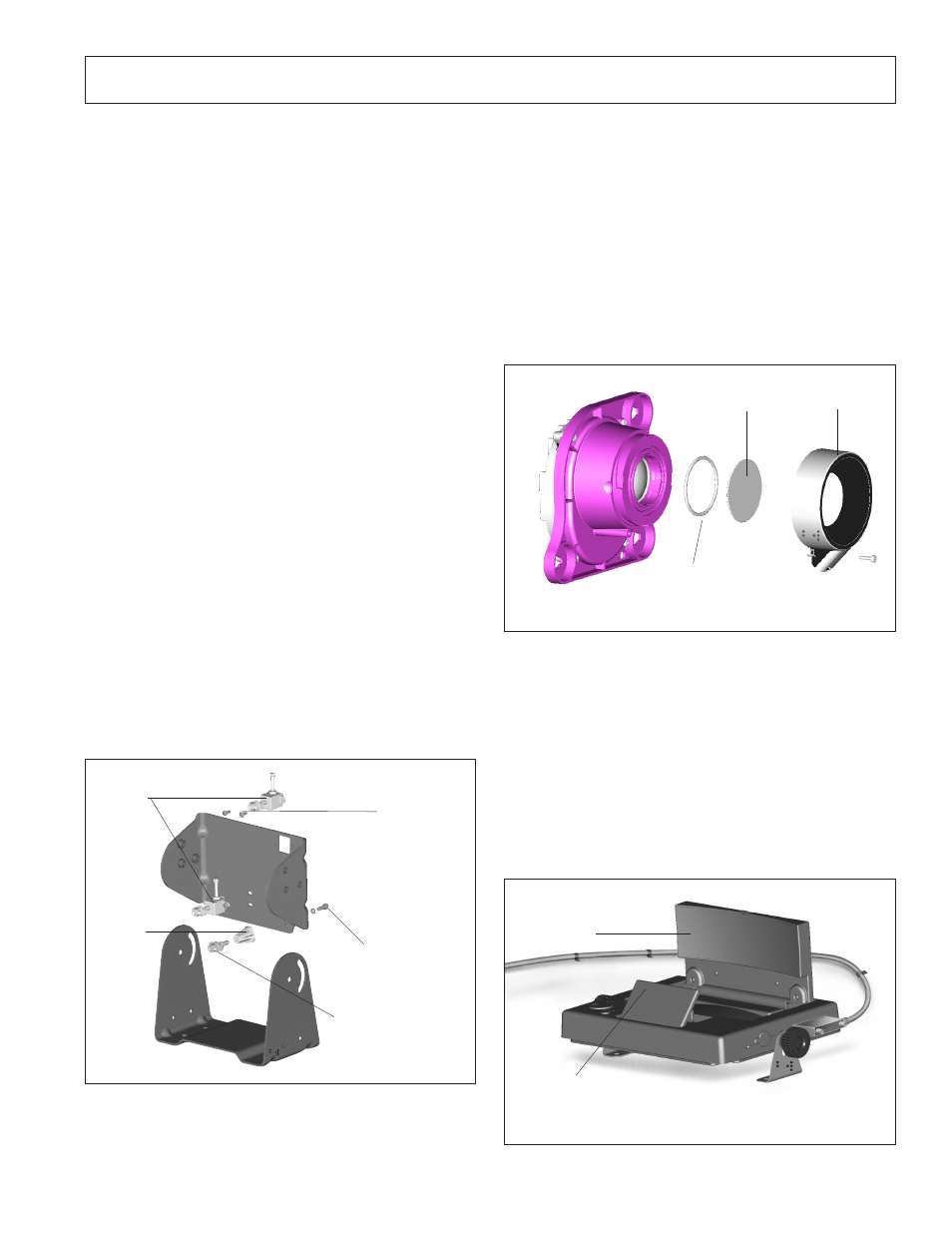

FIGURE 16 - IR CAMERA AND CAMERA HEATER

FIGURE 17 - COMBINER AND FOLD MIRROR

Fold Mirror

Combiner

FIGURE 15 - AIMING ADJUSTER REPLACEMENT KIT

Standoff Pivot
Assembly
(16 in-lbs.)

Standoff

Base

Aiming

Adjusters

#8-32
Hex

®

/ Torx

®

(18

in-lbs.)

#10 Plastite

®

Hex

®

flange with lock
washer
(18-20 in-lbs.)

IR Camera

Locking

Pin

Parts/kits listed are now obsolete and are no longer serviceable through Bendix.
