NOTE: Do not tamper with or adjust any

factory-installed screws while aiming the camera.

Only turn the vertical aiming adjuster.

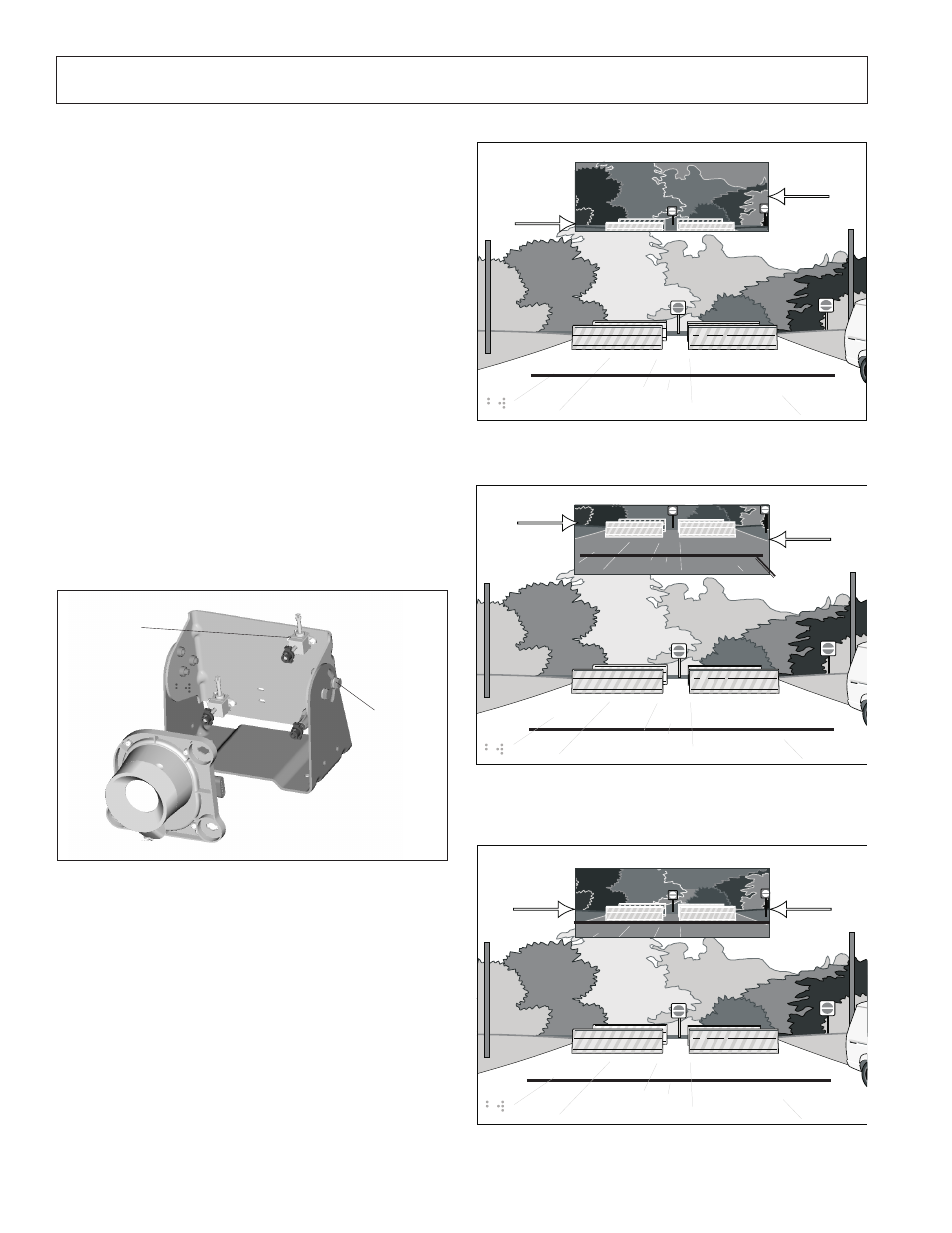

FIGURE 39 - VERTICAL AIMING ADJUSTER

FIGURE 42 - IR CAMERA AIMED CORRECTLY

Combiner Image

Driver’s View

Horizon

Center of
Combiner

Line 200 ft. from Vehicle

200 ft. line

FIGURE 40 - IR CAMERA AIMED TOO HIGH

Combiner Image

Driver’s View

Line 200 ft. from Vehicle

Horizon

Center of
Combiner

FIGURE 41 - IR CAMERA AIMED TOO LOW

Combiner Image

Driver’s View

Horizon

Center of
Combiner

Line 200 ft. from Vehicle

200 ft. line

VERTICAL AIMING AND ADJUSTING

The virtual image should be aligned vertically so that the

horizon appears in the lower one-half to one-third of the

combiner. Keeping the image at this adjustment should

provide a view of the road when the vehicle is driven up

and down hills.

The vertical aiming adjusters can accommodate

approximately ±4 degrees of movement. If the IR camera

needs more than 4 degrees of vertical movement the IR

camera bracket will need to be adjusted. Before changing

the vertical aiming adjuster, make sure the 5/16 bolts of the

IR camera bracket are tightened to 90-100 in.-lbs.
1. Using Figures 39 - 42 and a T15 Torx wrench, adjust

the angle of the IR camera as needed.

NOTE: Two turns of the vertical adjuster is equal to

one degree of IR camera movement.

NOTE: It is recommended that the IR camera

adjusters be aimed to view approximately 200 ft

(61m) in front of the vehicle. Any thermal objects

closer than 200 feet will already be illuminated by

the low beam headlamps.

Vertical

Aiming

Adjuster

5/16 Bolts

Tighten to

90-100 in-lbs.

Parts/kits listed are now obsolete and are no longer serviceable through Bendix.
