HARNESS KIT (PIECE NO. 5010083)
The harness kit includes:
IR Camera Harness (piece no. 5010246, service piece
no. 801156) – The IR camera harness is approximately
three feet long and has three connectors. The 8-pin
connector connects to the display harness, the 2-pin
connector connects to the IR camera window heater, and
the 6-pin connector connects to the IR camera power and
video. See Figure 8 and Table 1 below.
Display Harnesses (CB style: piece no. 5010259,
service piece no. 801151; Friction Hinge: piece no.
5010263, service piece no. 801155) – The harness kit
includes two display harnesses, one for CB style mounts
and one for the friction hinge mounts. The harness for the
CB style mounts exits toward the back of the display, and
the harness for the friction hinge mount exits toward the
front of the display. Both harnesses are three feet long.
When installed, the display harness should be secured
with a cable tie every three inches.
Both display harnesses have three connectors. The
25-pin connector connects to the display, the 3-pin
connector connects to the vehicle harness, and the
8-pin connector connects to the IR camera harness.
See Figure 9 and Table 2.

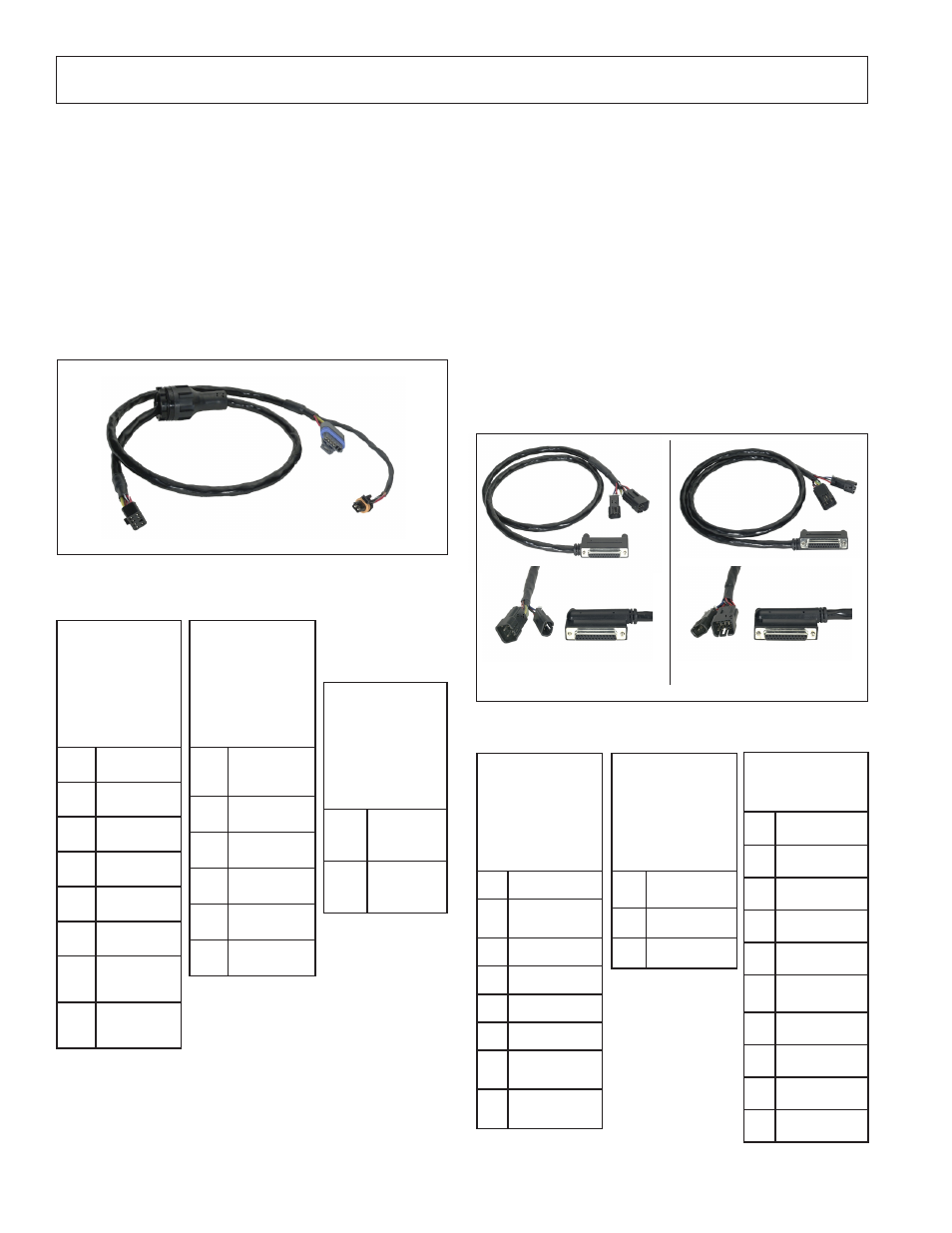

FIGURE 8 - IR CAMERA HARNESS
Display Harness
CB Mounts
Display Harness
Friction Hinge Mount
FIGURE 9 - DISPLAY HARNESSES
TABLE 1 - IR CAMERA HARNESS PIN OUTS
Delphi Packard
Connector
8 contacts
Connector
P/N 12045688
Terminal
P/N 12059894
A
IR Camera +
B
IR Camera
Ground
C
Video Low
D
Video High
E
Video Drain
F
Not Used
G
Window
Heater -
H
Window Heater
+
Delphi Packard
Connector
3 contacts
Connector
P/N 12047782
Terminal
P/N 12059894
A
Vehicle ign. +12V
B
Vehicle Ground
C
Headlamp Active
D Subminiature
25 Contacts
2
Vehicle Ground
3
Video Low
4
Video High
11
Headlamp Active
13
Vehicle ign. +12V
14
IR Camera Ground
15
Window Heater -
16
Video Drain
24
Window Heater +
25
IR Camera +
TABLE 2 - DISPLAY HARNESS PIN OUTS
Delphi Packard
Connector
8 contacts
Connector
P/N 12047886
Terminal
P/N 12047767
A
IR Camera +
B
IR Camera -
C
Video Low
D
Video High
E
Video Drain
F
Not Used
G
Window
Heater -
H
Window
Heater +
Delphi Packard
Connector
6 contacts
Connector
P/N 12162856
Terminal
P/N 12124075
A
IR Camera
+
B
IR Camera -
C
Video Low
D
Video High
E
Plug
F
Plug
Delphi Packard
Connector
2 contacts
Connector
P/N 12162852
Terminal
P/N 12124075
A
Window
Heater +
B
Window
Heater -
Parts/kits listed are now obsolete and are no longer serviceable through Bendix.
