Page 7
7
Vehicle Harness (piece no. 5010260, service piece no.
801157) – The vehicle harness is approximately 12 feet
long and provides power to the Bendix
®
XVision
®
Night
Vision System. The harness is made of a twisted tri-
wire, which needs to be fused to the vehicle ignition and
headlamps. The harness has one 3-pin connector that
connects to the display harness.
The vehicle harness is not designed to be mounted
externally. After the harness is routed and secured with
cable ties, the excess wire should be removed and the fuse
holders installed. See Figure 10 and Table 3.
Jumper Harness (piece no. 5010441, service piece no.
801152) – The jumper harness acts as an “extension cord”
when the display and IR camera are mounted more than
six feet apart. The harness has two 8-pin connectors, one
connects directly to the IR camera harness and the other
to the display harness. The jumper harness is not designed
to be mounted externally. See Figure 11 and Table 4.

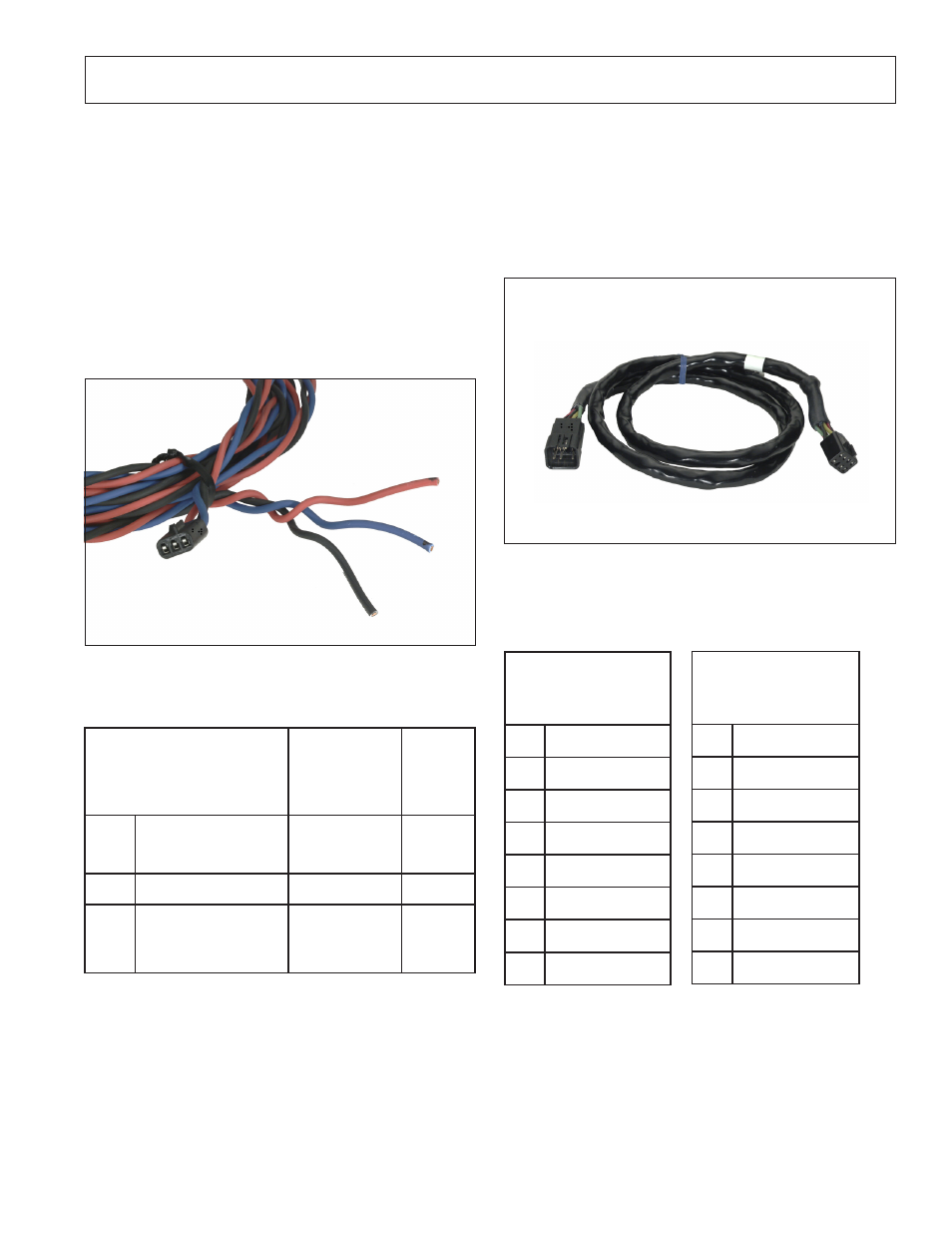

FIGURE 10 - VEHICLE HARNESS
TABLE 3 - VEHICLE HARNESS PIN OUTS
FIGURE 11 - JUMPER HARNESS
Harness Hardware – Two fuse holders, three butt splices, a
1 A fast open fuse and a 3 A slow open fuse are all included
in the harness kit. Labels are also included and must be
applied to the fuse holders after installation.
TABLE 4 - JUMPER HARNESS PIN OUTS
Delphi Packard Connector
3 Contacts Connector P/N
12047782
Terminal P/N 12059894
Fused
Color
A
Vehicle ignition
+12 Volts
3 A slow open
fuse (max.)
RED
B
Vehicle ground
BLACK
C
Headlamp active
1 A fast open
fuse
(max.)
BLUE
Delphi Packard Connector
8 contacts
Connector P/N
12047886Terminal P/N
12047767
A
IR Camera +
B
IR Camera -
C
Video Low
D
Video High
E
Video Drain
F
Not Used
G
Window Heater -
H
Window Heater +
Delphi Packard Connector
8 contacts
Connector P/N 12045688
Terminal P/N 12059894
A
IR Camera +
B
IR Camera Ground
C
Video Low
D
Video High
E
Video Drain
F
Not Used
G
Window Heater -
H
Window Heater +
Parts/kits listed are now obsolete and are no longer serviceable through Bendix.
